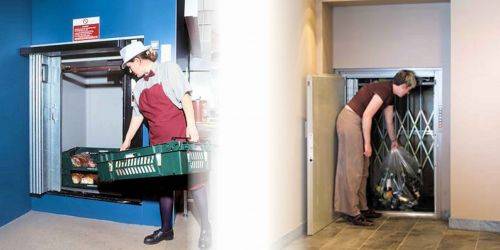

Trolley Lift (small goods lift) is the ideal solution for middle range loads, providing a convenient and fast way to transport trolleys, goods, barrels, refuse and general bulky items without manual handling. The Trolley Lift can be sized according to trolley dimensions with entrance points generally situated at floor level.

The Gartec Trolley Lift uses a galvanized structure supporting frame, erected in a few days with minimal building works on site, and no loadbearing shaft is required. The interlocking entrances and double guiderails put safety first, and multiple entrance points on each floor offer convenience of access when moving goods into the lift.

Features:

  • Up to six floors.
  • Up to 18 entrance points.
  • Load rated to 250 kg or 300 kg.
  • Hinged door, concertina shutter or picket gate.
  • Interlocked entrances.
  • Galvanized structure supported frame.

General information

Uniclass

Ss_80_50_60_26 Electric passenger and goods-passenger lift systemsPrimary

CAWS

X12/110 Vertical lifting platform systems

Specification data - Electric passenger and goods-passenger lift systems

Product Reference

Gartec Trolley Lift - 250 C

250 kg rated load, concertina gate, 1000 x 1000 x 1200 mm (w x d x h) car.

Gartec Trolley Lift - 250 CP

250 kg rated load, concertina gate with picket gate, 1000 x 950 x 1175 mm (w x d x h) car.

Gartec Trolley Lift - 250 H

250 kg rated load, hinged door, 1000 x 1000 x 1200 mm (w x d x h) car.

Gartec Trolley Lift - 250 HP

250 kg rated load, hinged door with picket gate, 1000 x 950 x 1175 mm (w x d x h) car.

Gartec Trolley Lift - 300 C

300 kg rated load, concertina gate, 1000 x 1000 x 1800 mm (w x d x h) car.

Gartec Trolley Lift - 300 CP

300 kg rated load, concertina gate with picket gate, 1000 x 950 x 1775 mm (w x d x h) car.

Gartec Trolley Lift - 300 H

300 kg rated load, hinged door, 1000 x 1000 x 1800 mm (w x d x h) car.

Gartec Trolley Lift - 300 HP

300 kg rated load, hinged door with picket gate, 1000 x 950 x 1690 mm (w x d x h) car.

Door arrangement

As drawing

Insert reference, available up to two sides per floor.

Finish

-

Car

Grey baked enamel

Standard.

Stainless steel

Doors

Not applicable

For concertina gates.

Grey baked enamel

Standard.

Stainless steel

Accessories

Insert requirements, contact manufacturer for options.

Standard product features

Shaft size:

1320 x 1320 mm (w x h).

Entrance size (w x h):

  • 250 C: 900 x 1200 mm.
  • 250 CP and 250 HP: 770 x 1090 mm.
  • 250 H: 900 x 1200 mm.
  • 300 C: 900 x 1800 mm.
  • 300 CP and 300 HP: 770 x 1690 mm.
  • 300 H: 900 x 1800 mm.

Pit depth:

  • 250 C and 250 H: 150 mm.
  • 250 CP and 250 HP: 175 mm.
  • 300 kg models: 600 mm.

Head room:

  • 250 kg models: 2600 mm.
  • 300 kg models: 3000 mm.

Technical properties:

  • Drive system: Motor winding unit with counter balance drive, located at top.
  • Rated speed (maximum): 0.17 m/s.
  • Controls: Automatic call and send at each entrance.
  • Technical compliance: European machine directive 2006/42/EC.
  • Number of stops (maximum): Six.
  • Number of doors (maximum): Eighteen, two per floor.
  • Power: Three-phase, 415 V, 50 Hz, 16 A isolator.
  • Electrical protection: RCD with 240 V.
