Description

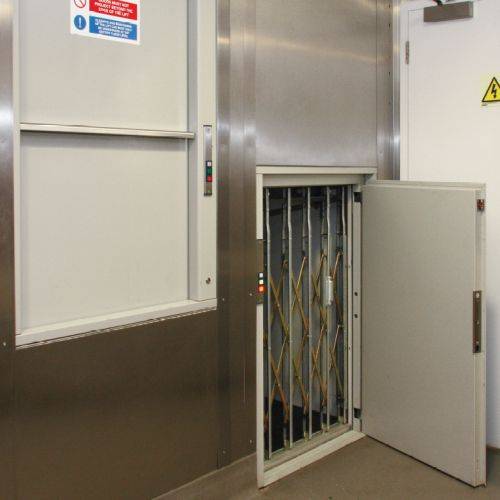

The Gartec Service Lift (dumb waiter) is a small-load solution for transporting everything from documents, food and laundry to goods, equipment and small trolleys. They are commonly used in hotels, restaurants and pubs, but the versatility of these lifts make them ideal for many settings where loads of up to 100 kg need transporting between floors.

It uses a galvanized structure supporting frame which is erected quickly with minimal building works on site and no loadbearing shaft. A counter balance drive system makes the Gartec Service Lift more energy-efficient without a reduction in power. The lift features safety locks on the doors, and the car can be fitted with adjustable shelving or with fixed, heated shelving if desired.

The Dumb Waiter is available in three main versions: the standard range (offering larger capacity), the double-decker (with banks of two service lifts in one shaft) and the low headroom/ bottom drive range (with base-mounted motor). Double-decker versions of the service lift are suited to laboratory lifts or food service lifts where contamination or temperature needs controlling.

Features:

  • Up to 12 floors.
  • Up to 24 entrance points.
  • Internal or external installation.
  • Load rated 50 or 100 kg.
  • Galvanized steel supporting frame.
  • ‘Rise and fall’ shutters or hinged doors.
  • Doors at serving/ counter or floor height.
  • Adjustable shelving options.

Approvals/ accreditations:

European machine directive 2006/42/EC.

General information

Uniclass

Ss_80_50_60_26 Electric passenger and goods-passenger lift systemsPrimary

CAWS

X12/110 Vertical lifting platform systems

Specification data - Electric passenger and goods-passenger lift systems

Product Reference

Gartec Service Lift / Dumb Waiter

Type

Bottom drive

Guidance for specification option:

Base mounted motor.

Double-decker

Guidance for specification option:

Two service lifts in one shaft.

Standard

Guidance for specification option:

Larger capacity.

Car

-

Height

Guidance for specification option:

Insert requirement; consult manufacturer's literature for information.

Rated load

50 kg

100 kg

Finish

Grey baked enamel

Guidance for specification option:

Standard.

Stainless steel

Shelving

Guidance for specification option:

Insert requirements.

Doors

-

Type

Collapsible gates

Guidance for specification option:

Floor level installation only.

Hinged doors

Rise and fall shutters

Arrangement

As drawing

Guidance for specification option:

Insert reference, available up to two sides per floor.

Finish

Grey baked enamel

Guidance for specification option:

Standard.

Stainless steel

Power

Single-phase, 240 V

Three-phase, 415 V

Accessories

Not required

Heater

Lift position indicators (with sound)

Standard product features

Travel height (maximum):

30 m.

Technical properties:

  • Drive system: Motor winding unit with counter balance drive.
  • Rated speed (maximum): 0.35 m/s.
  • Landing control: Automatic call and send at each entrance.
  • Number of stops (maximum): 12.
  • Number of doors (maximum): Two doors per floor.
  • Pit (maximum): 350 mm.
  • Control supply: 24 V.
  • Current: 50 Hz, 15 A isolator.
  • Electrical protection: RCD with 240 V.
  • Landing doors: Four hour fire rated with electro-mechanical locking.
