Galaxy Port

Application

Sport, fitness and leisure facilities, public institutions, airports, trade fairs and exhibitions, personnel access points for companies and offices.

Description

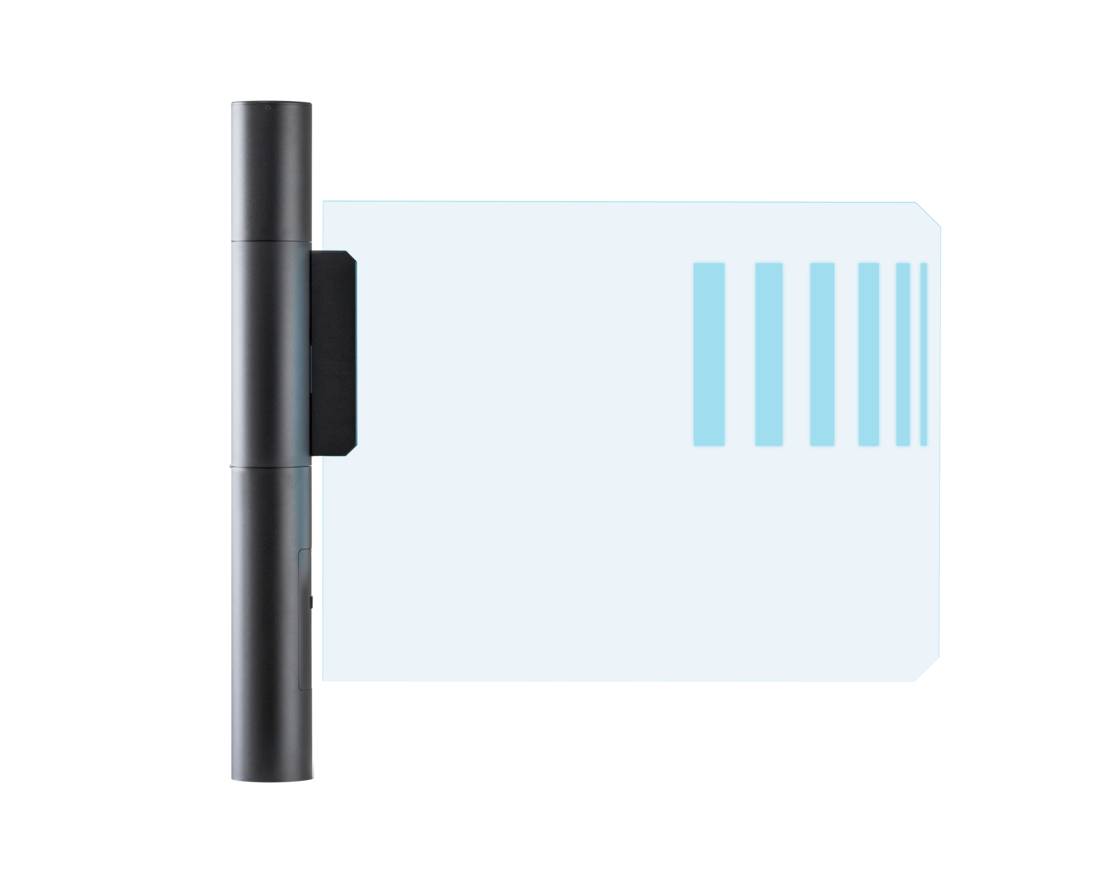

Swivel arm barrier for wheelchair-accessible access. Galaxy Port access points open in two directions, either using the control panel or an RFID reader, integrated into glass dome as preferred. The integrated sensor system detects the direction in which the toughened safety glass swivel arm needs to enable passage.

Features and benefits:

  • Toughened safety glass swivel arms for passages of up to 1200 mm.
  • LED glass dome with integrated RFID reader.
  • Sensor-controlled, two-way direction detection.

Application:

Sport, fitness and leisure facilities, public institutions, airports, trade fairs and exhibitions, personnel access points for companies and offices.

General information

Finish

Polished and brushed

Powder-coated, RAL

Insert colour requirement.

Features

LED glass dome with integrated RFID reader, sensor-controlled two-way direction detection

Material

Stainless steel, toughened safety glass

Size

1000 x 650 mm

700 x 1000 mm

1250 x 550 mm

500 x 1200 mm

Uniclass 2015

Pr_30_59_34_88 Stainless steel half-height turnstilesPrimary

CAWS

L20/490 Automatic doors

Specification data - Stainless steel half-height turnstiles

Product Reference

Galaxy Port

Type

Swivel arm

Rotation

Two-way direction

Control unit

Card reader, operating panel, button

Finish

Polished and brushed

Powder-coated, RAL

Insert colour requirement.

Swivel arm height

500 mm

700 mm

1000 mm

1250 mm

Operating temperature

5–50°C

Weight

25 kg (without swivel arm)

Passage width

Insert requirement, available up to 1200 mm (dependent on arm height).

Passage rate

Up to ten people per minute

Accessories

None

Ceiling radar

Control program for external PC

Emergency open switch

External emergency open button

Galaxy box

Info screen

Monitoring sensor

Operating status indicator

Reader units

Release and alarm indicator

Remote control switch

Touchscreen panel

Web control panel

Standard product features

Material:

Stainless steel upright, with 8 mm-thick, toughened safety glass swivel arm.

IP rating:

IP20.

Electricity supply:

100–240 V, 50–60 Hz, 0.85 A.
