G410-EL Ballasted Roof System - Sarnavap 1000E & S-Felt T 300

Third party certifications:
  • BBA Agrément Certificate

    Certificate type

Sika Sarnafil

PVC-P single-ply membrane for adhered and ballasted warm roofs.

Jump to:
+44 (0)1707 394444 www.sarnafil.co.uk
Description

PVC-P single-ply membrane for adhered and ballasted warm roofs.

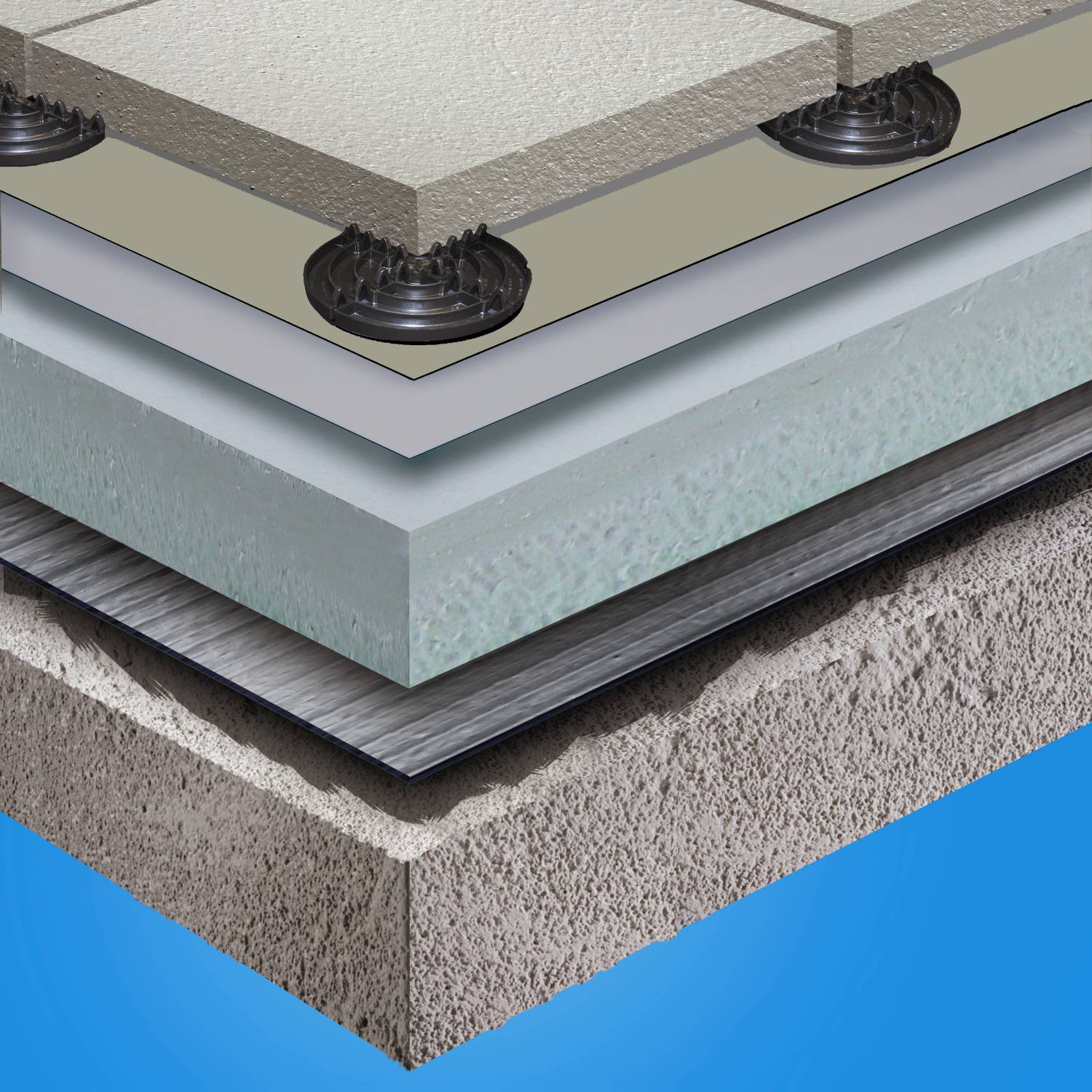

System includes:

  • Stone ballast/precast concrete flag surface protection (supplied by others).
  • S-Felt T 300 upper protective layer.
  • Sarnafil G410-EL waterproof membrane.
  • SarnaTherm G insulation.
  • Sarnavap 1000E vapour control layer.

- Upper protective layer:

A separation, levelling and protection layer made of polyester (PES).

- Waterproof membrane:

Sarnafil G membranes are manufactured using a state of the art extrusion coating process that eliminates shrinkage and plastic memory and produces a dynamically stable membrane. In the coating process, a glass fibre carrier is coated on both sides with liquid Plastisol, prior to the application of a lacquer coating on the upper surface and laser marking of the membrane surface for identification. The unique lacquer coating eliminates the need for biocides, provides the membrane with an easy to clean surface and prolongs the life of the membrane by reducing plasticiser loss.

The process enables between 2% and 5% of recycled material to be used in the production of new membranes.

- Insulation:

Rigid polyisocyanurate foam insulation boards to BS EN 13166; with mineral tissue facing. Available in uniform thickness or tapered.

- Vapour control layer:

A 0.20 mm thick, polyethylene based, vapour control layer. Sarnavap 1000E is manufactured from low density polyethylene, blended to produce a vapour control layer that is flexible when cold, resistant to chemicals and ageing and rot proof. It is suitable for use in most mechanically fastened systems using both Sarnafil PVC & FPO membranes. Not suitable for high humidity applications or under green roofs.

Performance:

Certified by BBA, in their opinion, to have a "life expectancy in excess of 40 years" for exposed applications, with periodic maintenance as stated below.

A planned maintenance cycle, including inspections by the Certificate holder at minimum intervals of five years, should be introduced if an extended service life is required. The Certificate holder can advise on methods of extending the service life. This could include the use of thicker membranes, specific maintenance requirements or localised replacement and repair.

Should the maintenance cycle not be followed Sarnafil G/S membranes have been given, by the BBA in their opinion, a life expectancy of "in excess of 35 years".

Installation:

- Upper protective layer:

Loose laid according to the valid installation instructions for Sarnafil®

If necessary, S-Felt T 300 can be tacked to the substrate with Sarnacol® 2170 or Sarnacol 2172. Adjoining sheets must overlap at least 100mm.

- Waterproof membrane:

In warm ballasted applications the G410-EL membrane is loose laid, with all overlapping joints hot air welded prior to the application of a protection/ filter fleece and the chosen ballast system.

Installation is carried out by Sarnafil trained contractors.

- Insulation:

SarnaTherm G can be attached to the substrate (deck or suitable vapour control layer) by mechanically fastening with SBT tubes and SBIW-70x70 pressure plates. SarnaTherm G can be loose laid if sufficient ballast weight is provided immediately to resist wind uplift pressures.

A vapour control layer will be required when SarnaTherm G is used.

- Vapour control layer:

Loose laid over any smooth surface with all side and end laps overlapped a minimum 80 mm, then sealed with Sarnavap jointing tape. At parapets and upstands, Sarnavap must be carried up to the upper edge of the thermal insulation and sealed to the upstand/ penetration with SarnaVap jointing tape, to form an airtight seal. When installed vertically, Sarnavap must be mechanically fastened along its top edge.

If the surface is rough, a layer of Sarnafil Type T fleece should be used as cushioning layer.

General information
Features

All Sarnafil systems are subject to a project specific specification (including design against wind uplift) to be completed by Sika Sarnafil. Please contact your local Sarnafil Technical Adviser

WarrantyDescription

Sarnafil single point, insurance backed, guarantees provide cover for all Sarnafil products supplied by Sika and branded Sarnafil products supplied by Sarnafil Partner suppliers

Uniclass 2015
Single layer sheet warm roof covering systems (Ss_30_40_30_80)Primary
Specification data - Single layer sheet warm roof covering systems
Product Reference

G410-EL Ballasted Roof System - Sarnavap 1000E and S-Felt T 300

Upper protective layer

S-Felt T 300

Primer

Not required

Primer 110

Waterproof membrane -
Type

Sarnafil G410-EL

Thickness

1.5 mm

1.8 mm

Colour

Copper Patina Green

Lead grey

Light grey

White RAL 9016 SR (solar reflective)

Attachment

Loose laid

Insulation -
Type

SarnaTherm G

SarnaTherm G Tapered

Attachment

Loose laid

Vapour control layer -
Type

Sarnavap 1000E

Thickness

Consult Sika Sarnafil for recommendations and details.

Attachment

Loose laid

Accessories

Double L rainwater outlets

G/S rainwater outlets

Primer 110

Sarnacol® 2170

Sarnacol® 2172

Sarnafil Constant Force post

Sarnafil heat weldable lightning conductor clips

Sarnafil Type T fleece

Sarnametal

Sarnaplast 2235

Sarnavap jointing tape

Standard product features

Upper protective layer:

- Surface:

Structured.

- Colour top/bottom surface:

White.

- Roll size (l x w):

50 x 2 m.

- Thickness:

1.3 mm.

- Roll weight:

30 kg.

- Reaction to fire to BS EN 13501-1:

E.

- Tensile strength:

  • Longitudinal: ≥ 300 N/ 50 mm.
  • Transversal: ≥ 350 N/ 50 mm.

Waterproof membrane:

- Width:

2.0 m.

- Length of roll:

20 m (15 m for 1.8 mm thick membrane).

- Weight:

  • 1.5 mm thick: 1.90 kg/m².
  • 1.8 mm thick: 2.30 kg/m².

Insulation:

  • Low thermal conductivity: 0.027 W/mK (thicknesses <80 mm), 0.026 W/mK (thicknesses from 80–120 mm) and 0.025 W/mK (thicknesses >120 mm).
  • Compressive strength >150 kPa at 10% deformation.
  • Typical Density of 32 kg/m³.
  • <5% smoke emission when tested to BS 5111-1.
  • CFC/ HCFC-free.
  • Zero ozone depletion potential (ODP).
  • Class O fire rating.

Vapour control layer:

- Material:

Low density polyethylene (LDPE).

- Dimensions:

  • Thickness: 0.20 mm.
  • Width: 5.0 m.
  • Roll width: 1.3 m.
  • Roll length: 25 m.

- Weight:

0.192 kg/m².

- Colour:

Blue (opaque).

- Performance:

Water vapour resistance: >800 MNs/g.

Product Options

Waterproof membrane:

- Colour:

Available in standard colours. Other Colours may be available, subject to a lead time and minimum order quantities.

Accessories:

  • Double L rainwater outlets: Insulated outlets.
  • G/S rainwater outlets: Injection moulded PVC outlets and scuppers.
  • Primer 110: Surface primer creating a key for Sarnaplast 2235.
  • Sarnacol® 2170 or Sarnacol® 2172 upper protective layer adhesive.
  • Sarnafil Constant Force post: Cable-based fall arrest and restraint system.
  • Sarnafil Double L: High drainage capacity insulated rainwater outlet.
  • Sarnafil heat weldable lightning conductor clips.
  • Sarnafil Type T fleece: For use with Sarnavap 1000E VCL.
  • Sarnametal: Galvanized metal sheet with Sarnafil G410-12EL factory laminated to it, for use in prefabricate flashings and drip details.
  • Sarnaplast 2235: Elastic one-part silicone sealant for sealing edges and perimeter upstand flashing terminations.
  • Sarnavap jointing tape: For use with Sarnavap 1000E VCL.
