G-Rail 7400 Roman Shade System

Description

G-Rail 7400 Roman Shade System is based on profile 7400 and is designed for use with medium to heavy weight blinds. Tape guides allow the system to operate evenly and the blind can be positioned at any height. Shades can be removed to facilitate cleaning without removing the hardware.

The blinds are ceiling mounted with fixing clips or wall mounted on brackets.

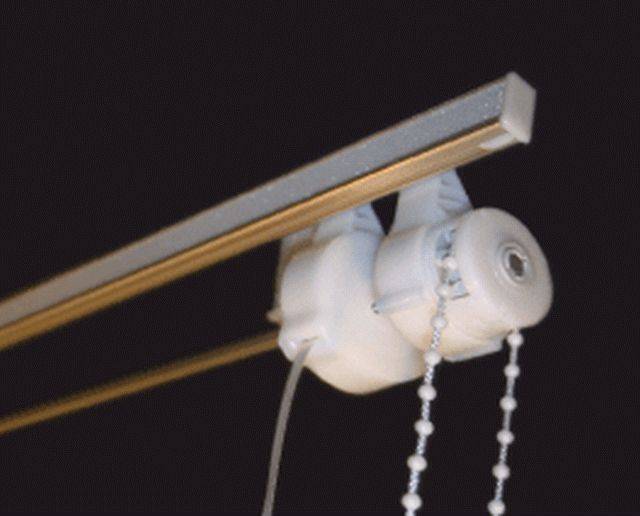

Standard blinds are chain operated. Chain guides are supplied in right and left hand versions.

Bay and Bow Window Blinds:

The system combinations can be linked to one chain guide to a maximum of four U-joints. Tape guides have to be positioned at either side of each joint.

Maximum weight/ angle:

  • Chain guide Type 7430 (direct drive 1:1): 1.kg/ 45°.
  • Chain guide Type 7431 (reduction drive 1:5): kg/ 45°.
  • Maximum corners: Four.

General information

Uniclass 2015

Pr_30_59_07_66 Pleated blindsPrimary

CAWS

N10/240 Blinds

Specification data - Pleated blinds

Product Reference

G-Rail 7430 Roman Blind System

G-Rail 7431 Roman Blind System

Finish/ Colour

White RAL 9010 powder coated

Satin silver anodized

Fixing

To ceiling

To wall

Operation

Not required

Corded

Crank rod

Accessories

See 'Options and insert requirements.

Product Options

Accessories:

  • Ref 1210-1.4: Cord 1.4 mm diameter.
  • Ref 7402: Guide.
  • Ref 7403: Cord joint.
  • Ref 7450: Ceiling bracket.
  • Ref 7404: Cord stop.
  • Ref 7405: Cord stop.
  • Ref 7406: Guide.
  • Ref 7407: Guide.
  • Ref 7421: 6 mm Tape.
  • Ref 7423: Buckle.
  • Ref 7426: Tape clip.
  • Ref 7428: Telescopic slider 8 mm diameter.
  • Ref 7429: Telescopic slider 12 mm diameter.
  • Ref 7451: Wall bracket.
  • Ref 7453: End cap.
  • Ref 7480-10-10: Transparent tape with ring 10 x 6 mm.
  • Ref 7480/106: 10 mm transparent ring.
  • Ref 7480/138: 13 mm transparent ring.
  • Ref 7480-138-10: Transparent tape with ring 13 x 8 mm.
  • Ref 7481/10: ‘S’ hook.
  • Ref 7490/ 206R: Counter weight.
  • Ref 7491/ N/3: Aluminium insert 3 mm.
  • Ref 7491/ N/5: Aluminium insert 5 mm.
  • Ref 7492/ N/08: Aluminium tube 8 mm.
  • Ref 7492/ N/12: Aluminium tube 12 mm.
  • Ref 7498/RVS/ 3: Stainless steel insert 3 mm.
  • Ref 7499-4-P4-4: Clear insert.
