Description

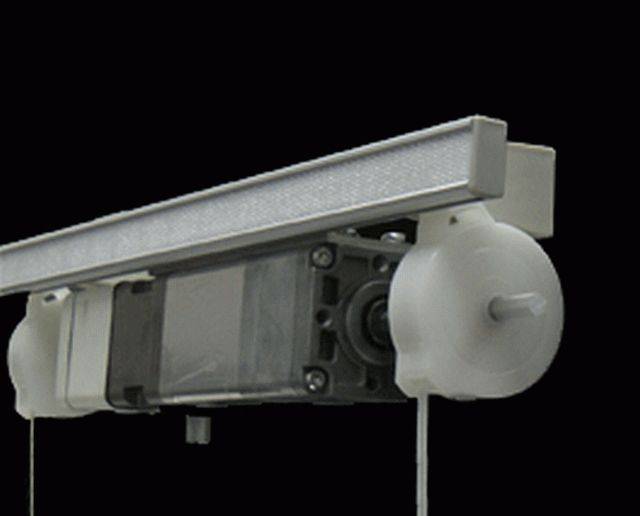

An electrically operated Roman blind system.

Features and benefits:

  • Two motor options designed for medium and heavy-weight fabric covers.
  • The smooth running tape guides ensure the blind remains perfectly level at all times.
  • Intermediate stopping of the blind at any desired height with the press of a button or switch.
  • The system is available as 230V or 110V and is equipped with an automatic top and bottom limit switch.
  • Includes connection support to rail.
  • Fittings are available for bay windows.
  • Blind configurations that can be achieved using system include Austrian, Belgian, Greek, Roman, Swiss and Venetian.
  • Aluminium components are generally powder coated, finished in White RAL 9010.

General information
Specification data
Product Reference

G-Rail 7400-E-10 Electric Roman Blind System

G-Rail 7400-E-20 Electric Roman Blind System

Voltage

110V

230V

Control

Home Automation

Radio frequency

Switch

Fixing -
Fixing type

7450 ceiling bracket

7451 wall bracket

Colour

Brown

White

Accessories

Not required

1280-1 loop tape

2000-series side profile

For use with 2200, 2300, 2400, 2500 and 2600.

4700-series side profile

For use with 4700, 4701, 4702 and 4900.

7411 aluminium hexagonal profile

7425 U-joint

For 7411.

7426 transparent clip for tape

7428 telescopic glider

For use with 7492-08-N.

7429 telescopic glider

For use with 7492-12-N.

7440-300-10 tape guide and 3 m tape

White, with 7426 transparent clip.

7440-400-10 tape guide and 4 m tape

White, with 7426 transparent clip.

7440-550-10 tape guide and 5.5 m tape

White, with 7426 transparent clip.

7453 endcap

7480-106 transparent ring, 10 mm diameter

7480-138 transparent ring, 13 mm diameter

7490-203R counter-weight

20 x 3 mm, natural or white.

7490-206R counter-weight

20 x 6 mm, natural or white.

7491-5-N 5 mm diameter aluminium profile

7492-08-N 8 x 6 mm aluminium tube

7492-12-N 12 x 10 mm aluminium tube

7499-4-PH 4 mm transparent Plexiglas insert

Colour

Not required

Natural

White

Standard product features

Motor Size:

  • Ceiling mounted with 7450 bracket (h x d): 80 x 60 mm.
  • Wall mounted with 7451 bracket (h x d): 83 x 65 mm.

7400 Rail dimensions (w x h):

10 x 23 mm.

Angle mounting with telescopic gliders and side profiles:

  • Angle (maximum): 15°.
  • Weight (maximum): 6 kg (7400-E-10); 15 kg (7400-E-20).

Bay window mounting:

  • Angle (maximum): 45° per connector, 90° total.
  • Number of connections (maximum): Four.
  • Weight (maximum): 6 kg (7400-E-10); 15 kg (7400-E-20).

Product Options

Motor:

- G-Rail 7400-E-10 Electric Roman Blind System:

  • Load (maximum): 9 kg.
  • Includes connection plug and cable.

- G-Rail 7400-E-20 Electric Roman Blind System:

  • Load (maximum): 19 kg.
  • Includes connection plug (Hirschmann) and cable.

Bracket fixing centres:

  • Light-weight curtain: 700 mm.
  • Medium-weight curtain: 500 mm.
  • Heavy-weight curtain: 350 mm.

Control:

An extensive range of control options are available, including radio frequency, switch and home automation. Contact manufacturer for details.
