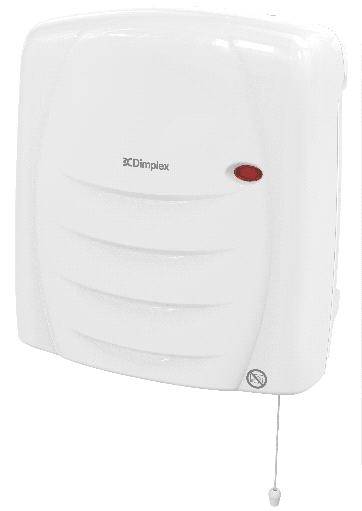

FX20IPE

Description

The FX20IPE is an IP24 rated fan heater for unrivalled versatility when it comes to installation.

This unique feature allows greater installation flexibility in bathroom locations. Combined with a sleek, modern look, the IP24 rated FX downflow heaters provide an ideal heating solution for almost any bathroom, en-suite or kitchen.

Features and benefits:

  • Energy saving factory-set 30 minute runback timer.
  • The heater can be manually switched off before the time period expires.
  • 2 kW maximum output.
  • Pull cord operation.
  • Neon indicator.
  • IPX4 rated.
  • Identical footprint to current FX20 models, meaning that retro-fitting an IPX4 model is simple.
  • 2kW or 1kW output selectable on installation.
  • CE and BEAB approved.

Not suitable for commercial or industrial applications.

General information

Uniclass 2015

Pr_70_60_36_74 Room heatersPrimary

CAWS

V90/590 Equipment

Specification data - Room heaters

Product Reference

FX20IPE

Standard product features

Size (w x h x d):

252 x 267 x 132 mm.

Colour/ Finish:

White.

Technical characteristics:

  • Weight: 1.4 kg.
  • Construction: Double insulated plastic case. Moulded in flame retardant self-extinguishing grade nylon.
  • Controls: Pull cord operation.
  • Heat output: 2 kW.
  • Heat selection: Off/ 1.0 kW/ 2.0 Kw (on installation).
  • Heat source: Electricity.
  • Insulation: Two upper keyhole slots are provided together with a third fixing hole to secure the heater to the wall. 2kW or 1kW heat output selectable upon installation.
  • Recommended mounting height: 1.8 m.
  • Ingress protection (IP) rating: IP24.
  • Location of heat output: Grille at the bottom.
  • BEAB Certified.
  • Electric supply: ~230–240V.
  • Element type: 2 kW stitched type with thermal fuse protection.
  • Safety cut out: Manually resettable thermal overload cut out and thermal fuselink.
  • Cable exit point: Middle or top.
