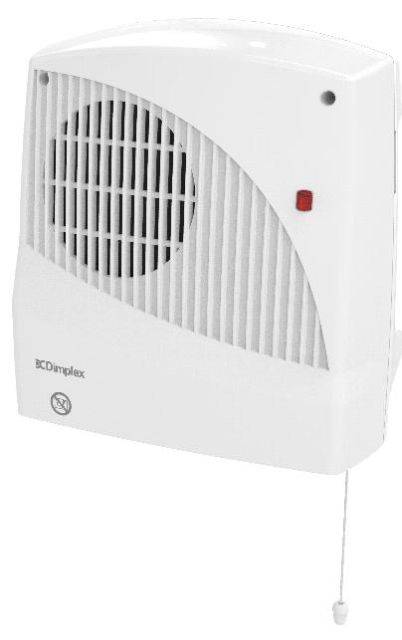

FX20E

Description

FX downflow fan heaters are the popular choice for heating bathrooms and en-suites as well as kitchens. The FX20E features an energy-saving electronic timer which automatically switches the heater off after a pre-set time period to prevent it being left on accidentally.

The powerful 2kW output ensures a fast warm-up, although 1kW output is selectable on installation for smaller rooms. All models have visual on/off indicator, full safety protection and are simple to install.

Features and benefits:

  • Factory-set energy saving 30-minute runback timer.
  • The heater can be manually switched off before the time period expires.
  • Neon indicator.
  • 2 kW maximum output.
  • Pull cord operation.
  • CE and BEAB certified.

General information

Uniclass 2015

Pr_70_60_36_74 Room heatersPrimary

CAWS

V90/590 Equipment

Specification data - Room heaters

Product Reference

FX20E

Standard product features

Size (w x h x d):

229 x 242 x 109 mm.

Colour/ Finish:

White.

Technical characteristics:

  • Weight: 1.1 kg.
  • Construction: Double insulated plastic case. Moulded in flame retardant self-extinguishing grade nylon.
  • Controls: Pull cord operation.
  • Heat output: 2 kW.
  • Heat selection: Off/ 1.0 kW/ 2.0 kW.
  • Heat source: Electricity.
  • Insulation: Two upper keyhole slots are provided together with a third fixing hole to secure the heater to the wall. 2 kW or 1 kW heat output selectable upon installation.
  • Recommended mounting height: 1.8 m.
  • Ingress protection (IP) rating: IPX2.
  • Location of heat output: Grille at the bottom.
  • BEAB Certified.
  • Electric supply: ~230–240V.
  • Element type: 2 kW stitched type with thermal fuse protection.
  • Safety cut out: Manually resettable thermal overload cut out and thermal fuse link.
  • Cable exit point: Middle or top.
