Description

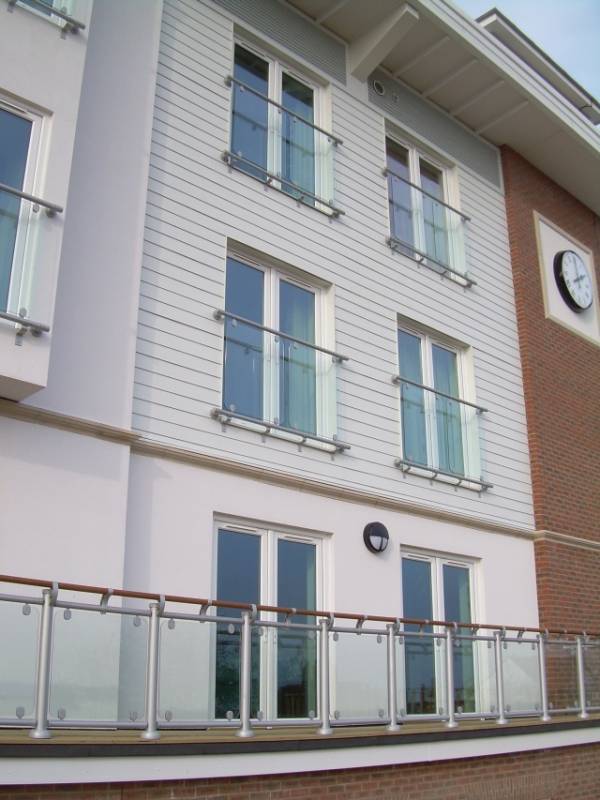

Balustrade system for commercial decks and balconies, including those subject to overcrowding. Combines aluminium newel posts and rails with zinc alloy brackets, hardwood handrail and glass infill panels.

Features and benefits:

  • Newel posts suitable for resin anchor fixing to concrete, or bolting to wood or steel structure.
  • Suitable for applications allowing free location of newel posts.
  • Withstands loadings of up to 1.5 kN/m (to BS 6399) when installed to manufacturer instructions.

General information
Material

Posts and rails: Aluminium 6060 T6

Brackets: Zinc alloy Zamac 3 (to BS 5338) powder coated FHN8328 silver (to BS 3900)

Glass panels: 8 mm-thick clear toughened glass (to BS EN 12150-2)

Handrails: Hardwood, unfinished

Uniclass 2015 Balustrade and guarding systems (Ss_25_60_05_05)
Specification data
Product Reference

Fusion – Commercial Outdoor Glass Balustrade

Infills

LD579

Large glass panel, 800 x 750 x 8 mm, with four fixing brackets.

LD584

Small glass panel, 350 x 750 x 8 mm, with four fixing brackets.

Connectors

LD582

Two fixing brackets for handrail to wall at end of run.

LD583

Two end caps for handrail.

Standard product features

Material:

  • Posts and rails: Aluminium 6060 T6.
  • Brackets: Zinc alloy Zamac 3 (to BS 5338) powder coated FHN8328 silver (to BS 3900).
  • Glass panels: 8 mm-thick clear toughened glass (to BS EN 12150-2).
  • Handrails: Hardwood, unfinished.

Handrails:

LD585 - 45 x 2400 mm (diameter x l).

Newel posts:

LD575 – 80 x 1000 mm (diameter x l).

Rails:

LD578 – 46 x 900 mm (diameter x l).

Rail fixing brackets:

LD576 – rail to rail bracket for handrail and LD577 – newel to rail bracket for handrail.

Maximum span between newels:

1004 mm, top and bottom rails can be cut on site. Minimum varies with size of glass panel.

Product Options

Infill:

Glass panels: 8 mm thick toughened safety glass.
