Description

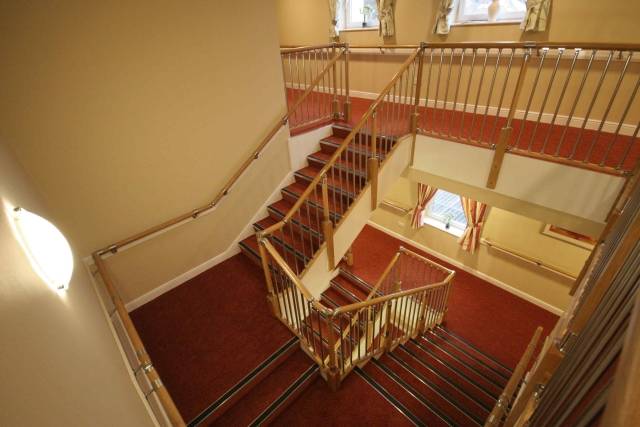

Rapid installation balustrade and handrail system for straight stair flights in light commercial applications. It combines prefinished oak posts and rails with adjustable metal joints and balusters in a brushed nickel finish. Glass panels are also available.

Features and benefits:

  • Requires no site adjustment other than cutting wood components to length. Cut edges are concealed by metal fittings.
  • Suitable for fixing to concrete, steel or wood staircases.
  • Suitable for cut or closed strings.
  • Suitable for application to new staircases, allowing suitable location of newel posts.
  • Suitable for application to existing newel bases where suitably located, equal to or greater than 90 x 90 mm, and where equal to or exceeding the strength of white oak. Consult manufacturer for information.
  • Withstands loading of 0.74 kN/m (to BS 6399) when installed to manufacturer instructions.
  • Metal balusters and glass panels delivered cut to size.

General information
Material

Base rails, handrails, newel posts and newel bases: White oak, clear polyurethane finish

Connectors: Zinc alloy, brushed nickel finish

Uniclass 2015
Ss_25_60_05_05 Balustrade and guarding systemsPrimary
Specification data - Balustrade and guarding systems
Product Reference

Fusion – Commercial Indoor Stair Balustrade

Newel posts

NB400WOF

90 x 90 x 400 mm.

NB700WOF

90 x 90 x 700 mm.

NB915WOF

90 x 90 x 915 mm.

Base rails

SBR2400WO

55 x 27 x 2400 mm.

SBR3600WO

55 x 27 x 3600 mm.

SBR4200WO

55 x 27 x 4200 mm.

Handrails

RHR2400WO

54 x 2400 mm (diameter x l).

RHR3600WO

54 x 3600 mm (diameter x l).

RHR4200WO

54 x 4200 mm (diameter x l).

Infills

CLB

Balusters for landings.

CSB

Balusters for stairs.

GPL

Glass panels for landings; includes brackets.

GPR

Glass panels for return landing, includes brackets.

GPS

Glass panels for staircases, includes brackets.

GPT

Glass panels for horizontal to rake transition, includes brackets.

Connectors

ALB

Connects handrail to a post on landing, adjustable.

BCB

Connects bottom newel post to stair handrail.

CBP

Baseplate for newel post, screws to tread.

CTB

Transition connector for handrail, accommodates angular change.

ECB

Top cap for newel post.

ICB

Connects stair handrail to mid post, where the staircase turns mid-flight.

ILCB

Connects landing handrail to intermediate newel post.

INCB

Connects stair handrail to intermediate newel post.

LCB

Connects landing handrail to newel post.

NBCB

Connects newel base to separate newel post.

NTB

Connects adjacent newel posts on half landing.

SBCB

Connects raking suspended base rail to newel post.

SCB

Corner bracket for suspended landing base rail.

SNB

Connects handrail to square newel post.

SQCB

Top cap for square newel post.

TCB

Connects stair handrail to top newel post.

UHTB

Corner bracket for landing handrail.

WCB

Connects landing handrail to wall.

WMCB

Wall mounted corner bracket.

WMHB

Wall mounted handrail bracket.

WMRB

Wall mounted return bracket, for end of run.

Standard product features

Material:

  • Base rails, handrails, newel posts and newel bases: White oak, clear polyurethane finish.
  • Connectors: Zinc alloy, brushed nickel finish.

Base rails:

When used with a cut string, the base rail is suspended and requires SBCB connectors to newels.

Pitch:

33–42º.

Maximum span between newels:

1200 mm.

Product Options

Infill:

  • Balusters: Stainless steel, brushed nickel finish.
  • Glass panels: 8 mm thick toughened safety glass.

Third party certifications
  • FIRA: TCMSF06489/1/BP/ TCMSF06489/2/BP. : BS 6399
  • Exova BM Trada: 022/001. : Approved Timber Balustrading Scheme
