Fundo Riolito Neo

Third party certifications:
  • BBA Agrément Certificate

    Certificate type

wedi

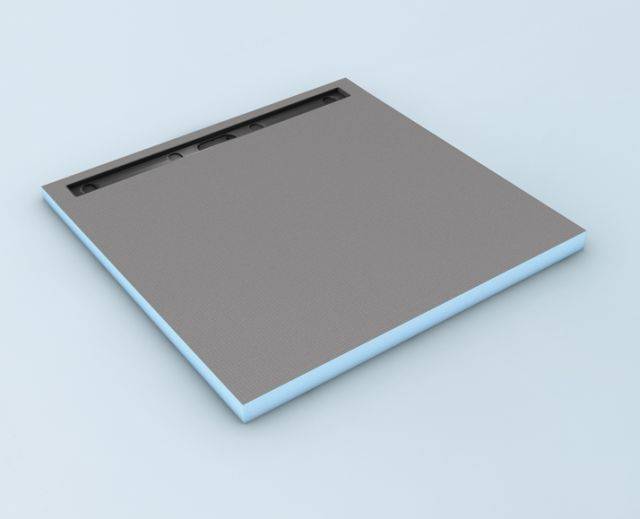

Square or rectangular floor-level shower element with oval channel drain.

Jump to:
+44 (0)161 864 2336 www.wedi.de/en/
Description

Square or rectangular composite floor-level shower element for direct tiling with horizontal or vertical floor drain for new build and renovation projects. It is manufactured from extruded polystyrene (XPS) rigid foam and can be installed on almost any surface as an individual tileable floor-level shower system. It has a special waterproof coating and a channel drain. To be used in conjunction with a Fundo Riolito Neo horizontal, mini max or vertical drain.

With a new, slimmer, oval channel drain for the new Fundo Riolito Neo, it can be located even closer to the wall. Also, large format tiles can be laid almost seamlessly. Height adjustment for the channel is integrated directly into the channel cover, which makes cleaning easier.

General information
Uniclass 2015
Shower trays (Pr_40_20_06_84)Primary
Specification data - Shower trays
Product Reference

Fundo Riolito Neo

Size (l x w x h)

1200 x 800 x 50 mm

Rectangular, 700 mm channel.

1200 x 900 x 50 mm

Rectangular, 800 mm channel.

1200 x 1000 x 50 mm

Rectangular, 900 mm channel.

1400 x 900 x 50 mm

Rectangular, 700 mm channel.

1600 x 1000 x 50 mm

Rectangular, 800 mm channel.

1800 x 900 x 60 mm

Rectangular, 800 mm channel.

900 x 900 x 50 mm

Square, 800 mm channel.

900 x 900 x 50 mm

Square, with short 300 mm channel.

1000 x 1000 x 50 mm

Square, 800 mm channel.

1200 x 1200 x 50 mm

Square, 1100 mm channel.

Fundo Riolito profile -
Type

Wall profile

Wedge

Handing

Left

Right

Height

8 mm

10 mm

12.5 mm

Length

1200 mm

1600 mm

1800 mm

Standard product features

Colour:

Grey surface with a blue rigid foam core.

Thickness:

50 mm.

Technical properties:

  • Bulk density (to DIN EN 1602): 32 kg/m³.
  • Compressive resistance (at 10% compression, to BS EN 826): 0.25 N/mm².
  • Fire behaviour (to BS EN 13501-1): E.
  • Long-term compressive strength (50 years, at ≤2% compression, to BS EN 1606): 0.08 N/mm².
  • Temperature limit: -50°C to +75°C.
  • Thermal conductivity (to BS EN 13164): 0.036 W/mK.
  • Waterproof tested to 1.5 bar.
