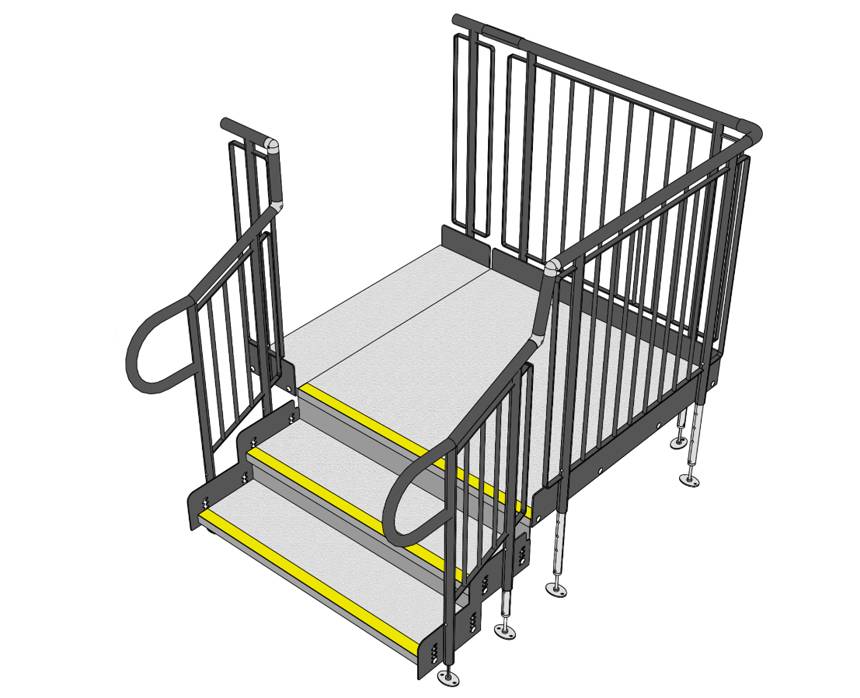

A fully adjustable modular step system constructed from galvanised steel components that are bolted together.
The fully compliant modular step system is meticulously constructed from galvanised steel components securely fastened together.
This step system not only fully adheres to DDA regulations but also aligns with British Standards and complies with Documents M and K of the Building Regulations. It successfully achieves the minimum compliant width of 1500 mm and maintains a gentle 1:15 gradient (equivalent to 3.7 degrees).
Designed to meet the highest standards of safety, this step system is tailored to prevent falls, collisions, and injuries in public settings such as schools, hospitals, shops, libraries, train stations, airports, public toilet facilities, offices, and heritage sites (in accordance with Part M & K).
Key Features and Advantages:
Color | Black Standard. Other Also available powder-coated in any RAL colour. |
Finish | Galvanized Powder-coated |
Material | Steel |
Width | 1500 mm Bespoke |
HeightThe Rapid Ramp system can be used up to 3 m high. | - |
WarrantyDescription | Three year |
Uniclass | |
CAWS | L30/45 Ramps/ walkways L30/470 Ramps |
Flooring and treads | Mesh platform.As standard. Minimum width: 900 mm. GRP platform.Optional extra. A slip-resistant and non-corrosive surface that is suitable for areas with high footfall such as schools and public spaces. The product comes in dark grey as standard. |
HandrailsWith trombone ends as standard. | Standard handrail. The handrail is coated with thermosetting powder to provide a non-conductive, non-slip and scratch-resistant surface. Infill handrail. The infill handrail prevents users from climbing or falling through gaps. It is often specified for schools and public buildings. 1100 mm high vertical infill handrail. Lower intermediate handrail. For use with the standard or infill handrail. The lower intermediate handrail is designed to be used by young children and wheelchair users. The handrail should be 600 mm from the surface of the system. |
Integral accessories | Telescopic legs. Legs can be adjusted to accommodate different threshold heights. |
Accessories | None. Gates unit. A gate unit can be attached to the side of a platform; 1200 mm or wider. Step unit. Access hatch. A hatch opens allowing a person access to the underground services. Underside mesh hoarding. This mesh is designed to prevent children from gaining access to the underneath of the ramp. It is often specified for schools and public buildings. Specification includes: • Mesh size 200 x 50 mm. • 33.7 mm OD Single mesh clip. |
Colour/ Finish | Black, powder-coated. As standard. RAL, powder-coated. Insert requirements. |
WidthAny of the widths can be secured together to create almost any width. | 900 mm. 1000 mm. 1200 mm. 1500 mm. Bespoke. Insert requirements. |
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 156.73 kg CO₂ eq/m² |
Recyclability | 96% |
Recycled content | 21 % |
