FULL GLASS

Automatic turnstile revolving doors are as prestigious as they are elegant. Where buildings denote grandeur, turnstile revolving doors stand for style. As they combat heat loss in winter and heat gain in summer, automatic turnstile revolving doors are particularly suitable in areas of high traffic densities and where energy efficiency is valued.

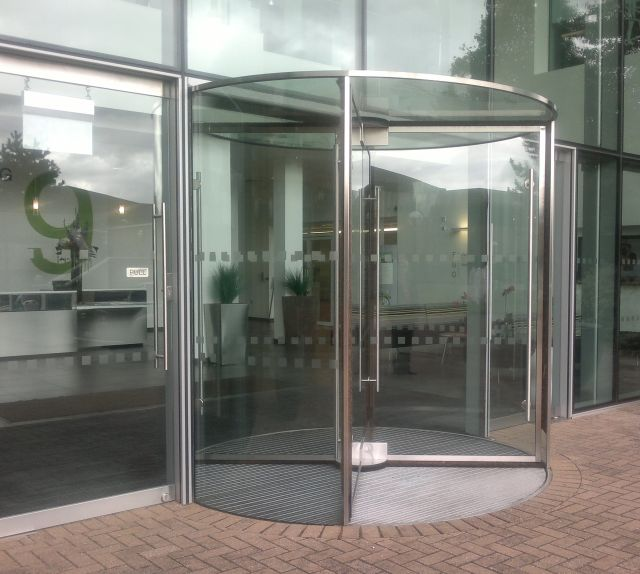

Futuristic, light, clear: the Full Glass (FG) revolving door is manufactured almost exclusively from safety glass. The surfaces of the door leaf and drum wall profiles have a stainless steel finish (brushed). The ceiling is completely made of glass and the door leaves need no central pillar.

Applications:

• Hotels.

• Administration buildings.

• Shopping centres.

• Exhibition and conference centres.

• Multiplex cinemas.

• Railway stations.

• Airport buildings.

• Sports facilities.

• Hospitals.

Features:

• Drum walls are curved laminated glass (EN 356, P2A) 16,76 mm in sidewalls, wall thickness: 16.76 mm.

• 3 or 4 fixed door wings in 12 mm tempered glass (ESG) with one manual lock (only without night closure).

• Suitable for door diameters from 2.0–3.0 m.

• The drive unit is TORMAX Universal drive placed in the floor or under the floor, with control panel, emergency button and two disable push buttons.

• Includes flooring in stainless steel, EN 1.4301.

Additional functions:

• Rescue and escape routes with break-out function (mechanical emergency opening system which allows the leaves to be swung out of the way so as to give unimpeded access/entry).

• Night closure: available with locks; the cleverly designed internal guidance system prevents dirt build-up and is weather-resistant.

• Free-standing air curtain – able to prevent minor drafts.
