FSB 1144 Lever Handle (HUKP-0401-02) - Door handle

Verified by manufacturer 6 months ago

Hafele UK Ltd

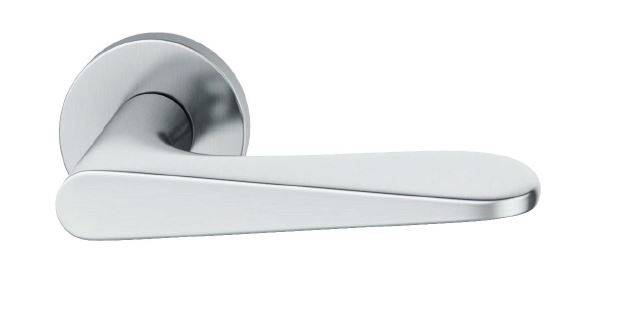

Stainless steel Jasper Morrison design lever handle.

Jump to:
+44 (0)800 171 2907 Website

Application

Primarily suitable for 39-58 mm door thickness, with other door thickness applications available.

Description

Stainless steel Jasper Morrison modern spoon-shaped design lever handle.


Features and benefits:

  • ASL® sprung adapter system with inseparable sliding bearings.
  • M5 stainless bolts and lugs for secure bolt through fixing.
  • Suitable for 39-58 mm door thickness (other thicknesses available).
  • Other back plate options available.


General information

Color

Silver

Bronze

Black

Brown

Manufacturer guidance

RAL colours available on request.

Finish

Satin

Guidance for specification option:

Anodized and stainless steel.

Polished

Guidance for specification option:

Stainless steel.

Matt

Guidance for specification option:

Black.

Manufacturer guidance

Other finishes available on special order.

Material

Stainless steel

Steel

Length

131 mm

Manufacturer guidance

7 mm rose thickness.

Width

63 mm

Warranty description

25 year

Uniclass

Pr_30_36_59_25 Door lever handle setsPrimary

CAWS

P21/610 Lever handles

P21/38 Lever handles

Product range

Lever Handles

Specification data - Door lever handle sets

Standard

To BS EN 1906: 2012, EN 1634-1 and EN4.

Classification grades (minimum)

-

Category of use

4.

Durability

7.

Fire resistance

0.

Manufacturer guidance

EN1634-1 suitable for use on fire resisting doors.

Safety

1.

Corrosion resistance

4.

Security

0.

Type of operation

A.

Style

Flat pattern.

Material and finish

Stainless steel, grade 1.4301 (304).

Colour

Satin stainless steel.

Polished stainless steel.

Satin anodized.

Guidance for specification option:

Aluminium material finish.

RAL colour.

Guidance for specification option:

Aluminium material finish.

Light bronze.

Guidance for specification option:

Aluminium shot-blasted finish.

Medium bronze.

Guidance for specification option:

Aluminium shot-blasted finish.

Dark bronze.

Guidance for specification option:

Aluminium shot-blasted finish.

Matt black.

Guidance for specification option:

Aluminium shot-blasted finish.

Manufacturer guidance

Other finishes available on special order.

Mounting

Sprung rose with bolt through fixing.

Manufacturer guidance

  • M5 stainless bolts and lugs for secure bolt through fixing.
  • Other back plate options available.


Sustainability data

Contains Red List materials

No

Country of material origin

Germany

Country of product manufacture

Germany

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

-

Manufacturer guidance

Aluminium 4.72, Stainless Steel 4.03

Recyclability

Yes

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

-

Manufacturer guidance

Aluminium 11 %, Stainless Steel 40 %, Bronze 97 %
