FSB 1035 Lever Handle (HUKP-0401-20) - Door Handle
Verified by manufacturer 6 months ago

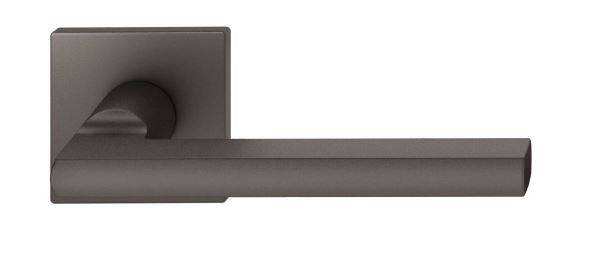

Stainless steel Heike Falkenberg design lever handle.
Application
Primarily suitable for 39–58 mm door thickness, with other door thickness applications available.
Description
Stainless steel Heike Falkenberg design slender grip lever handle.
Features and benefits:
- A slender grip 'L' shaped lever.
- ASL® sprung adapter system with inseparable sliding bearings.
- M5 stainless bolts and lugs for secure bolt through fixing.
- Suitable for 39–58 mm door thickness (other thicknesses available).
- Square rose - other back plate options available.
General information
Color | Black Bronze Grey Manufacturer guidanceRAL colours available on request. |
Finish | Matt Guidance for specification option: Black. Satin Guidance for specification option: Anodized and stainless steel. Polished Guidance for specification option: Stainless steel. |
Material | Stainless steel Steel |
Length | 137 mm |
Width | 57 mm Manufacturer guidance7 mm rose thickness. |
Warranty description | 25 year |
Uniclass | |
CAWS | P21/610 Lever handles P21/38 Lever handles |
Specification data - Door lever handle sets
Standard | To BS EN 1906: 2012, EN 1634-1 and EN4. |
Classification grades (minimum) | |
Category of use | 4. |
Durability | 7. |
Fire resistance | 0.Manufacturer guidanceEN1634-1 suitable for use on fire resisting doors. |
Safety | 1. |
Corrosion resistance | 4. |
Security | 0. |
Type of operation | A. |
Style | Flat pattern. |
Material and finish | Stainless steel, grade 1.4301 (304). |
Colour | Satin stainless steel.Polished stainless steel.Satin anodized.RAL colour.Guidance for specification option: Insert requirements. Light bronze.Guidance for specification option: Aluminium shot-blasted finish. Medium bronze.Guidance for specification option: Aluminium shot-blasted finish. Dark bronze.Guidance for specification option: Aluminium shot-blasted finish. Matt black.Guidance for specification option: Aluminium shot-blasted finish. |
Mounting | Sprung rose with bolt through fixing.Guidance for specification option: Square rose. Manufacturer guidance
|
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | Germany |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | Manufacturer guidanceAluminium 4.72, Stainless Steel 4.03 |
Recyclability | Yes |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | Manufacturer guidanceAluminium 11 %, Stainless Steel 40 %, Bronze 97 % |
Literature
3. Project - Architectural Lever Handles
