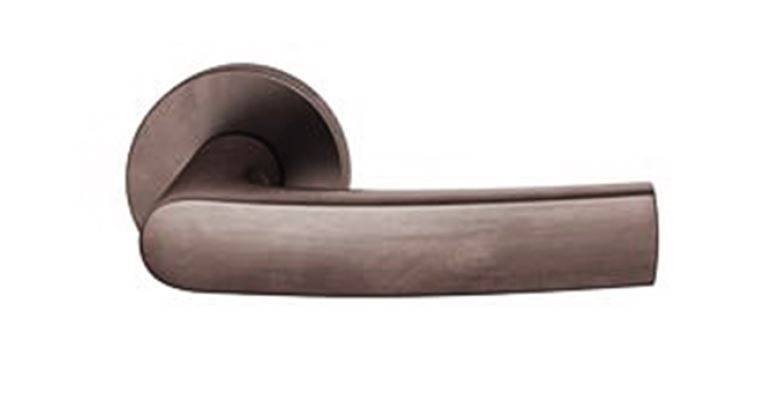

FSB 1015 Lever Handle (HUKP-0401-15) - Door handle
Verified by manufacturer 5 months ago
Stainless steel Johannes Potente design lever handle
Application
Primarily suitable for 39-58 mm door thickness, with other door thickness applications available.
Description
Stainless steel Johannes Potente design lever handle.
Features and benefits:
- Visible indent for a more positive grip.
- ASL® sprung adapter system with inseparable sliding bearings.
- M5 stainless bolts and lugs for secure bolt through fixing.
- Suitable for 39-58 mm door thickness (other thicknesses available).
- Other back plate options available.
General information
Color | Silver Bronze Black Grey Brown Manufacturer guidanceRAL colours available on request. |
Finish | Satin Guidance for specification option: Stainless steel and anodized aluminium. Matt Guidance for specification option: Black. Polished Guidance for specification option: Stainless steel. |
Material | Stainless steel Steel |
Length | 122 mm |
Width | 54 mm Manufacturer guidance25 mm rose thickness. |
Warranty description | 25 year |
Uniclass | |
CAWS | P21/610 Lever handles P21/38 Lever handles |
Product range |
Specification data - Door lever handle sets
Standard | To BS EN 1906: 2012, EN 1634-1 and EN4. |
Classification grades (minimum) | |
Category of use | 4. |
Durability | 7. |
Fire resistance | 0.Manufacturer guidanceEN1634-1 suitable for use on fire resisting doors. |
Safety | 1. |
Corrosion resistance | 4. |
Security | 0. |
Type of operation | A. |
Style | Flat pattern. |
Material and finish | Stainless steel, grade 1.4301 (304). |
Colour | Satin stainless steel.Polished stainless steel.Satin anodized aluminium.RAL colour.Light bronze.Guidance for specification option: Aluminium shot-blasted finish. Medium bronze.Guidance for specification option: Aluminium shot-blasted finish. Dark bronze.Guidance for specification option: Aluminium shot-blasted finish. Matt black.Guidance for specification option: Aluminium shot-blasted finish. Light patinated.Guidance for specification option: Real bronze. Dark oxidized.Guidance for specification option: Real bronze. |
Mounting | Sprung rose with bolt through fixing.Manufacturer guidance
|
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | Germany |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | Manufacturer guidanceAluminium 4.72, Stainless Steel 4.03 |
Recyclability | Yes |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | Manufacturer guidanceAluminium 11 %, Stainless Steel 40 %, Bronze 97 % |
