Frontslide 140 Matic (Sliding Shutter Hardware)

Verified by manufacturer 23 days ago

Hawa Sliding Solutions AG

Hardware for the automatic sliding of wood, metal or aluminium shutters weighing up to 140 kg.

Jump to:
+41 44 787 17 17 Website

Application

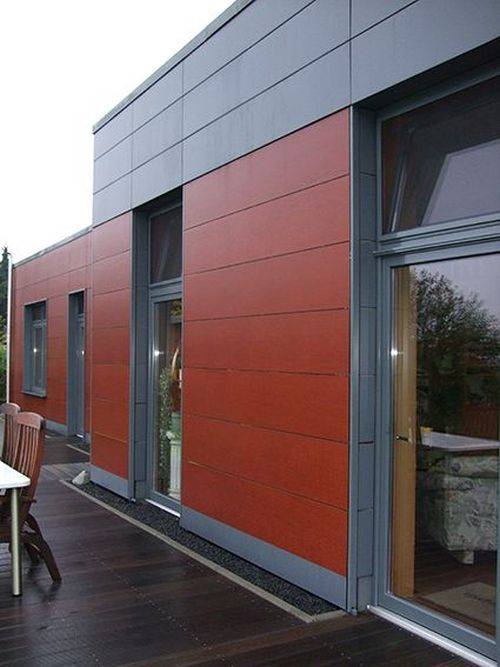

Suitable for facades with a high proportion of glass, and areas where screening and shade form part of the facade design, such as:

  • Schools.
  • Hotels.
  • Public buildings.
  • Office and administration premises.
  • Apartment buildings.
  • Low-energy houses.

Description

Hardware for the automatic sliding of wood, metal or aluminium shutters weighing up to 140 kg.


Features and benefits:

  • Panel width: 750 mm.
  • Maximum height: 3200 mm.
  • Maximum installation width: 7500 mm.
  • Suitable for shutter thickness of 28–60 mm.
  • Automatic operation.
  • The brushless electric motor transmission system and drive belt help provide a stable, maintenance free system with a long life.
  • No connection cables or control box are required, as the controls are integrated in the drive unit.
  • Aluminium covering screens in either natural anodized or plain finishes ready for custom painting, provide aesthetic appeal and are easily clipped on to the inside or outside of the top track.
  • Fibreglass-reinforced toothed belts provide high tensile strength and a low level of expansion.
  • High operating safety of the drive unit in outdoor areas due to splash water resistance.
  • Shutters can be removed without loosening the toothed belt.
  • Can be moved into any position.
  • Straightforward wall or ceiling installation.
  • Clip-on covers for inside or outside attachment.
  • High level of wind resistance (Class 6).
  • CE marked drive unit.


Components:

  • Two-wheeled trolley M12, with plastic wheels.
  • Stainless steel top fixing plate, with hanger bolt M12.
  • Drive unit.


Drive unit (25148):

  • Drive unit with integrated control for automatic sliding hardware with a speed of 50 mm/s, and a maximum drive force of 100 N.
  • Drive commands are triggered by applying a current to the control wires.
  • The Hawa Motronic 140 drive automatically detects the end position of the sliding shutter during the teach-in process.
  • The drive stops and reverses two times when it encounters an obstacle.
  • Consult manufacturer for further details.

General information

Color

Grey

Silver

Finish

Anodized

Material

Aluminium

Stainless steel

Top fixing plate.

Steel

Shape

Rectangle

Warranty description

Two year

Uniclass

Pr_30_36_36_23 Door track and running gearPrimary

CAWS

P21/10 Door track and running gear

P21/350 Door track and running gear

Specification data - Door track and running gear

Standard

To EN 13659 and EN 1670.

Third-party certification

Internal testing.

Form

Aluminium, plain anodized, pre-drilled, sliding, automatic, top track and bottom guide channel.

The top track can be installed either with or without covering screens.

Drive unit

Hawa Motronic 140 (25148).

Includes control unit, toothed belt lock and pulley wheel.

Top track

3500 mm.

6000 mm.

Cut to size.

Insert requirements.

Bottom guide channel

6000 mm.

Cut to size.

Insert requirements.

Covering screen

Not required.

Aluminium, plain anodized.

Length

Covering screen.

Not required.

3500 mm.

Plain anodized only.

6000 mm.

Cut to size.

Insert requirements.

Toothed belt

2.7 m.

5 m.

8 m.

10 m.

15 m.

Show more

Accessories/ Other requirements

Other accessories and spares are also available, consult manufacturer for details.

Not required.

Cover fixings.

Required for attaching the covering screens.

Connecting bolts.

Floor guide unit, long.

For use with bottom guide channel.

Floor guide unit, short.

For use with bottom guide channel.

Show more

Shutter

Partial set for one sliding shutter.

Hawa Frontslide 140/ matic (25144).

Sustainability data

Contains Red List materials

No

Country of material origin

Switzerland

Country of product manufacture

Switzerland

Recyclability

Yes

Literature

CAT_EN_Hawa_Frontslide_140_Matic

CAT_EN_Hawa_Frontslide_140_Matic
