Frontslide 100 A Symmetric (Sliding Shutter Hardware)
Verified by manufacturer 3 months ago
Symmetric 2+2 (25126)
Symmetric 2+2 (25126)
Hardware for the symmetrical, manual sliding of two or four wood, metal or aluminium shutters weighing up to 100 kg (two) or 70 kg (four) per panel.
Application

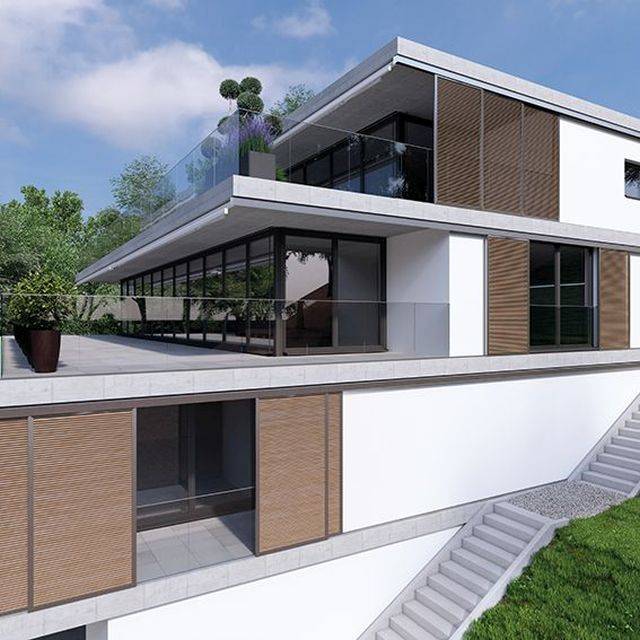

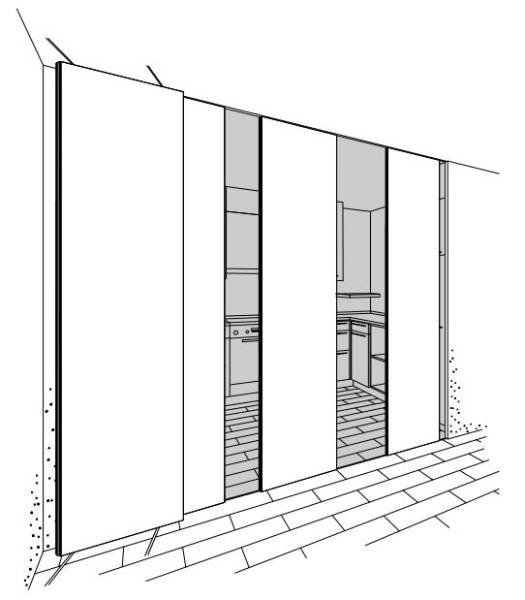

Suitable for facades and areas where screening and shade form part of the facade design, such as:
- Schools.
- Hotels.
- Public buildings.
- Office and administration premises.
- Apartment buildings.
- Low-energy houses.
Description
Hardware for the symmetrical, manual sliding of two or four wood, metal or aluminium shutters weighing up to 100 kg (two) or 70 kg (four) per panel.
Features and benefits:
- Minimum panel width: 550 mm (Frontslide 100 A Symmetric 2); 600–1000 (Frontslide 60 A Symmetric 2+2).
- Maximum height: 3200 mm.
- Maximum installation width: 6000 mm.
- Manually operated.
- Shutters can slide simultaneously to the left and right.
- Suitable for shutter thickness 28–50 mm (Frontslide 100 A Symmetric 2); 28–40 mm (Frontslide 100 A Symmetric 2+2).
- For attachment to the ceiling or window lintel – the top track screws directly to the loadbearing surface.
- Aluminium covering screens in either natural anodized or plain finishes ready for custom painting, provide aesthetic appeal and are easily clipped on to the inside or outside of the top track.
- In buildings with an air gap behind the facade; open window shutters can slide out of sight into the space between the building wall and the facade.
- Manufactured from corrosion resistant materials.
- Fibreglass-reinforced toothed belts provide high tensile strength and a low level of expansion.
- Shutters can be removed without loosening the toothed belt.
- Can be moved symmetrically into any position.
- Fast and efficient assembly from below and from the facade side.
- Clip-on covers for inside or outside attachment.
- High level of wind resistance (Class 6).
Components:
Quantities vary depending on variant specified, consult manufacturer for details.
- Two-wheeled trolley M10, with plastic wheels.
- Stainless steel top fixing plate, with hanger bolt M10.
- Track stop with adjustable retainer.
- Guide pulley wheel matching with top track.
- Guide pulley wheel with fixing plate, long (25126 only).
- Guide pulley wheel with fixing plate, short (25126 only).
- Driver counter-plate, wide (25126 only).
- Driver, wide (25126 only).
- Laterally adjustable driver for manual systems.
- Toothed belt lock for manual systems.
- Toothed belt clamp for manual and automatic systems (25126 only).
- Black toothed belt, 2.7 m (fibreglass reinforced, 25126 only).
General information
Color | Grey Silver |
Finish | Anodized |
Material | Aluminium Stainless steel Guidance for specification option: Top fixing plate. Steel |
Shape | Rectangle |
Warranty description | Two year |
Uniclass | |
CAWS | P21/10 Door track and running gear P21/350 Door track and running gear |
Specification data - Door track and running gear
Standard | To EN 13659 and EN 1670. |
Third-party certification | Internal testing. |
Form | Aluminium, plain anodized, pre-drilled, sliding, manual, top track and bottom guide channel.Guidance for specification option: The top track can be installed either with or without covering screens. |
Top track | 3500 mm. 6000 mm. Cut to size. Guidance for specification option: Insert requirements. |
Bottom guide channel | 6000 mm. Cut to size. Guidance for specification option: Insert requirements. |
Covering screen | Not required. Aluminium, plain anodized. Aluminium, unanodized. |
Length | Not required. 3500 mm. Guidance for specification option: Plain anodized only. 6000 mm. Cut to size. Guidance for specification option: Insert requirements. Manufacturer guidanceCovering screen. |
Toothed belt | 2.7 m. Guidance for specification option: Standard. 5 m. 8 m. 10 m. 15 m. |
Accessories/ Other requirements | Not required. Catch for sliding shutter. Guidance for specification option: Stainless steel, with fixing screws. Cover fixings. Guidance for specification option: Required for attaching the covering screens. Connecting bolts. Floor guide unit, long. Guidance for specification option: For use with bottom guide channel. Manufacturer guidanceOther accessories and spares are also available, consult manufacturer for details. |
Shutter | Partial set for four sliding shutters. |
Maximum weight | 70 kg. Guidance for specification option: Maximum weight per shutter. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Switzerland |
Country of product manufacture | Switzerland |
Recyclability | Yes |
Literature

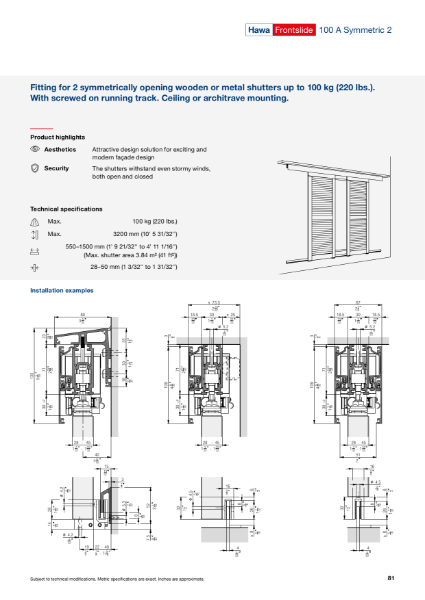

CAT_EN_Hawa_Frontslide_100_A_Symmetric_2
