Verified by manufacturer 26 days ago
DF 5781
Neaco's Freedom Support range combines quality with a contemporary design. This range utilises Neaco's heritage of engineering and provides a solution which ensure the best user experience.
For use in bathrooms.
A range of grab rails which provides sure and positive grip in the shower and ease of movement in and out of a bath. Hinged support rails are designed to support the hand and arm.
Features and benefits:
Color | Grey Blue Red Green White |
Finish | Powder-coated |
Material | Aluminium |
Shape | Circle |
Size | Manufacturer guidanceBespoke sizes available on request. |
Length | 460 mm |
Width | 370 mm |
Height | 295 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | N13/436 Handrails and grab bars |
Product range |

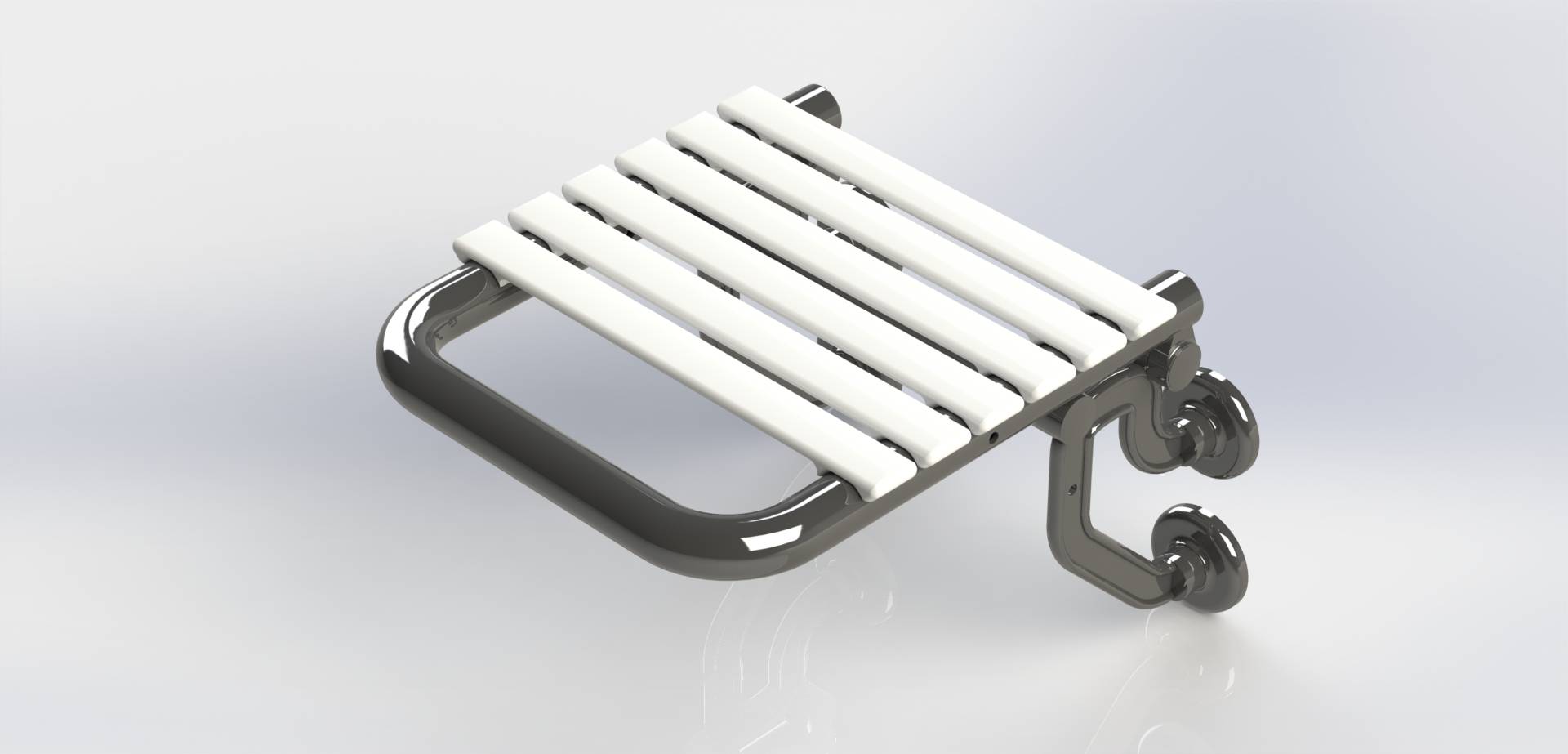

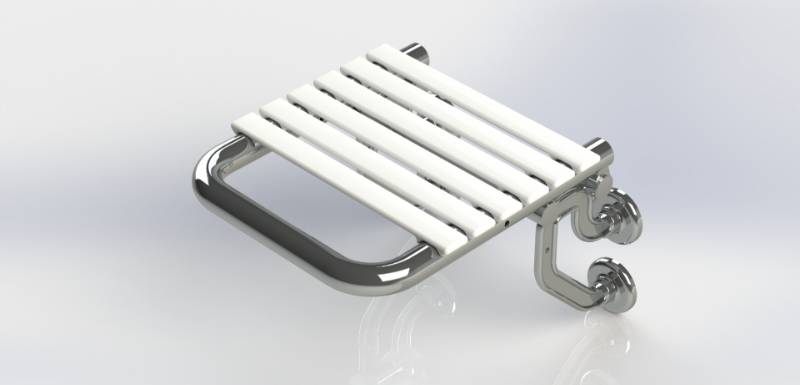

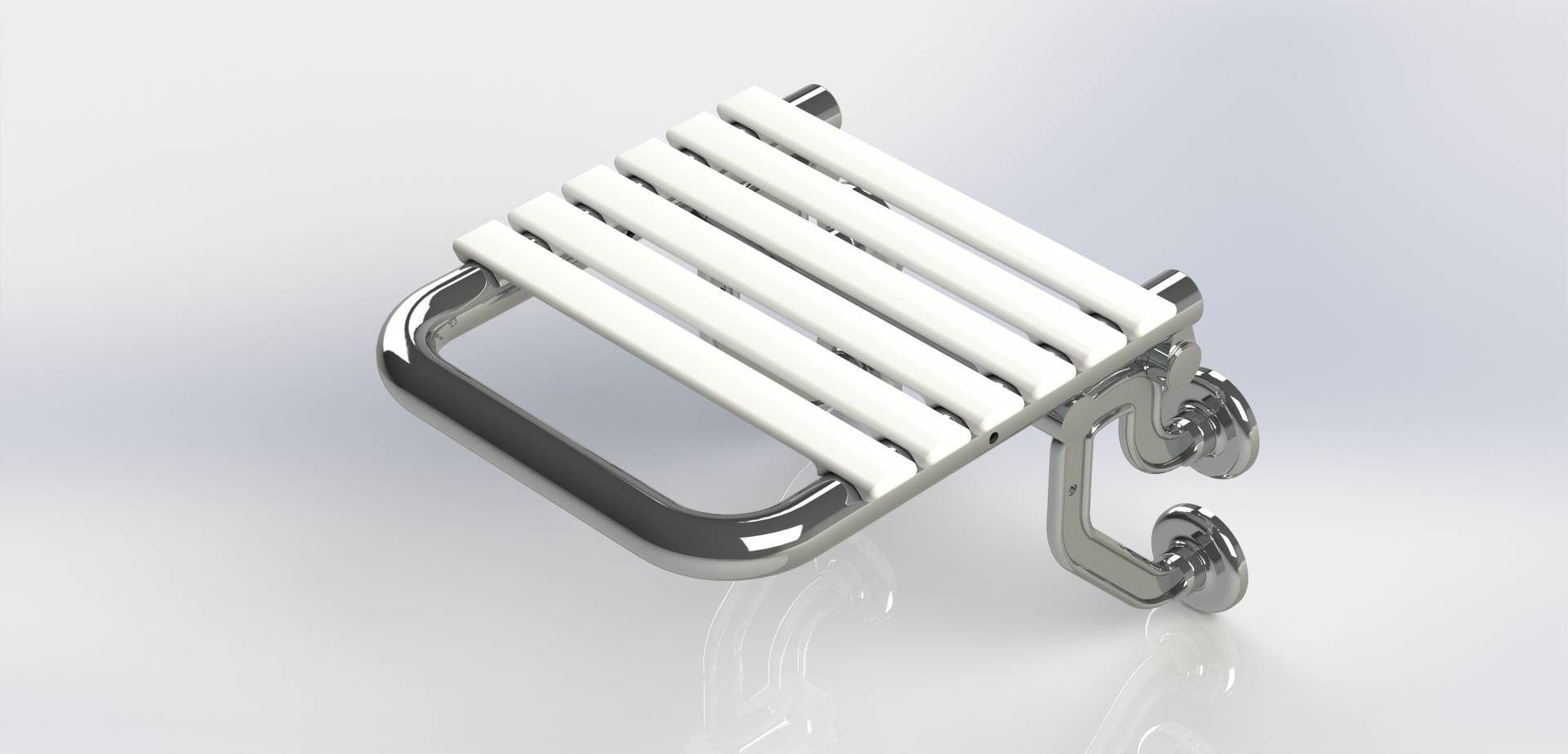

Form | Support, hinged shower seat. |
Diameter | 32 mm. |
Materials | |
Body | Aluminium. |
Finish and colour | Powder coated.Grey.Guidance for specification option: Anthracite Grey - RAL 7016. Silver.Yellow.Guidance for specification option: Melon Yellow - RAL 1028. Green.Guidance for specification option: Pale Green - RAL 6021. Yellow Green - RAL 6018. Blue.Guidance for specification option: Pigeon Blue - RAL 5014. Sky Blue - RAL 5015. White.Guidance for specification option: Pigeon Blue - RAL 5014. Purple.Guidance for specification option: Traffic Purple - RAL 4006. Red.Guidance for specification option: Traffic Red - RAL 3020. Wine Red - RAL 3005. |
Integral accessories | DF 9903.Guidance for specification option: Hinged leg option. DF 5836.Guidance for specification option: Cushion Back rest. Not required. |
Product Reference | DF 5781 |
Support | Not required. DF 9911. Guidance for specification option: Height adjustable wall support, for use with DF 5806 and DF 6101, 120 x 460 mm (w x h). DF 9912. Guidance for specification option: Floor fixed support, for use with DF 5806 and DF 6101, 100 x 100 x 700 mm (d x w x h). |
Accessories | None. Leg. Guidance for specification option: For DF 5806 and DF 6106 only. Toilet roll holder. Guidance for specification option: For DF 6106 only. |
LoadBearingCapacity | 100 kg. Guidance for specification option: Recommended maximum user load (tested up to 175 kg). |
Construction | Grab rail. |
Dimensions | 300, 450, 600 x 78. Guidance for specification option: Length x height. |
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 77 % |
