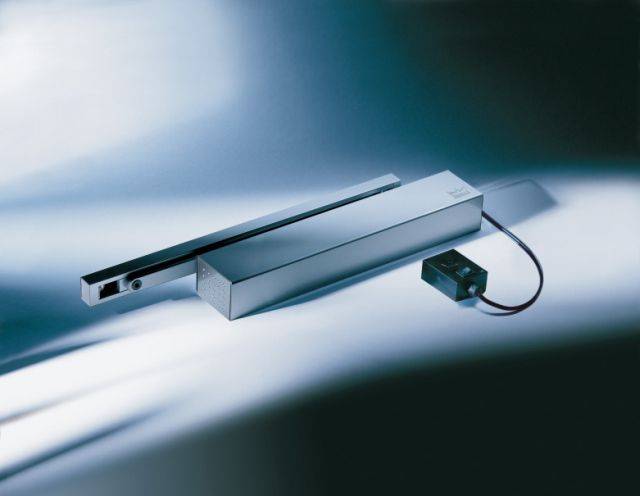

Free Swing Slide Channel Door Closer TS99
Verified by manufacturer 26 days ago
TS 99 FL
TS 99 FL
Hold-open device with a free-swing function for doors.
Application
Suitable for fire and smoke check doors.
Description
For use of fire and smoke check doors combined with safe closing in an emergency, the DORMA TS 99 FL range is part of the Contur Design suite. It can be used in conjunction with a smoke detector system (e.g. DORMA RMZ) and can be used as a hold-open system for fire doors when used with built-in smoke detector system, e.g. DORMA TS 99 FLR or TS 99 FLR-K.
In the event of an alarm or power failure, however, the doors are reliably closed by the reinstated action of the door closer. Consult Dorma for details of functions and electrical requirements.
Features and benefits:
- Door width: ≤ 1100 mm, standard or fire and smoke check doors.
- Non-handed.
- Arm assembly type slide channel.
- Closing speed adjustable at valve.
General information
Color | Silver |
Material | Steel |
Shape | Rectangle |
Length | 371 mm 660 mm |
Width | 52 mm |
Height | 71 mm |
Uniclass | |
CAWS | P21/350 Door track and running gear P21/471 Electromagnetic hold-open/ swing-free devices P21/10 Door track and running gear |
Product range |
Specification data - Controlled door closers
Classification grades (minimum) | |
Door closer power size | Manufacturer guidanceClosing speed adjustable at valve. |
Suitability for use on fire and smoke doors | Manufacturer guidanceSuitable for smoke and fire doors. |
Safety | Manufacturer guidanceSafe closing design for emergency situation. |
Closer functions | Hold-open device with free-swing function and controlled closing. |
Materials and finishes | |
Colour | Silver. |
Dimensions | 371 x 52 x 71 mm. |
Weight | 3.5 kg. Guidance for specification option: TS 99 FL, TS 99 FLR and TS 99 FLR-K weights. |
Literature
DORMA TS 99 Free swing slide-channel door closer
