FRAME+ 75 Window - Window System
Verified by manufacturer 2 days ago

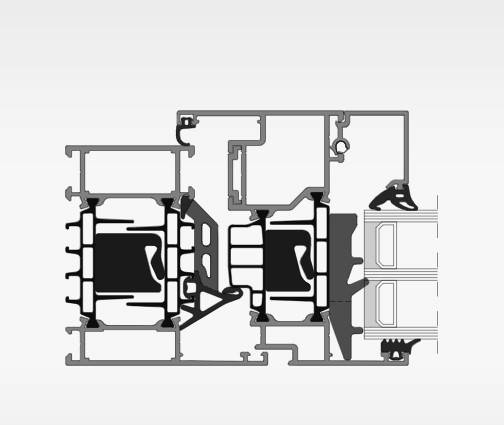

FRAME+ 75 WI - Inward Opening Insert Window
FRAME+ 75 WI - Inward Opening Insert Window
Aluminium window system.
Application
For window applications. Can be inserted into curtain walls or installed as a punched opening window.
Description
Aluminium window system available in a wide range of configurations and design options, due to a multitude of profiles and accessories.
These windows meet architectural demands whilst setting benchmarks in the industry for thermal performance requirements.
Features and benefits:
- FRAME+ 75 WI:
- Stepless thermal insulation.
- Innovative system components, such as THERMORIT insulation bars featuring distinctly reduced heat transmission values.
- Integration of efficient insulation areas.
- Consistent thermal optimization of the modular system.
- Available as system for self-fabrication or as pre-assembled units.
- FRAME+ 75 SF:
- Extremely slim exterior view of the sash with a face width of only 22 mm.
- Increased airtightness and cleaning-friendly execution without visible glazing beads in the sash.
- All sashes are executable in two colours without elaborate half-shell coating.
- Application of all outer frames of the proven FRAME+ 75 WI.
- Mitred cut exterior glazing bead with stabilising corner plate.
- FRAME+ 75 WB:
- Application as window for punched openings or, with outer frame extension, for integration into curtain wall.
- No visible glazing beads.
- Very slim visual appearance.
- Available as a dummy mullion sash.
- FRAME+ 75 WA:
- Available with curtain wall adapter outer frame profile.
- Internal or external glazing options.
- Narrow face widths with the casement sash design, no visible glass retaining strips.
General information
Color | Other |
Finish | Powder-coated Anodized |
Material | Aluminium Glass |
Shape | Square Rectangle Other |
Length | 75 mm Manufacturer guidanceDepth. |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | L10/330 Aluminium windows L10/25 Aluminium windows |
SKU Code | WI, SF, WB, WA |
Specification data - Aluminium window units
Classification data | |
Standard | Non-fire and/ or smoke-rated windows to BS EN 14351-1/ RAL GZ 695. |
Dimensions and configurations | Turn-tilt. Turn. Tilt-turn (tilt first). Tilt. Parallel tilt and slide. Manufacturer guidanceMaximum sash dimensions: 1600 x 2100 mm / 1600 x 3000 mm. Consult manufacturer's literature for maximum sash weights. |
Product performance | |
Weather performance | |
Air permeability | Class 4. |
Watertightness | Up to E 900. |
Resistance to wind load | Class C5. |
Safety | |
Security level | RC 2/ RC 3 (if specified with burglar resistance). |
Environmental | |
Acoustic performance rating | Up to 45 Rw+Ctr (dB). |
Thermal | |
Whole window U-value | ≥1.0 W/(m²·K). Guidance for specification option: Thermal insulation based on DIN ISO 1077-2. |
Frame | |
Profile | Manufacturer guidanceConsult manufacturer and insert requirements. |
Finish as delivered | |
Coating | Anodized. Powder coating. |
Colour | Manufacturer guidanceConsult manufacturer and insert requirements. |
Glazing or infill | |
Requirements | Manufacturer guidance
|
Hardware | Visible hardware. Concealed hardware. |
Operation | |
Type | Motor operated. |
Fixing features | Manufacturer guidanceConsult manufacturer and insert requirement or omit. |
Depth | 75 mm. |
System types | Manufacturer's standard. Burglar resistant. Guidance for specification option: By using additional components, the RAICO window system can be equipped with burglary-resistant properties in resistance class RC2. Barrier-free threshold. Guidance for specification option: The threshold belongs to the most sensitive parts of french doors. Especially in the threshold area thermal insulation and air tightness is a real challenge. With our new barrier-free threshold, Raico are offering a product that meets all requirements on modern and safe construction ergonomics. |
Handles | RAICO system handles. Individual commercial handles. Guidance for specification option: With integration gear. |
Accessories | Manufacturer guidanceVarious available including corner angles, gaskets and fittings. Consult manufacturer and insert requirements. |
Sustainability data
Material | Aluminium Glass |
