FRAME+ 75 DI Door - Door System

Verified by manufacturer 2 days ago

FRAME+ 75 - Single Sash Inward Opening

RAICO Variant:

Aluminium door system.

Jump to:
+44 1329 848 175 Website

Application

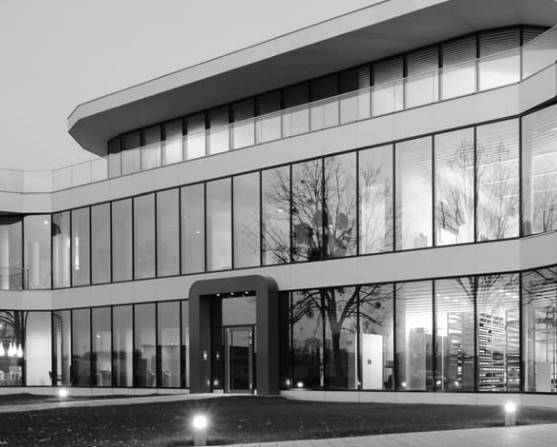

For buildings, curtain wall and residential project installations.

Can be combined as desired with the window series FRAME+ 75 WI and FRAME+ 75 WA.

Description

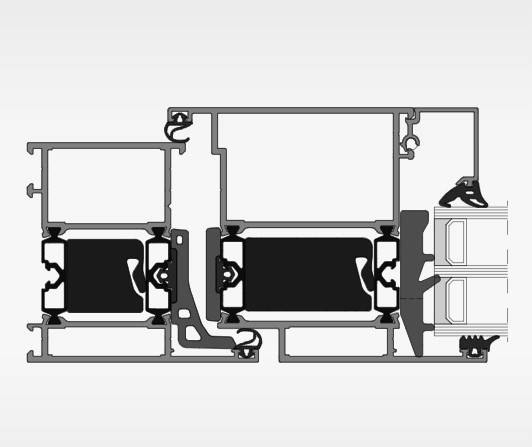

Aluminium entrance door system.

Special profile contours enable simple installation. The series is characterised by short production times and efficient manufacturing. Smooth rebate geometries enable fast installation of all types of hardware in the rebate. Large internal chambers within the profiles provide acceptance of all fittings, such as electrical door release mechanisms.

Features and benefits:

  • Extensive design options within the series.
  • Standard fittings.
  • Ease of manufacture with innovative features.
  • Sturdy composite profiles ensuring long-lasting functionality.
  • Innovative insulating bar material THERMORIT with very low thermal conductivity and suitable for composite coating and anodizing.

General information

Color

Other

Finish

Anodized

Powder-coated

Material

Aluminium

Glass

Composite

Other

Shape

Rectangle

Other

Length

75 mm

Manufacturer guidance

Depth.

Width

Bespoke

Height

Bespoke

Uniclass

Pr_30_59_24_02 Aluminium doorsetsPrimary

CAWS

L20/480 Doorsets

L20/55 Doorsets

SKU Code

DI

Specification data - Aluminium doorsets

Classification data

Standard

External non-fire-rated aluminium doorset to BS EN 14351-1.

Configuration

Single-leaf, single-action - inward opening.

Doorset size

-

Manufacturer guidance

Consult manufacturer and insert requirements.

  • Minimum width active leaf: 310 mm.
  • Minimum width inactive leaf: 310 mm
  • Minimum height active/ inactive leaf: 720 mm / 2010 mm.
  • Maximum width active/ inactive leaf: 1400 mm.
  • Maximum height active/inactive leaf: 2950 mm.
  • Maximum sash weight: 250 kg.

Performance

-

Acoustic performance

Rw 44 dB.

Thermal

Up to 0.69 W/(m²·K).

Frame

-

Material

Aluminium.

Guidance for specification option:

  • Modern and classic styles available.
  • Standard or integration outer frames available, consult manufacturer for details.

Threshold

Manufacturer's standard.
Barrier-free (zero threshold).

Perimeter seals or inserts

Manufacturer's standard.

Finish

-

Coating

Anodizing.
Powder coating.

Colour

-

Manufacturer guidance

Consult manufacturer and insert requirements.

Installation fasteners

Manufacturer's standard.

Frame accessories

Face-fixed flag hinges (screw-on).

Guidance for specification option:

  • Intricate shapes through optimized dimensions.
  • Inward and outward opening options.
  • Anchor screw or mounting plate fixings.
  • Large colour range in aluminium or stainless steel finish.
  • Two and three part hinge options.
  • Post installation three way adjustment without unhinging the sash.
  • Maximum weight of 200 kg.

Roller hinges.

Guidance for specification option:

  • Inward or outward opening profile adapted hinges.
  • Direct screw fixing to outer frame without hinge plates.
  • Sash fixing utilises a multifunctional hinge body with integral adjustment.
  • Large colour range in aluminium or stainless steel finish.
  • Generous post installation multi-directional adjustment without unhinging the sash (Rebate adjustment ± 2 mm, height adjustment ± 3 mm).
  • Efficient production utilising pre-assembled hinge parts.
  • Material optimisation in the 7 mm rebate enables a very high load capacity up to 250 kg.
  • Integrated visual control of hinge adjustment on the sash hinge body.
  • Stainless steel option with high load bearing capacity up to 250 kg.
  • Air permeability test to class 3.

Door leaf

-

Thickness

-

Manufacturer guidance

Consult manufacturer and insert requirements.

Material

-

Manufacturer guidance

Insert requirement.

Glass, inserted panels and leaf-enclosing panel fillings available (Leaf-enclosing infill thickness: 31–77 mm).

Glazing

-

Type

-

Manufacturer guidance

Insert requirement.

  • Glass infill thickness (sash): 10–68 mm.
  • Glass infill thickness (frame): 10–56 mm.

Glazing accessories

Not required.
Glazing rebate insulating block.

Beading

-

Type

Manufacturer's standard.

Finish

-

Coating

-

Manufacturer guidance

Consult manufacturer and insert requirements.

External colour

-

Manufacturer guidance

Consult manufacturer and insert requirements.

Internal colour

-

Manufacturer guidance

Consult manufacturer and insert requirements.

Door accessories

-

Manufacturer guidance

Consult manufacturer and insert requirements.

Hardware

Locks.

Guidance for specification option:

A range of locks are available - consult manufacturer for details.

  • Commercial dummy mullion geometries, U-dummy mullion 24 x 6 mm.
  • Catch-locks with bolt.
  • Multiple bolting 3-times.
  • Automatic bolting.
  • Motor-actuated bolting.
  • Vertical bolt for double-leaf doors.
  • Panic fittings according to DIN EN 179/1125.
  • Burglar-resistant locks.

Accessories

-

Manufacturer guidance

Consult manufacturer and insert requirements.

Depth

75 mm.

System types

Manufacturer's standard.
Burglar resistant.

Guidance for specification option:

By using only a few additional components, the RAICO door system can be equipped with burglary-resistant properties in resistance classes RC1, RC2 and RC3.

Air permeability

Class 4 (Class 3 with roller hinge).

Watertightness

Class 9A.

Resistance to wind load

Class C4.

Sustainability data

Material

Aluminium
Glass
Composite
Other
