FP-One Deck - Aluminium Decking System

Verified by manufacturer 2 days ago

Forte Pespa Ltd

Modular aluminium decking system with integrated drainage or free drained, railing support, and levelling pedestals.

Jump to:
+353 (01) 626 5197 Website

Application

Engineered for versatility and long-term performance, this aluminium decking system is particularly suitable for both new construction and adaptive reuse projects. Its modular design and integrated support structure make it particularly well-suited for elevated outdoor environments where drainage, durability, and fire compliance are critical.

Whether installed over structural slabs, steel balcony frames, or podium decks, the system adapts seamlessly to a variety of architectural conditions. It is especially effective in applications requiring integrated balustrade support, precise levelling, and minimal maintenance.

Typical applications include:

  • Residential building apartment balconies.
  • Commercial terrace platforms.
  • Rooftop amenity decks.
  • Public access walkways.
  • Podium-level courtyards.

Description

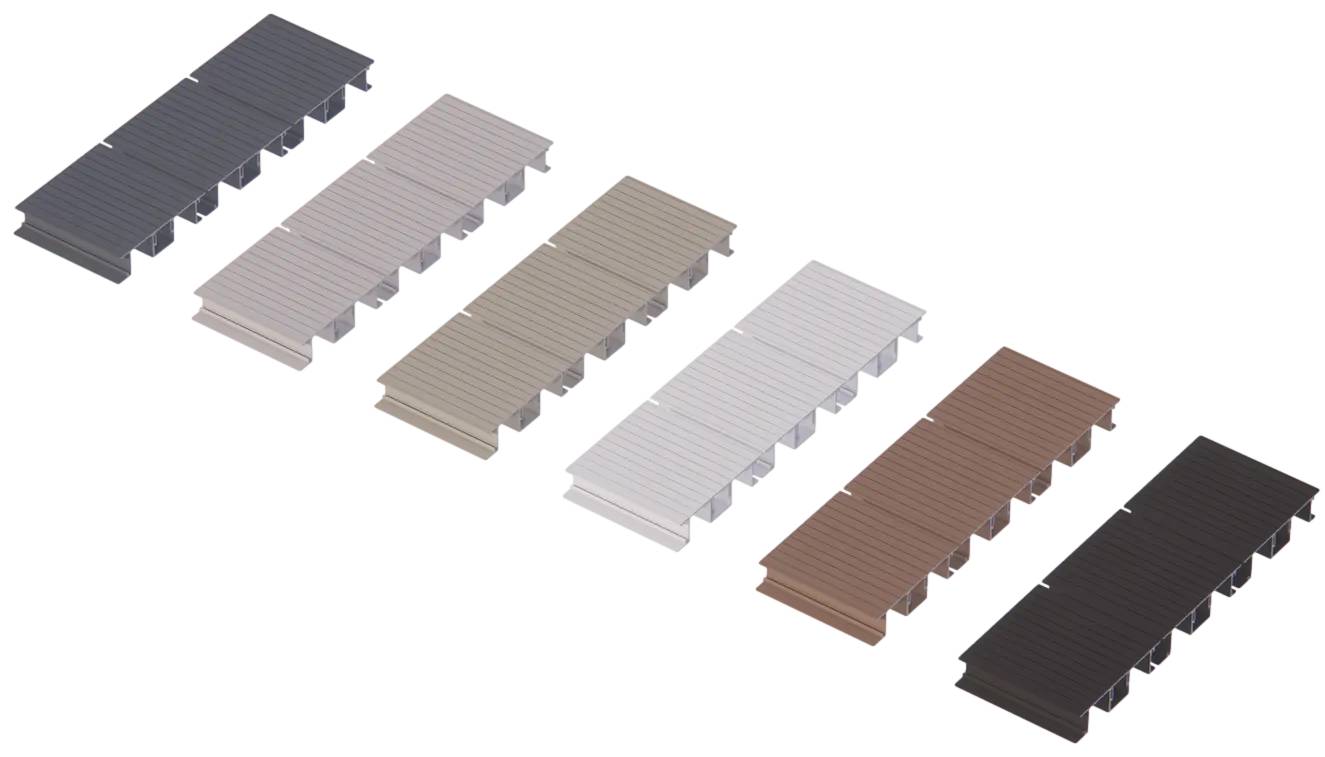

The Forte Pespa Aluminium Decking System is a precision-engineered solution designed for demanding outdoor environments. Available in 23 mm and 34 mm extruded profiles, this system offers both free-draining and controlled-drainage configurations to suit a wide range of project needs. Beneath the decking, a robust BOX-profile structural rail supports integrated balustrade systems, while adjustable aluminium pedestals provide accurate levelling—whether fixed to the structure or free-standing on rigid surfaces.

This system is particularly suitable for projects requiring long-term durability, fire compliance, and minimal maintenance. Its modular format ensures fast installation and adaptability across various applications, from high-rise balconies to rooftop terraces.

Features and benefits:

  • Fire-rated: achieves A2-s1,d0 classification for non-combustibility.
  • Drainage options: choose between open-jointed free-drain or controlled-drainage formats.
  • Integrated structure: BOX-profile sub-rails support balustrades without additional framing.
  • Flexible installation: pedestals can be fixed or free-standing, particularly suitable for retrofit or new build.
  • Sustainable: made from recyclable aluminium with up to 30% recycled content.
  • Low profile: 23 mm and 34 mm board options for minimal build-up.
  • Durability: will not warp, rot, or degrade over time.
  • Finish options: available in a wide range of RAL colours with Qualicoat-certified powder coating.
  • Minimal maintenance: no sealing, staining, or chemical treatments required.
  • Warranty: backed by a 25-year product warranty and 60+ year design life.

This system is a future-proof choice for architects, developers, and contractors seeking a high-performance, visually refined decking solution that meets modern safety and sustainability standards.

General information

Color

Other

Guidance for specification option:

RAL 7016, RAL 7037, RAL 7039, RAL 7040, RAL 8014 and RAL 9005.

Finish

Anti-slip

Powder-coated

Material

Aluminium

Guidance for specification option:

Alcoa aluminium alloy 6063A.

Shape

Rectangle

Length

3500 mm

4500 mm

6200 mm

Width

150 mm

Height

23 mm

34 mm

Warranty description

25 year

Uniclass

Ss_30_20_30_25 Decking systemsPrimary

CAWS

Q55/110 Deck

SKU Code

FP-One Deck-34, FP-One Deck-23

Specification data - Decking systems

Classification data

System performance

Fire-rated/ tested to EN 13501-1, A2-s1,d0, slip-resistant, corrosion-resistant, UV-stable.

Ground preparation

Rigid structural slab.
Balcony frame.

Barrier membrane

Not required.
Required.

Guidance for specification option:

Optional waterproofing layer beneath pedestals.

Consult manufacturer for more details and insert requirements.

Structure

-

Primary structure

Aluminium balcony frame.
Steel balcony frame.
Concrete balcony frame.

Subframe

BOX-profile aluminium structural rails with adjustable levelling pedestals.

Fasteners

Stainless steel concealed fixings.

Deck boards

-

Material

Extruded Alcoa aluminium alloy 6063A.

Fasteners

Hidden clip system with S.S. screw-fixed.
Spaced 5 mm with S.S. screw-fixed.

Guarding

-

Manufacturer guidance

Compatible with glass or metal balustrades; consult manufacturer for more details and insert requirements.

Edge protection

Integrated nosing.
Perimeter trims.

System accessories

Not required.
Levelling pedestals.
Drainage outlets.
Access panels.
End caps.
Trims.
Drainage channels, 5 mm free draining continuous opening.

Guidance for specification option:

C/c 150 mm.

Drainage channels, continuous gutter profile and down pipe.

Guidance for specification option:

Continuous gutter profile with down pipe to be integrated with the building's draining vertical components.

System completion

Visual inspection, drainage test, fixings check.

Length

3500 mm.
4500 mm.
6200 mm.

Width

150 mm.

Thickness

23 mm.

Guidance for specification option:

FP-One Deck-23.

34 mm.

Guidance for specification option:

FP-One Deck-34.

Colour

RAL 7016.
RAL 7037.
RAL 7039.
RAL 7040.
RAL 8014.
RAL 9005.

Third-party certification

Qualicoat certified.

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

Ireland

Material

Aluminium

Guidance for specification option:

Alcoa aluminium alloy 6063A.

Recyclability

100% recyclable

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

-

Manufacturer guidance

Typically 25–30% (post-industrial and post-consumer aluminium).

Expected Life

60 year

Guidance for specification option:

Design life.
