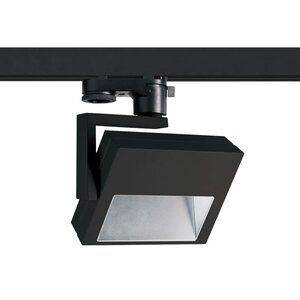

Foss Track Wallwasher Lighting
Application

Great for general lighting in circulation areas and breakout spaces or suitable for cool office lighting or architectural lighting for spaces with high ceilings.

Description

A-symmetric Wallwash track luminaire.

Features and benefits:

  • High visual comfort.
  • Easy installation.
  • The die-cast aluminium body combined with high gloss optics create the innovative anti-glare illumination of UGR <13.
  • Internal ballasts or drivers are supplied.

Also available as a spotlight (specified separately).

Application:

Great for general lighting in circulation areas and breakout spaces or suitable for cool office lighting or architectural lighting for spaces with high ceilings.

General information

Size

152 x 149 mm

Features

The die-cast aluminium body combined with high gloss optics create the innovative anti-glare illumination of UGR <13

Finish

Polyester powder coat

Material

Extruded aluminium profile with LEDs

Shape

Square

Uniclass 2015

Pr_70_70_48_85 Surface luminairesPrimary

CAWS

V90/45 Luminaires

V90/510 Luminaires

Specification data - Surface luminaires Enhanced data

Product Reference

Foss Track Wallwasher - LED

Standard

Directive 2004/108/EC - EMC

Directive 2006/95/EC - Low Voltage

Regulation 1907/2006 - REACH

Directive 2010/30/EC - Labelling

Directive 2011/65/EC - RoHS

Directive 2012/19/EC - WEEE

Third-party certification

Photometrics

Luminaire description

Minimalist, wallwash, rectangle track fitting

Classification

-

Electric shock

Class I

Ingress protection (minimum)

IP20 Rated

Suitability for direct mounting on normally flammable surfaces

Not suitable for direct mounting on normally flammable surfaces

Circumstances of use

Normal use

Rated maximum ambient temperature

25°C

Control gear position

Integral within luminaire

Supply circuit conductor connections

Push terminal

Screw terminal

Nominal voltage

230 V

Luminaire power factor

0.9

LED luminaires

-

Initial LED luminaire efficacy (minimum)

86 Lm/ W

Wattage

15 W/ 1900 lm

Colour temperature

3000K

4000K

Colour rendering index (Ra)

80

Beam angle

100°

Useful life

50 000 hours (L80B20)

Dimming protocol

Non-dimming

Size

152 x 149 mm

Colour

Black

White

Unified glare rating

-

Transverse

<19, meeting the Chartered Institution of Building Services Engineers (CIBSE), Society of Light and Lighting (SLL) and BCO Guide to Lighting Standards

Longitudinal

<19

Driver

-

Frequency

50-60 Hz

Output direction

Direct

Standard product features

Colour:

Available in two standard colours. Custom colours not available.

Features:

The die-cast aluminium body combined with high gloss optics create the innovative anti-glare illumination of UGR <13.

Finish:

Polyester powder coat.

Material:

Extruded aluminium profile with LEDs.

Shape:

Square.

Size:

152 x 149 mm.

Warranty:

Two-year warranty.

Recycled content:

Aluminium and packaging.

Recyclability:

Frame and packaging.

Country of origin:

UK.

Environmental information

Recyclability

Frame and packaging

Recycled content

Aluminium and packaging
