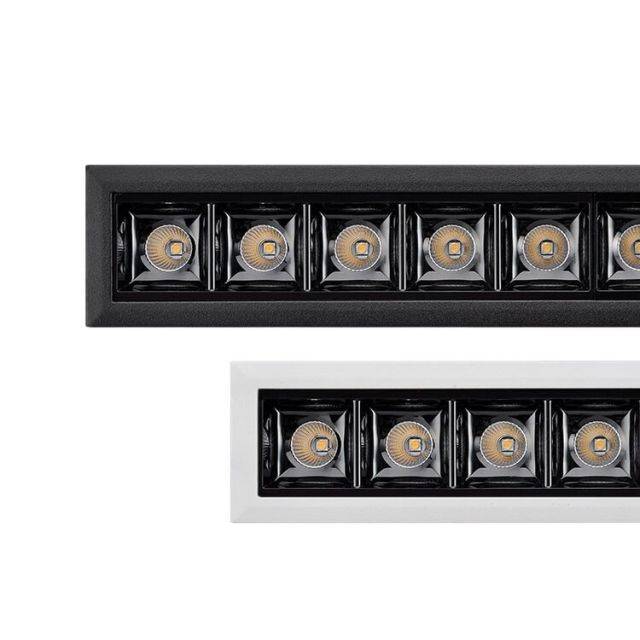

Foss Recessed Trim Fixed Modular Linear Lighting
Application

Suitable for residential or commercial interiors including office, hospitality, retail or as architectural feature lighting.

Description

Fixed, recessed mono and multi-optic linear downlight.

Features and benefits:

  • Spring clip installation.
  • The die-cast aluminium body combined with high gloss optics create the innovative anti-glare illumination of UGR <13.
  • Using one or multiple optics to diffuse the light, a high level of visual comfort is achieved, improving the well-being in workplace.
  • Available in three beam angles 12°/ 34°/ 48°. Offering a great control of light distribution.
  • Internal ballasts or drivers are supplied.

Also available as a spotlight (specified separately).

Application:

Suitable for residential or commercial interiors including office, hospitality, retail or as architectural feature lighting.

General information

Size

45 x 45 mm

73 x 45 mm

149 x 45 mm

282 x 45 mm

Features

The die-cast aluminium body combined with high gloss optics create the innovative anti-glare illumination of UGR <13

Finish

Polyester powder coat

Material

Extruded aluminium profile with LEDs

Shape

Linear module

Uniclass 2015

Pr_70_70_48_71 Recessed luminairesPrimary

CAWS

V90/45 Luminaires

V90/510 Luminaires

Specification data - Recessed luminaires Enhanced data

Product Reference

Foss Recessed Trim Fixed - LED

Standard

Directive 2004/108/EC - EMC

Directive 2006/95/EC - Low Voltage

Regulation 1907/2006 - REACH

Directive 2010/30/EC - Labelling

Directive 2011/65/EC - RoHS

Directive 2012/19/EC - WEEE

Third-party certification

Photometrics

Luminaire description

Traditional, recessed, fixed, rectangular downlight

Classification

-

Electric shock

Class I

Ingress protection (minimum)

IP20 Rated

Suitability for direct mounting on normally flammable surfaces

Not suitable for direct mounting on normally flammable surfaces

Circumstances of use

Normal use

Rated maximum ambient temperature

25°C

Control gear position

Integral within luminaire

Supply circuit conductor connections

Push terminal

Screw terminal

Nominal voltage

230 V

Luminaire power factor

0.98

LED luminaires

-

Initial LED luminaire efficacy (minimum)

125 Lm/ W

Wattage

2 W/ 255 lm or 20 W/ 2440 lm

Colour temperature

3000K

4000K

Colour rendering index (Ra)

80

All modules.

90

5 and 10 module only.

Beam angle

12°

34°

48°

Useful life

50 000 hours (L80B20)

Dimming protocol

Dali-dimming

Non-dimming

As standard.

Integral sensors

Not required

Casambi

Size

45 x 45 mm

73 x 45 mm

149 x 45 mm

282 x 45 mm

Colour

Black

White

Unified glare rating

-

Transverse

<13, meeting the Chartered Institution of Building Services Engineers (CIBSE), Society of Light and Lighting (SLL) and BCO Guide to Lighting Standards

Longitudinal

<13

Driver

-

Frequency

50-60 Hz

Output direction

Direct

Standard product features

Colour:

Available in two standard colours. Custom colours not available.

Features:

The die-cast aluminium body combined with high gloss optics create the innovative anti-glare illumination of UGR <13.

Finish:

Polyester powder coat.

Material:

Extruded aluminium profile with LEDs.

Shape:

Linear module.

Size:

Four sizes available with 1, 2, 5 and 10 modules.

Warranty:

Two-year warranty.

Recycled content:

Aluminium and packaging.

Recyclability:

Frame and packaging.

Country of origin:

UK.

Environmental information

Recyclability

Frame and packaging

Recycled content

Aluminium and packaging
