Application

For applications requiring a ceiling which is mechanically secured to the structural soffit.

Description

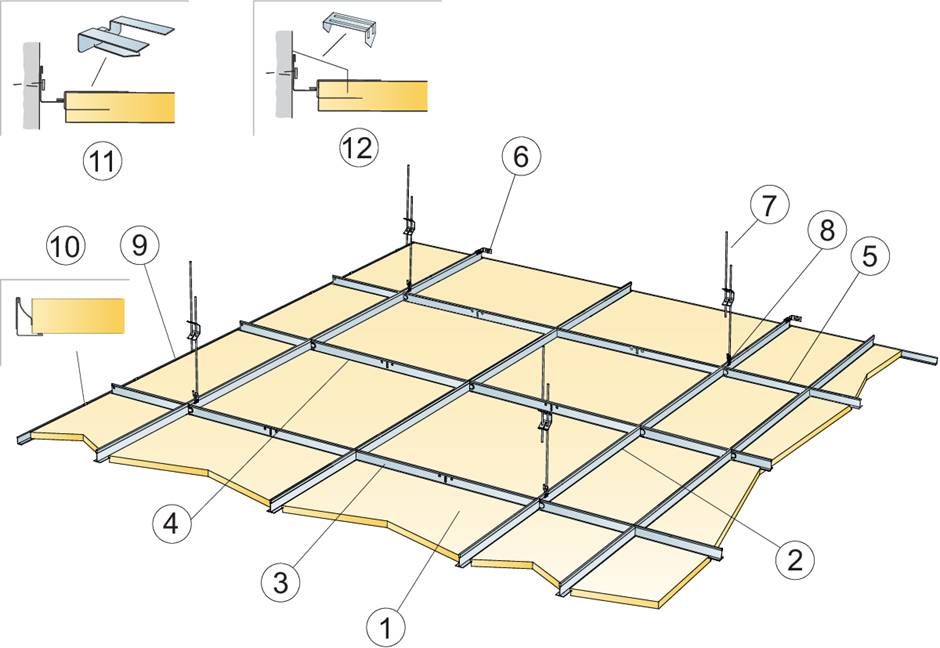

Ecophon Focus™ Lp has a semi-concealed grid system and is used for highlighting direction in a room. There is a 20 mm-wide gap between the tiles in the emphasized direction and a narrow gap in the other. Ecophon Focus™ Lp is a patented system, with edges which are sharp and well defined. The system consists of standard Focus™ Lp tiles in 600 or 300 mm width, and Focus™ Lp Technical tiles in widths of 150, 300 or 600 mm.

The tiles and Connect™ grid systems give an approximate weight of 3–4 kg/m² for the system.

Features and benefits:

  • The tiles are manufactured from high-density glass wool.
  • The visible surface has an Akutex™ FT coating, and the back of the tile is covered with glass tissue. The edges are painted.

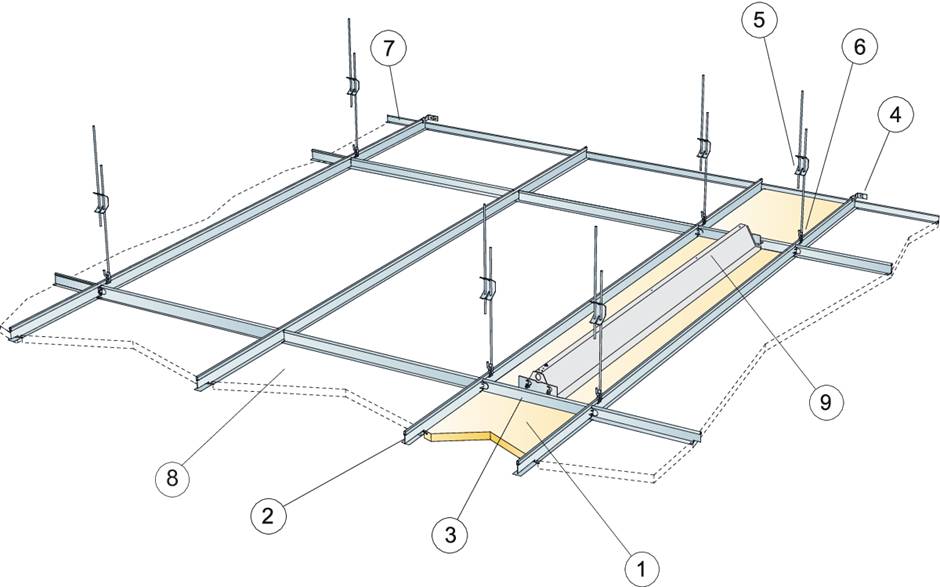

  • The technical tiles are used to create areas for technical installations such as modular luminaires, ventilation, sprinklers, smoke detectors, loudspeakers, etc. in conjunction with standard tiles.
  • The exact width (148, 298 or 598 mm) is adopted to suit the standard sizes of luminaires on the market. The gap between a technical tile and a standard tile will therefore be 11 mm.
  • The grid is manufactured from galvanized steel.
  • For best performance and system quality, use Connect™ grid and accessories.

Application:

For applications requiring a ceiling which is mechanically secured to the structural soffit.

General information
Finish

Akutex FT – the surface allows almost 100% of the sound energy to penetrate into and be absorbed by the glass wool. Painted edges

Features

Semi-concealed grid system; patented system with edges which are sharp and well defined

Material

Tiles: high-density glass wool

Grid: galvanized steel

Shape

Square or rectangular

Size

Eleven sizes available

WarrantyDescription

Full warranty available upon request

Uniclass 2015 Unit/ modular suspended ceiling systems (Ss_30_25_22_90)
Specification data
Product Reference

Focus Lp

Ceiling support

Interlocking Connect™ T24 HD grid

Support fasteners

Adjustable hangers/ wire

105 mm overall system depth.

Ceiling units

High-density glass wool tiles

System accessories

None

None

Connect™ Bridging Profile and Clip

For luminaire integration in panels.

Connect™ Lighting Clip

Edge 500

Perimeter raft profile.

Edge sealant

Insert colour requirement; consult manufacturer for information.

Focus Frieze Dg/Ds Panel, 2400 x 600 mm

Plasterboard margin (perimeter tile).

Focus Wing Ds

Perimeter profile.

Tile -
Size (l x w)

600 x 150 mm

Technical tile.

600 x 300 mm

600 x 300 mm

Technical tile.

600 x 600 mm

600 x 600 mm

Technical tile.

1200 x 150 mm

Technical tile.

1200 x 300 mm

1200 x 300 mm

Technical tile.

1200 x 600 mm

1200 x 600 mm

Technical tile.

1800 x 600 mm XL

Thickness

20 mm

Colour/ Finish

Cloudy Day

Nearest NCS colour sample S 1500-N, 62% light reflectance.

Scallop Shells

Nearest NCS colour sample S 1515-Y80R.

Peach Rose

Nearest NCS colour sample S 1515-Y80R.

Goji Berry

Nearest NCS colour sample S 3030-Y80R.

Sage Garden

Nearest NCS colour sample S 3010-B30G.

Eucalyptus Leaf

Nearest NCS colour sample S 5010-B30G.

Summer Forest

Nearest NCS colour sample S 6030-G10Y.

Dark Diamond

Nearest NCS colour sample S 9000-N, 4% light reflectance.

Golden Field

Nearest NCS colour sample S 1040-G90Y, 61% light reflectance.

Highland Fog

Nearest NCS colour sample S 2005-G, 55% light reflectance.

Moonlight Sky

Nearest NCS colour sample S 7020-R90B, 7% light reflectance.

Morning Drizzle

Nearest NCS colour sample S 1002-B, 69% light reflectance.

Ocean Storm

Nearest NCS colour sample S 4020-R90B, 24% light reflectance.

Ruby Rock

Nearest NCS colour sample S 4050-R10B, 7% light reflectance.

Silent Steam

Nearest NCS colour sample S 2010-B, 45% light reflectance.

Silk Slate

Nearest NCS colour sample 7000-N, 13% light reflectance.

Silver Stone

Nearest NCS colour sample S 4502-Y, 29% light reflectance.

Sunset Heat

Nearest NCS colour sample S 2070-Y60R, 20% light reflectance.

Volcanic Ash

Nearest NCS colour sample 2002-Y, 56% light reflectance.

White Frost

Standard. White 500, Nearest NCS colour sample S 0500-N, 85% light reflectance (of which more than 99% is diffuse reflection). Retro reflection coefficient 63 mcd/(m2lx). Gloss <1.

Grid colour

Black 01 matt

Grey 01 metallic

White 010

Trim

Connect™ Angle Trim C1

Lighting

None

Ecophon Line, 1200 x 150 mm

White.

Ecophon Line, 1200 x 300 mm

White.

Weight

3–4 kg/m² (approximate, including Connect grid system)

Demounting depth (minimum)

20 mm

Indoor climate

Recommended by the Swedish Asthma and Allergy Association. Certified as A+ by French VOC. Emission classification of building materials: M1

Moisture resistance

The tiles withstand a permanent ambient RH of up to 70% at 25°C, following the test standard in EN 13964

Fire safety

Complies with BS EN 13501-1, Class A2-s1, d0

Sound absorption

200 mm-deep system: in accordance with EN ISO 11654, Class A

Sound insulation

24 dB Dnfw weighted normalized flanking level difference (to ISO 10848-2)

Ceiling attenuation class

25 dB (to ASTM 1414 and ASTM E413)

Articulation Class

180 AC (1.5) (to ASTM E1111 and ASTM E1110)

Cleaning

The ceiling system can withstand daily dusting and vacuum cleaning, and weekly wet-wiping

Standard product features

Colour:

Wide range available.

Features:

Semi-concealed grid system; patented system with edges which are sharp and well defined.

Finish:

Akutex FT – the surface allows almost 100% of the sound energy to penetrate into and be absorbed by the glass wool. Painted edges.

Material:

  • Tiles: high-density glass wool.
  • Grid: galvanized steel.

Shape:

Square or rectangular.

Size:

Eleven sizes available.

Warranty description:

Full warranty available upon request.

Recycled content:

>52%.

Embodied carbon:

4.21 kg CO₂, equiv/m² in conformity with ISO 14025/ EN 15804.

Red Listed materials:

All Ecophon products are free from substances of very high concern (SVHC) and any compound on the list of REACH in the EU.

Country of origin:

Sweden, Finland or Poland.

Environmental information
Embodied carbon

4.21 kg CO₂, equiv/m² in conformity with ISO 14025/ EN 15804

Recycled content

>52%
