Description

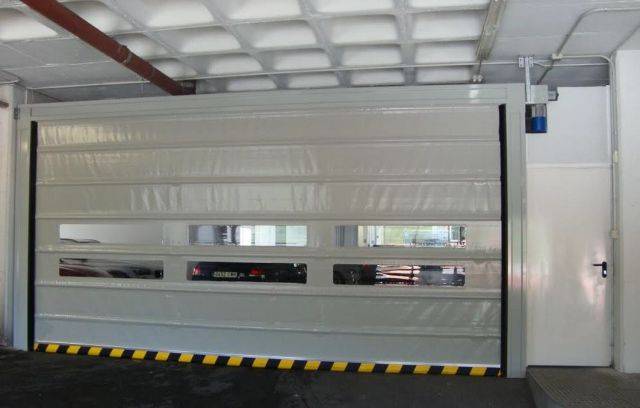

Fast action PVC roller shutters available in many formats to suit the desired application. All models offer a barrier between two areas that is lightweight and able to open and close very quickly using a number of 'trigger' methods including remote control, radar, pressure pads and many more. Typically the shutters might be used in areas concerned about climate control and/ or hygiene such as car garages or food factories.

Safedrive Fi system:

Specifically developed for powering a range of non-balanced doors where speed, frequency of use and durability are key requirements. All models incorporate the features of the Safedrive with the added benefits of a frequency inverter. All drives come with a hand crank as standard, but are available with low level hand chain operation.

General information
Specification data - Roller shutters
Product Reference

FNRLL

Shutter -
Colour

Black, RAL 9005

Bleu, RAL 5010

Dark blue, RAL 5002

Dark grey, RAL 7037

Green, RAL 6026

Ivory, RAL 1014

Light blue, RAL 5005

Light grey, RAL 7038

Light orange, RAL 2008

Red, RAL 3020

White, RAL 9016

Yellow, RAL 1003

Control panel

A range is available, consult manufacturer and insert requirements.

Motor

A range is available, consult manufacturer and insert requirements.

Opening system

Magnetic detector

Photocell

Pull chain

Push button

Radar

Radio transmitter

Standard product features

Shutter curtain:

Made from polyurethane enamel coloured, high strength PVC which sits inside a metallic frame with a top mounted mechanism, made of 2 mm thickness steel plate with an airtightness closure due to lateral brushes. The door blade is reinforced with horizontal bars made of steel offering a high resistance.

Manufacturing standards:

  • Fully CE marked.
  • Mechanical aspects: BS EN 12604, safety in use of power assisted doors.
  • Side guide protection: BS EN 12604-4.5.1 and BS EN 12453-5.1.1.3.
  • Protection: Against crushing, shearing or drawing in.
  • Electrical safety: Depending on use.
  • Watertightness: To BS EN 12489.
  • Resistance to windload: To BS EN 12444.
  • Thermal resistance: To BS EN 12428.
  • Air permeability: To BS EN 12427.
  • Opto safety edge self-monitoring: To BS EN 12453-5.1.1.5.
  • Anti-fall back device: To BS EN 12453-5.1.1.5.
  • Durability of mechanical performance: To BS EN 12635-4.1.1.1.
  • Power supply: 230/ 400 V three phases with neutral.
  • Motor protection level: IP54 or IP64 according to the installation requirement.
  • Opening and closing speed: 0/9 m/s.
  • Motor power: 0.75 CV (according to door dimensions).
  • Blade: Polyester PVC with a thickness of 900 g/m² and M2 class for fire resistance.
