Flushjoint 150 mm round pipework
Description

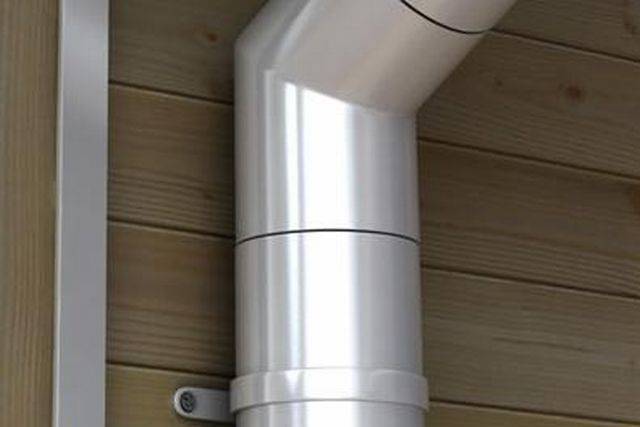

Flushjoint is a range of heavy grade extruded aluminium circular and rectangular pipes, with flush spigot joints between pipes and fittings. The Flushjoint rainwater downpipe system has high impact resistance. The material hardness and fixing mechanisms give excellent rigidity.

Flushjoint is available in four standard pipe diameters and three alternative square/ rectangular sections. It can be used with any Alumasc Aluminium Gutter System, providing the girth of the gutter is sufficient to accommodate the cross sectioned area of the pipe. Running outlets are made to order according to choice of gutter and project requirements.

General information

Material

Extruded aluminium to BS EN 515, BS EN 573, BS EN 755 and BS EN 12020 from grade 6063 T6 alloy. Drift tested at works

Specification data

Product Reference

CP60 Flushjoint 150 mm round pipework

Colour/ Finish

Plain mill finish

RAL 1011m Brown Beige

Polyester powder-coated.

RAL 1013m Pearl White

Polyester powder-coated.

RAL 1021m Cadmium Yellow

Polyester powder-coated.

RAL 2002m Vermilion

Polyester powder-coated.

RAL 3003m Ruby Red

Polyester powder-coated.

RAL 3005m Wine Red

Polyester powder-coated.

RAL 5003m Sapphire Blue

Polyester powder-coated.

RAL 5010m Flower Blue

Polyester powder-coated.

RAL 6005m Moss Green

Polyester powder-coated.

RAL 6018m Yellow Green

Polyester powder-coated.

RAL 7005m Mouse Grey

Polyester powder-coated.

RAL 7006m Beige Grey

Polyester powder-coated.

RAL 7012m Basalt Grey

Polyester powder-coated; also available in a textured finish.

RAL 7015m Slate Grey

Polyester powder-coated; also available in a textured finish.

RAL 7016m Anthracite Grey

Polyester powder-coated; also available in a textured finish.

RAL 7024m Graphite Grey

Polyester powder-coated; also available in a textured finish.

RAL 7036m Platinum Grey

Polyester powder-coated.

RAL 7037m Dusty Grey

Polyester powder-coated.

RAL 7038m Agate Grey

Polyester powder-coated; also available in a textured finish.

RAL 8017m Chocolate Brown

Polyester powder-coated.

RAL 8019m Grey brown

Polyester powder-coated.

RAL 9006m Metallic Silver

Polyester powder-coated.

RAL 9006g Metallic Silver (80% Gloss)

Polyester powder-coated.

RAL 9016m White

Polyester powder-coated; also available in a textured finish.

RAL 9017m Black (60% Gloss)

Textured Black

Bespoke, RAL or BS

Polyester powder-coated. Consult literature for details and insert requirements.

Pipes

CP60/2MA, length 2000 mm

CP60/3MA, length 3000 mm

Contractor's choice

As drawing ___

Fittings

-

Bends

Not required

CP60/B/92A, 92.5° bend

CP60/B/112A, 112.5° bend

CP60/B/135A, 135° bend

Contractor's choice

As drawing ___

Branches

Not required

CP60/BR/92A, 92.5° branch

CP60/BR/112A, 112.5° branch

CP60/BR/135A, 135° branch

Contractor's choice

As drawing ___

Access pipe

Not required

CP60/ACPA

As drawing ___

Offset (two part)

Not required

CP60/250/92A, 92.5°, 250 mm offset

CP60/500/92A, 92.5°, 500 mm offset

CP60/750/92A, 92.5°, 750 mm offset

CP60/1000/92A, 92.5°, 1000 mm offset

CP60/250/112A, 112.5°, 250 mm offset

CP60/500/112A, 112.5°, 500 mm offset

CP60/750/112A, 112.5°, 750 mm offset

CP60/1000/112A, 112.5°, 1000 mm offset

CP60/250/135A, 135°, 250 mm offset

CP60/500/135A, 135°, 500 mm offset

CP60/750/135A, 135°, 750 mm offset

CP60/1000/135A, 135°, 1000 mm offset

Contractor's choice

As drawing ___

Shoe

Not required

CP60/SHA

Contractor's choice

As drawing ___

Pipe clips

RW60/PC clip

Standard product features

Material:

Extruded aluminium to BS EN 515, BS EN 573, BS EN 755 and BS EN 12020 from grade 6063 T6 alloy. Drift tested at works.

Dimensions (pipes):

Diameter (external): 152 mm.

Product Options

Colour/ Finish:

Polyester powder coated to BS EN 12206-1: 2004. The standard range of colours is produced with a 30% gloss finish unless otherwise stated. Coating to have BBA certificate.
