Flushglaze Fixed Eaves Rooflight

Verified by manufacturer 5 months ago

Double glazed ridgeglaze

Glazing Vision Ltd Variant:
Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

  • Qualicoat approval

    Qualicoat approval

    Certificate type

Glazed dual pitched eaves rooflight with aluminium frame comprising of vertical and horizontal sections with silicone seal at the join.

Jump to:
BOS
+44 (0)1379 658300 Website

Application

Suitable for flat and pitched roof.

Description

A range of fixed rooflights available in various specifications, shapes and sizes. Flushglaze fixed rooflights are designed to provide maximum daylight with minimal visible internal structure.

The Flushglaze rooflight range was the first in the UK to be certificated by the British Board of Agrément with tests being carried out to determine air permeability, water tightness, durability of sealants, resistance to intrusion and cyclic loads. Flushglaze rooflights have also been rated Secured by Design and tested to LPS2081 Issue 1: 2015 so that they are compliant with Approved Document Q: Security in Dwellings. The Flushglaze range also features a Qualicoat approved powder coated finish.


Flushglaze (Double Glazed) Rooflight:

A fixed glazing system comprising of painted aluminium extrusion and double glazed unit. Available in either single or multipart format, the latter consisting of multiple sections of glazing using silicone seal or back to back angles.

Flushglaze Secure and Secure+ (Secured by Design) Rooflight:

A fixed glazing system comprising painted aluminium extrusion and double glazed unit. Available in either single or multipart format, the latter consisting of multiple sections of glazing. Tested and approved to LPS2081 Issue 1:2015.

Flushglaze (Fire Rated) Rooflight:

A fixed glazing system comprising painted aluminium extrusion and double glazed fire rated unit. Available in single part format only. Performance tested to achieve 30 minutes integrity and insulation.

Flushglaze (Ridgeglaze) Rooflights:

A fixed glazing system comprising painted aluminium extrusion and double glazed unit. Designed for installation along the ridge of a roof (Ridgeglaze). Available in single format only.

Flushglaze (Eaves) Rooflights:

A fixed glazing system comprising painted aluminium extrusion and double glazed unit. Designed to be installed within the eaves of a building with a vertical and horizontal pane. Available in single format only.

Flushglaze (Triple Glazed) Rooflight:

A fixed glazing system with improved thermal performance comprising painted aluminium extrusion and triple glazed unit. Available in either single or multipart format, the latter consisting of multiple sections of glazing.

Flushglaze (Walk-On) Rooflight:

A fixed glazing system comprising painted aluminium extrusion and double glazed walk-on unit. Available in either single or multipart format, the latter consisting of multiple sections of glazing.


Features and benefits:

  • Dual aspect design, no visible fixings, no external capping, heat soak tested low-e safety glass as standard
  • Visual quality of glass: To the Hadamar standard.
  • To LPS 2081, ISO 9001 and ISO 14001.
  • British Board of Agrément (BBA) - certficate.
  • Loss Prevention Certification Board (LPCB): certificated product.
  • National Association of Rooflight Manufacturers (NARM): Members.
  • Qualicoat: approved applicator.

General information

Color

Grey

Guidance for specification option:

Standard, RAL 7015 slate grey.

Other

Guidance for specification option:

RAL, special order.

Finish

Powder-coated

Guidance for specification option:

Qualicoat approved.

Material

Aluminium

Glass

Shape

-

Manufacturer guidance

Angled.

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Ten year

Guidance for specification option:

If installed by Glazing Vision Ltd

Two year

Guidance for specification option:

If installed by alternate supplier

Uniclass

Pr_30_59_72_31 Framed rooflightsPrimary

CAWS

L10/45 Rooflights

L10/460 Rooflights

Specification data - Framed rooflights

Form

Angled.

Size

Guidance for specification option:

As drawing and schedule.

Frame

-

Material

Aluminium.

Guidance for specification option:

Extruded aluminium profiles, grade 6063 T6. Polyester powder coated, with concealed fixings (except circular variants).

Finish

-

Coating

Powder coating.

Guidance for specification option:

To the Qualicoat Standard.

Colour

RAL 7015, slate grey.

Guidance for specification option:

Standard.

RAL, special order.

Guidance for specification option:

Consult manufacturer and insert requirements.

Glazing or infill

-

Type

Insulating glass units.

Construction

Double glazed ridgeglaze.

Manufacturer guidance

Minimum glass specifications (may change subject to size/application).

Colour

Clear.

Integral kerb

Guidance for specification option:

Consult manufacturer.

Operation

-

Type

Fixed.

Accessories

Not required.

Kerb cover extrusion.

Guidance for specification option:

To mask the structure of the kerb top from external visibility and provide a plaster stop bead.

Enduroshield easy clean glass treatment.

Execution

Installation of framed rooflights.

Type

Round.

Guidance for specification option:

Not available for Ridgeglaze or Eaves Flushglaze.

Square.

Special order.

Guidance for specification option:

Insert requirement.

Height

Guidance for specification option:

Insert requirement, 150 mm minimum.

Manufacturer guidance

Kerb height.

Thickness

Guidance for specification option:

Insert requirement, 75 mm minimum.

Manufacturer guidance

Kerb thickness.

Seals

Silicone, poly-butyl and EPDM rubber seals.

Security

Secure and Secure+ Flushglaze approved to LPS2081 Issue 1:2015.

Guidance for specification option:

Secured by Design tested.

Glass

Solo.

Modular with silicone seals at the join.

Modular with aluminium back to back angles at the join.

Modular with glass fins at the join.

Wall abutted (maximum three sides).

Show more

Manufacturer guidance

Flushglaze configurations.

Treatment

Enduroshield Easy Clean Treatment.

Guidance for specification option:

Gives a non-stick surface making the glass easier to clean and keep clean, stay clean for longer and resist staining and discoloration.

Privacy glass.

Guidance for specification option:

Sand blasting or acid etched glass is available either in 100% coverage or patterns to your specification.

Non slip.

Guidance for specification option:

Anti slip frit patterns available for walk on specification glass in standard ‘dot matrix’ design or patterns to your specification.

Kerb top trim.

Guidance for specification option:

Hides the upstand and internal finishes such as plasterboard and insulation when viewed through the glass from above.

Manufacturer guidance

Glass treatments.

Outer

6 mm clear toughened heat soak tested.

Manufacturer guidance

Glazing.

Spacer

16 mm black silicone sealed argon filled cavity with warm edge spacer bar.

Manufacturer guidance

Glazing.

CenterCoreSpacing

Not applicable.

Manufacturer guidance

Glazing.

Inner

8.8/ 9.5 mm clear soft low E laminated.

Manufacturer guidance

Glazing.

Sustainability data

Country of material origin

Europe

Country of product manufacture

United Kingdom

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC

IFC2X3

1

Revit

Revit 2016

2

Third party certifications

BBA Agrément Certificate

BBA Agrément Certificate

British Board of Agrément (BBA)

Qualicoat approval

Qualicoat approval

Qualicoat Certificate

Literature

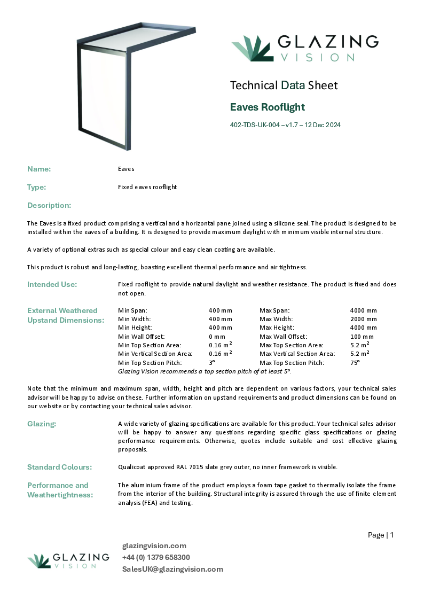

Flushglaze Eaves Rooflight Technical Data Sheet
