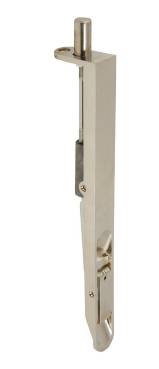

Flush Bolt Lever Action (HUKP-0105-03) - Door accessories
Verified by manufacturer 2 months ago
Stainless steel lever-action flush bolt.
Description
Stainless steel lever-action flush bolt.
Features and benefits:
- Radius ends in satin stainless steel.
- Available in five lengths.
- Suppled with matching fixings.
- Tested in accordance with BS EN 12051:1999.
- Tested to BS EN 1634-1.
General information
Color | Silver |
Finish | Satin |
Material | Stainless steel |
Length | 200 mm Guidance for specification option: Manufacturers standard. 150 mm 305 mm 457 mm 609 mm |
Width | 20 mm Guidance for specification option: Cut-out depth. Manufacturer guidanceMaximum depth of cut out consult manufacturers fitting instructions. |
Warranty description | Ten year |
Uniclass | |
CAWS | P21/34 Door bolts P21/582 Door bolts |
SKU Code | HUKP-0105-03 |
Product range |
Specification data - Single point bolts
Classification data | |
Standard | To BS EN 12051:1999 and BS EN 1634-1. |
Bolt type | Flush lever. |
Size | 200 mm. 150 mm. 305 mm. 457 mm. 609 mm. Manufacturer guidance20 mm wide. |
Material and finish | Satin stainless steel, grade 1.4401 (316). |
Colour | Silver. |
Integral accessories | Flat shoot plate as standard. |
Literature
