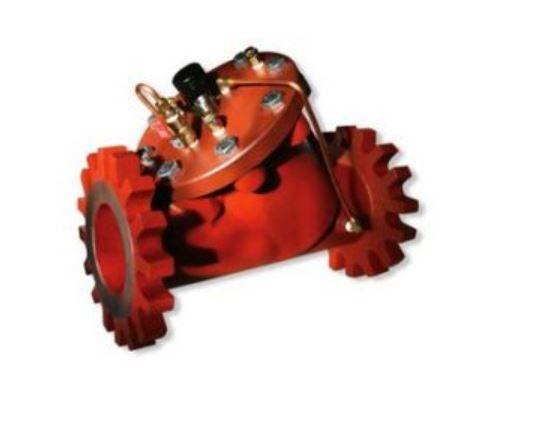

FlowCon PIM-DP Adjustable Differential Pressure Control Valve
Verified by manufacturer 5 months ago
PIMDP.0.J DN65, DN80
PIMDP.0.J DN65, DN80
Statement of compliance
Certificate type
Adjustable differential pressure control valve.
Application
In heating systems the FlowCon DPCVs are primarily used on risers or branches with the aim of maintaining a constant differential pressure between the supply and return side and reducing the risk of noise. In cooling systems, the DPCVs are installed to absorb any pressure fluctuations introduced by system load-changes which leads to better balance and improved energy consumption. FlowCon ADP also fits as zone control is small circuits.
Description
FLOWCON PIM-DP externally adjustable differential pressure control valve.
Features and benefits:
- Pressure rating: 16 Bar
- Temperature rating: -20°C to +120°C
- Sizes: 65 – 150mm
- Body Material: Ductile Iron ASTM A395, 60-40-18. Inserts: AISI type 304 Stainless Steel. Elastomer: EPDM. Capillary Tube: Copper.
- Maximum Operational ∆p: 400 kPaD
- Maximum close off pressure: 800 kPaD
- Differential Pressure Control range: 25 kPaD to 170 kPaD
- Adjusted with 15 mm Allen Key
- FlowCon Partner Globe Valve available.
General information
Color | Red |
Material | Iron Stainless steel Rubber |
Warranty description | 18 months |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Third party certifications
Statement of compliance
FlowCon PIM DPCV PED Certificate
Statement of compliance
FlowCon Registration, Evaluation, Authorisation and Restriction of Chemicals [REACH]
Literature
FlowCon PIM Externally Adjustable DPCV
FlowCon Differential Pressure Control Valve Range
