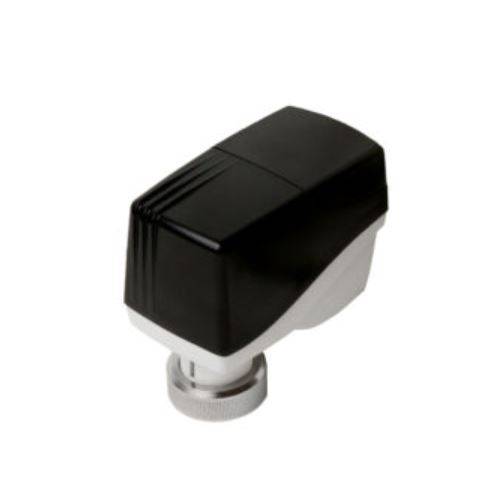

FlowCon FNP Actuator

Verified by manufacturer 5 months ago

FlowCon FNP Actuator

FLOCONTROL LTD Third party certifications:
  • UK Conformity Assessed (UKCA)

    UK Conformity Assessed (UKCA)

    Certificate type

  • Statement of compliance

    Certificate type

FlowCon FNP Actuator

Jump to:
+44 1282 564425 Website

Application

For FlowCon GreEQ and Green.0/1/1HF/2 Pressure Independent Control Valves.

Description

For FlowCon GreEQ, Green.0/1/1HF/2 Pressure Independent Control Valves.


Features and benefits:

  • Electrical actuators, 24V
  • 0(2)-10V modulating
  • Standard with electrical override
  • Settable control characteristics (linear control or equal percentage control)
  • Settable control direction (NO/NC)
  • Auto cycle available
  • Position indicator
  • IP54.

General information

Color

Black

White

Silver

Length

86.5 mm

Width

48.5 mm

Height

80 mm

Warranty description

18 months

Uniclass

Pr_75_50_02_54 Motor-driven valve actuatorsPrimary

CAWS

T90/435 Motorized valves

Product range

FlowCon PICVs

Specification data - Motor-driven valve actuators

Standards

To BS EN 60730.

Actuator type

Electric.

Stroke

5.8 mm.

Operation

Modulating.

Electrical supply

24 V.

Type:

FNP.0.2

Sustainability data

Contains Red List materials

No

Country of product manufacture

Germany

Third party certifications

UK Conformity Assessed (UKCA)

UK Conformity Assessed (UKCA)

FlowCon FNP Actuator UKCA Certificate

Statement of compliance

Statement of compliance

FlowCon Restriction of Hazardous Substances [RoHS]

Statement of compliance

Statement of compliance

FlowCon Waste from Electrical and Electronic Equipment Statement [WEEE]

Literature

FlowCon FNP Actuator

FlowCon FNP Actuator

FlowCon Actuator Selection Matrix

FlowCon Actuator Selection Matrix
