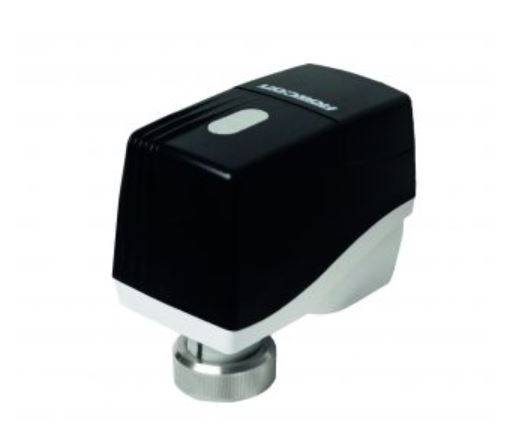

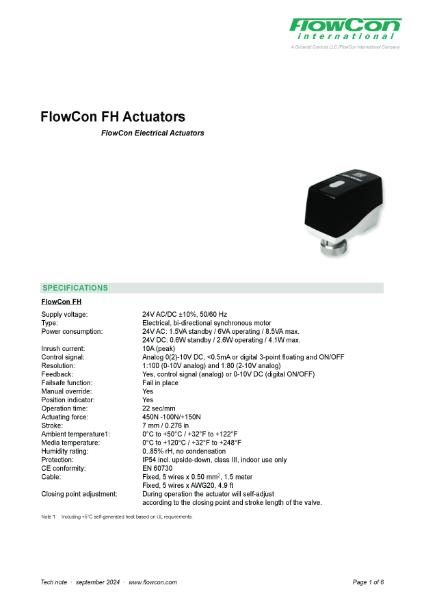

FlowCon FH Actuators

For FlowCon Green.3 Pressure Independent Control Valves.

Features and benefits:

• Supply voltage: 24 V a.c./d.c. ±10%, 50/60 Hz.
• Bi-directional synchronous motor.
• Analog 0(2)–10 V d.c., <0.5 mA or digital three-point floating and ON/OFF.
• 22 second/mm operation time.
• Ambient temperature: 0°C to +50°C.
• Media temperature: 0°C to +120°C.
• Standard cable length: 1.5 m, extended cable available upon request.
• IP54 rated.
• Feedback, failsafe, manual override and position indicator.
• Available with BUS or BACnet communication. BUS supports Delta T, Temperature control and a combination of both, turning the PICV effectively into a very compact, cost effective SMART ENERGY Valve.
