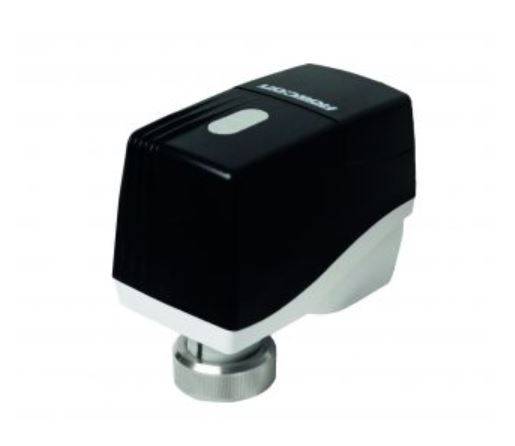

FlowCon FH Actuators
Verified by manufacturer 5 months ago
FlowCon FH
FlowCon FH
UK Conformity Assessed (UKCA)
Certificate type
Statement of compliance
Certificate type
FlowCon FH Actuator
Application
Fit on Green.3 PICV.
Description
For FlowCon Green.3 Pressure Independent Control Valves.
Features and benefits:
- Supply voltage: 24 V a.c./d.c. ±10%, 50/60 Hz.
- Bi-directional synchronous motor.
- Analog 0(2)–10 V d.c., <0.5 mA or digital three-point floating and ON/OFF.
- 22 second/mm operation time.
- Ambient temperature: 0°C to +50°C.
- Media temperature: 0°C to +120°C.
- Standard cable length: 1.5 m, extended cable available upon request.
- IP54 rated.
- Feedback, failsafe, manual override and position indicator.
- Available with BUS or BACnet communication. BUS supports Delta T, Temperature control and a combination of both, turning the PICV effectively into a very compact, cost effective SMART ENERGY Valve.
General information
Color | Black White Silver |
Warranty description | 18 months Manufacturer guidance18 Months |
Uniclass | |
CAWS | T90/435 Motorized valves |
Product range |
Specification data - Motor-driven valve actuators
Standards | To BS EN 60730. |
Actuator type | Electric. |
Stroke | 5.8 mm. |
Operation | Modulating. |
Electrical supply | 24 V. |
Type: | Standard. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | Germany |
Third party certifications
UK Conformity Assessed (UKCA)
FlowCon FN/FH Actuator Range UKCA Certificate
Statement of compliance
FlowCon Restriction of Hazardous Substances [RoHS]
Statement of compliance
FlowCon Waste from Electrical and Electronic Equipment Statement [WEEE]
