FlowCon EDP Externally Adjustable Differential Pressure Control Valve
Verified by manufacturer 5 months ago
EDP.1.01.x.y.z - DN 15
EDP.1.01.x.y.z - DN 15
Statement of compliance
Certificate type
Externally adjustable differential pressure control valve, removable insert.
Application
In heating systems the FlowCon DPCVs are primarily used on risers or branches with the aim of maintaining a constant differential pressure between the supply and return side and reducing the risk of noise. In cooling systems, the DPCVs are installed to absorb any pressure fluctuations introduced by system load-changes which leads to better balance and improved energy consumption.
Description

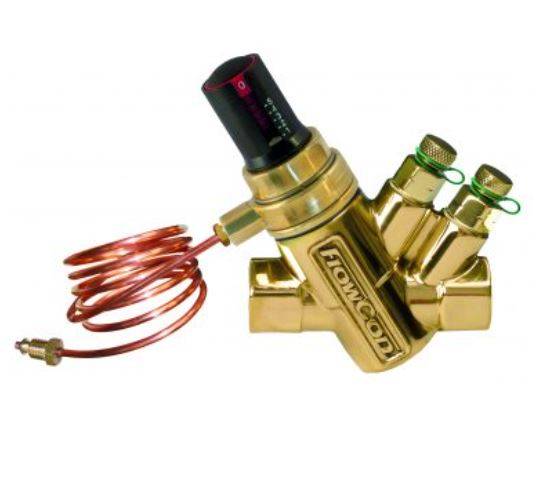

FLOWCON EDP externally adjustable differential pressure control valve.
Features and benefits:
- Pressure rating: 25 Bar.
- Temperature rating: -20°C to +120°C.
- Sizes: ½–2″ female threaded, Union connections (male/solder).
- Body material: A DN15-20 / ½”-¾”: Forged DZR brass ASTM CuZn36Pb2As
- A DN25 / 1”: Forged brass ASTM CuZn40Pb2
- AB DN15-25 / ½”-1”: Forged DZR brass ASTM CuZn36Pb2As
- AB DN25-50 / 1”-2”: Forged brass ASTM CuZn40Pb2
- AB DN40-50 / 1½”-2”: Ductile iron QT450-10 GB1348 / EN-GJS-450-10
- ABV DN15-40 / ½”-1½”: Forged brass ASTM CuZn40Pb2
- Maximum operational ∆p: 500 kPaD.
- Differential pressure control range: 5 to 100 kPaD.
- FlowCon Partner Ball Valve and Quick Disc™ available.
General information
Color | Gold |
Finish | Brass |
Material | Brass |
Warranty description | 18 months |
Uniclass | |
CAWS | S14/393 Pressure regulators |
Product range |
Specification data - Differential pressure control valves
Pressure rating | 25 Bar. |
Differential pressure (maximum) | 5–50 kPaD. |
Temperature range | -20°C to +120°C. |
Material | Body Material: Forged brass ASTM CuZn40Pb2. DZR CuZn36pb2As. Inserts: Glass-reinforced PPS/POM. Elastomer: EPDM. |
Accessories | ACC00110.Guidance for specification option: Capillary tube with fittings for connection to FlowCon QuickDisc partner valve. ACC00210.Guidance for specification option: Capillary tube with fittings for connection to FlowCon standard body tappings. ACC00121.Guidance for specification option: 1/4" to M8 adaotir according to ISO 7.1 - compatible with FlowCon standard body tappings. ACC0001.Guidance for specification option: Adjustment key. |
Type: | EDP.1.01.x.y.z. Guidance for specification option: 20 mm (¾") EDP insert; AB DN15 (½"). Manufacturer guidanceConsult technical literature for details and insert requirements. Complete product code required to define:
|
Sustainability data
Country of product manufacture | Denmark |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 70 % |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
