Floor Springs

Name: Floor Springs
Brand: ck3qNqr5euFacoStUuxv99
SKU: opdGdxBKhuhzQQNohCJZNL

ASSA ABLOY Opening Solutions UK & Ireland

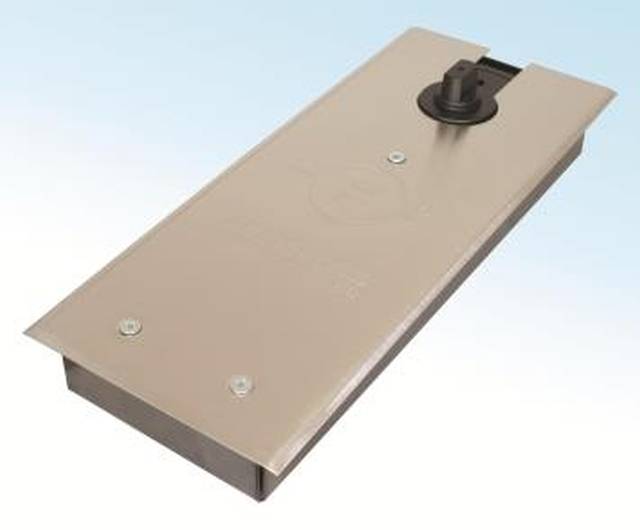

Floor spring with stainless steel cover, with closing strength of CEN power rating 1–4.

Jump to:

+44 (0)1902 364120 www.assaabloy.co.uk

Description

Floor spring with stainless steel cover, with closing strength of CEN power rating 1–4. Not handed, and fully adjustable on site. Hold open option available. Hydraulic control up to 175° in both directions.

Extended spindles, pivot sets and accessory packs available for single and double action doors.

Additional information for this product is available from:

http://www.assa.co.uk/en/site/assacouk/Products1/?groupId=645338

General information

Uniclass 2015	Pr_30_36_36_29 Floor springsPrimary
CAWS	P21/14 Floor springs P21/450 Floor springs

Specification data - Floor springs

Product Reference

4212 Floor spring

With closing strength of CEN power rating 1.

4222 Floor spring

With closing strength of CEN power rating 2.

4232 floor spring

With closing strength of CEN power rating 3.

4242 Floor spring

With closing strength of CEN power rating 4.

Accessories

None

104 328

104 329

104 330

AC 340

AC 341

AC 342

AC 375

AC 605 kit

AC 606 kit

Product Options

Accessories:

AC 340: Italian spindle.

AC 341: Italian spindle, +5 mm.

AC 342: Italian spindle, +10 mm.

AC 375: Double action top pivot in steel for fire doors.

AC 605 kit: Reversible bottom arm and top pivot for double action doors.

AC 606 kit: Reversible bottom arm and top pivot for single action doors.

- Pivots and Stops:

Pivots for centre-hung double action doors, and emergency stops to convert double to single action doors.

104 329 pivot set: For doors up to 56 kg. Steel construction.

104 330 pivot set: For doors up to 90 kg. Steel construction.

104 328 emergency stop: Converts double-action door to single-action. Release mechanism activated by finger lever allows the door to swing open in the opposite direction. Ideal for disabled toilet cubicles and similar where staff may need to gain access in an emergency if someone has collapsed against the inside of the door.
