Floor Hatch - Galvanized Steel Floor Doors - Insulated Fire Rated Lift Out - SBV

Verified by manufacturer 7 months ago

SBV - 52 mm Recess - Lift Out

Surespan Variant:

Floor access panels in galvanized steel. Virtually invisible when installed. Available in Lift Out, Fire Rated, Hinged and Insulated.

Jump to:
+44 (0)1922 711185 Website

Application

Available as lift out, fire rated (30 minutes and 120 minutes), insulated and hinged/assisted opening to suit varies applications.

Description

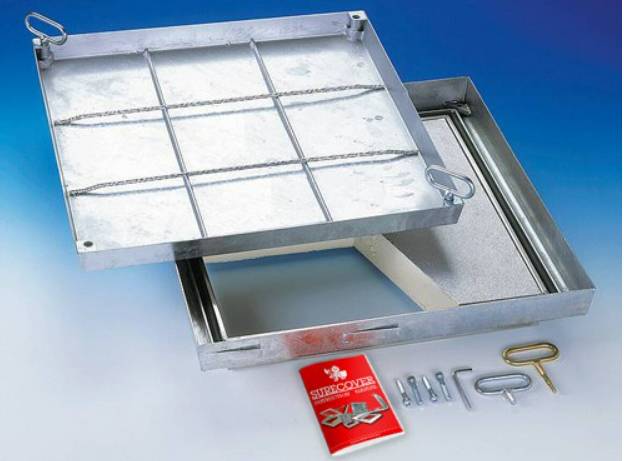

SBV Floor Door Range is manufactured from 2 mm galvanized steel profiles with an EPDM Seal. Available with infill depths 27 mm or 52 mm.


Features and benefits:

  • Up to 125 kN test load (EN 124).
  • Accurately manufactured sealed access covers.
  • Tapered design allows easy opening.
  • Virtually invisible when installed.
  • EPDM seal.
  • Robust steel mesh reinforcement.

General information

Shape

Rectangle

Square

Finish

Galvanized

Material

Steel

  • Frame and cover made of 2 mm cold-formed precision steel profiles, hot-dip galvanized.
  • Stainless steel hardware where applicable.

Rubber

  • EPDM rubber seal.

Size

200 x 200 mm

300 x 300 mm

400 x 400 mm

450 x 450 mm

500 x 500 mm

Show more

Uniclass

Pr_65_52_01_02 Access covers, gratings and framesPrimary

CAWS

R12/54 Access points – plastics

L20/630 Hatches

R12/471 Access covers and frames

L20/60 Doors

P30/301 Access covers, manhole tops and frames

Specification data - Access covers, gratings and frames

Configuration

Lift out.

Finish

Galvanized.

Load class (minimum)

Not required.

125 kN.

Per EN 124 when filled with grade C35/45 Concrete (EN 206).

Frame or support

Galvanized steel.

Cold-formed precision steel profiles, hot-dip galvanized.

Size:

300 x 300 mm.

400 x 400 mm.

450 x 450 mm.

500 x 500 mm.

600 x 400 mm.

Show more

FireRating

Not required.

Infill depth

52 mm.

Cover depth

75 mm.

CoverMaterial

Galvanized steel.

Cold-formed precision steel profiles, hot-dip galvanized.

Hardware

Stainless steel hardware where applicable.

Locking

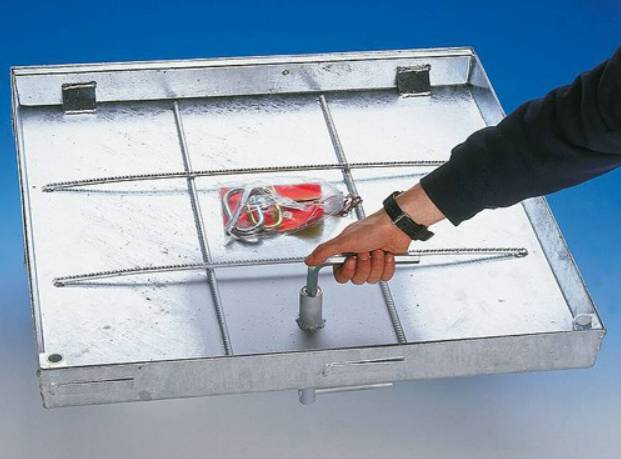

  • SureCover SBV comes with a set of lifting keys and precise installation instructions.
  • SBV-GDZ features internal and external opening.
  • Jammed covers are released by simply turning the Brass Key provided.

Seal

EPDM rubber.
