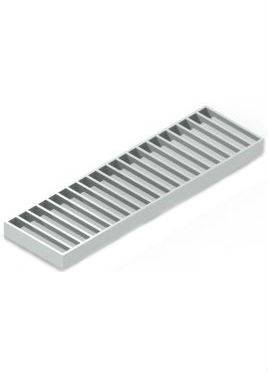

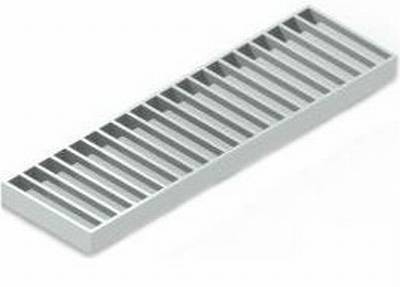

Floor Drain Ladder Grating

Application

Suitable for areas with large volumes of wash down water and vat discharge, including:

  • White welly traffic.
  • Delivery vehicle access.
  • 20 tonne forklift.
  • Industrial use.
  • Meat processing.
  • Chemical plants.
  • Food processing.
  • Drinks processing.
  • Dairy processing.
  • Laboratories.
  • Kitchens.
  • Hospitals.

Description

Ladder grating with load bearing bars at 25 mm openings and the bar thickness is either 5, 8 or 10 mm depending on the loading required and the free span of the channel. The product has a dipped, passivated finish.

Applications:

Suitable for areas with large volumes of wash down water and vat discharge, including:

  • White welly traffic.
  • Delivery vehicle access.
  • 20 tonne forklift.
  • Industrial use.
  • Meat processing.
  • Chemical plants.
  • Food processing.
  • Drinks processing.
  • Dairy processing.
  • Laboratories.
  • Kitchens.
  • Hospitals.

Suitable for:

- Gullies:

  • KV/KH215.
  • KV/KH280.
  • KV/KH220.
  • KVA/KHA265.
  • KVA/KHA205.
  • KVDC/KHDC215.

- Channels:

  • KSBC
  • KVBC.

- Trays:

  • KJT/KMT/KFB 600.
  • Angle Frame.
  • KAF.

General information

Material

1.4307 (304L) stainless steel

1.4404 (316L) stainless steel

Features

Laser cut grating, multiple applications

Finish

Satin

Shape

Rectangle

Uniclass 2015

Pr_65_52_24_29 Floor channel covers and gratingsPrimary

CAWS

R11/310 Floor channels

R11/315 Floor drains

R11/5 Floor drains

Product range

Drainage Gratings

Specification data - Floor channel covers and gratings

Product Reference

Ladder Square Grating

Type

KLG150

KLG207

Size

-

Width

146 mm

196 mm

Depth

25 mm

Standard.

30 mm

40 mm

50 mm

Grate

207 x 207 mm

307 x 307 mm

Load class

A

B

C

Material

1.4307 (304L) stainless steel

1.4404 (316L) stainless steel

Standard product features

Length:

990 mm.

Product Options

Type:

See manufacturer's literature for details.

Digital objects

Platform Compatible Version Certified to
IFC
-

1

2.0
Revit

Revit 2017

1

2.0
Download now from NBS National BIM Library
