Flexiphalte Triple Protection
Application

  • Green roofs.
  • Roof gardens.
  • Podiums.
  • Roadways, ramps and car parks.

Description

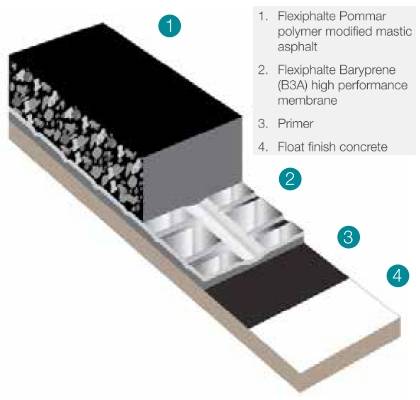

Triple protection roofing and structural waterproofing system.

The system consists of Flexiphalte Pommar and Flexiphalte Baryprene, which are fully bonded to each other and to the substrate which should have a float finish. Flexiphalte Pommar is manufactured by mixing asphaltic cement with filler and coarse aggregate using conventional techniques. The asphaltic cement is made by blending bitumen, polymer and other additives.

Features and benefits:

  • Durability: Flexiphalte Pommar has improved high temperature stability and is more flexible at low temperatures than conventional mastic asphalt, with a longer life expectancy.
  • Fire resistance: Flexiphalte Pommar fulfils all the requirements for a roof covering as given in BS 5588, ‘Fire precautions in the design and construction of buildings’ (Part 1: Section 1.1: 1980), and achieves the highest rating (P60) under the test requirements of BS 476: Part 3: 1975, 'External fire exposure roof test’.
  • Compressive strength: When Flexiphalte Pommar is fully confined, it has the same compressive strength as the containing material. When not confined, the compressive strength is dependent upon a number of factors (including temperature).
  • Toxicity: Flexiphalte Pommar is non-toxic and is generally suitable for use in contact with potable water.
  • Odour: Flexiphalte Pommar is odourless after laying.
  • Resistance to biological attack: Flexiphalte Pommar is vermin proof and rotproof.
  • Thermal expansion: Flexiphalte Pommar is thermoplastic and is capable of accommodating normal movements encountered in well-designed building structures.
  • Resistance to water: Flexiphalte Pommar is impervious to water.

Applications:

  • Green roofs.
  • Roof gardens.
  • Podiums.
  • Roadways, ramps and car parks.

General information

Uniclass 2015

Pr_35_31_05_50 Mastic asphalt (MA) surface coursesPrimary

CAWS

J21/10 Warm deck roof coating

J21/155 Waterproof paving

J21/400 Separating layer (loose laid)

J21/404 Mastic asphalt (paving)

Specification data - Mastic asphalt (MA) surface courses

Product Reference

Flexiphalte Triple Protection

Type

Car/ light van decks

Car/ light van insulated decks

HGV and PSV insulated decks

HGV decks

Ramps

Membrane

Not required

For systems where a membrane is not required. Consult manufacturer for details.

Flexiphalte Baryprene Plus (B3A)

On request. As an alternative to the Flexiphalte High Performance membrane.

Flexiphalte High Performance

Standard.

Standard product features

Application thickness:

Can be applied to various thicknesses dependent on application. See below for corresponding weights to each thickness.

  • 10 mm: 24 kg/m².
  • 15 mm: 36 kg/m².
  • 20 mm: 48 kg/m².
  • 25 mm: 60 kg/m².
  • 30 mm: 72 kg/m².

Technical characteristics:

  • Thermal conductivity (K-value): 0.43–1.15 W/m·K.
  • Vapour resistivity: 100 000 Mn/gm (approximately).

Product Options

Type:

Insert product reference above.

- Car/ light van decks:

  • C.D.1 - Economy: Nominal 25 mm or 30 mm FlexiPhalte paving grade mastic asphalt, Flexiphalte high performance membrane, float finished concrete deck.
  • C.D.2 - Economy Plus: Nominal 25 mm or 30 mm FlexiPhalte paving grade mastic asphalt, nominal 10 mm FlexiPhalte roofing grade mastic asphalt glass fibre tissue separator, float finished concrete deck.
  • C.D.P.M.3 - Standard: Nominal 25 mm or 30 mm FlexiPhalte Pompav polymer modified paving grade mastic asphalt, nominal 10 mm FlexiPhalte Pommar polymer modified roofing grade mastic asphalt glass fibre tissue separator, float finished concrete deck.
  • C.D.P.M.4 - Standard Plus: Nominal 25 mm or 30 mm FlexiPhalte Pompav polymer modified paving grade mastic asphalt, nominal 10 mm FlexiPhalte Pommar polymer modified roofing grade mastic asphalt FlexiPhalte high performance membrane, float finished concrete deck.
  • C.D.P.M.5 - Super: Nominal 25 mm or 30 mm FlexiPhalte Pompav polymer modified paving grade mastic asphalt, nominal 20 mm FlexiPhalte Pommar polymer modified roofing grade mastic asphalt glass fibre tissue separator, float finished concrete deck.
  • C.D.P.M.6 - Super Plus: Nominal 25 mm or 30 mm FlexiPhalte Pompav polymer modified paving grade mastic asphalt, nominal 20 mm FlexiPhalte Pommar polymer modified roofing grade mastic asphalt FlexiPhalte high performance membrane, float finished concrete deck.

- Car/ light van insulated decks:

C.D.1–6 - Economy to Super Plus (prefixed, insulated): FlexiPhalte waterproof surfacing as C.D options (above), Lytag concrete grade 25 with steel mesh to BS 4483, Type A142 (or steel fibres) which can be laid to falls if there are no falls in the structural deck, insulation to meet designed thermal transmittance (U-value), float finished concrete deck with 25 mm diameter drainage holes (by others).

- HGV and PSV insulated decks:

L.D.1–5 - Economy to Super Plus (prefixed, insulated): FlexiPhalte waterproof surfacing as L.D options (below) for routine HGV (with maximum 11.5 T axle load) use, grade and thickness of reinforced concrete screed to suit service use of deck, insulation to meet designed thermal transmittance (U-value), float finished concrete deck with 25 mm diameter drainage holes (by others). Consult manufacturer for details onlong term parking, e.g. trailers on dolly wheels or coach stops.

- HGV decks:

  • L.D.1 - Economy: Nominal 40 mm FlexiPhalte paving grade mastic asphalt, nominal 10 mm FlexiPhalte roofing grade mastic asphalt glass fibre tissue separator, float finished concrete deck.
  • L.D.P.M.2 - Standard: Nominal 40 mm FlexiPhalte Pompav polymer modified paving grade mastic asphalt, nominal 10 mm FlexiPhalte Pommar polymer modified roofing grade mastic asphalt glass fibre tissue separator, float finished concrete deck.
  • L.D.P.M.3 - Standard Plus: Nominal 40 mm FlexiPhalte Pompav polymer modified paving grade mastic asphalt, nominal 10 mm FlexiPhalte Pommar polymer modified roofing grade mastic asphalt FlexiPhalte high performance membrane, float finished concrete deck.
  • L.D.P.M.4: Super: Nominal 40 mm FlexiPhalte Pompav polymer modified paving grade mastic asphalt, nominal 20 mm FlexiPhalte Pommar polymer modified roofing grade mastic asphalt glass fibre tissue separator, float finished concrete deck.
  • L.D.P.M.5 - Super Plus: Nominal 40 mm FlexiPhalte Pompav polymer modified paving grade mastic asphalt, nominal 20 mm FlexiPhalte Pommar polymer modified roofing grade mastic asphalt FlexiPhalte high performance membrane, float finished concrete deck.

- Ramps:

  • C.R.1 - Standard (unheated): Nominal 25 mm FlexiPhalte paving grade mastic asphalt or dense bitumen macadam or hot rolled asphalt (insert requirements), nominal 10 mm FlexiPhalte roofing grade mastic asphalt, concrete ramp tamped to ridge depth of 5 mm.
  • W.R.1 - Standard (heated): Nominal 25 mm FlexiPhalte paving grade mastic asphalt or dense bitumen macadam or hot rolled asphalt (insert requirements), nominal 10 mm FlexiPhalte roofing grade mastic asphalt, binding coat of FlexiPhalte roofing grade mastic asphalt in low voltage expanded metal mat and anchored to concrete ramp.
  • W.R.2 - Standard (heated): Nominal 25 mm FlexiPhalte paving grade mastic asphalt, 75 mm concrete screed containing heating elements, nominal 20 mm FlexiPhalte roofing grade mastic asphalt, concrete ramp tamped to ridge depth of 5 mm.

Membrane:

Where required, the High Performance membrane is supplied as standard. Flexiphalte Baryprene Plus can be specified as an alternative - consult manufacturer for details.

- Flexiphalte Baryprene Plus (B3A):

Polymer-modified membrane with an embossed aluminium foil on the upper surface and a sanded finish on the underside. Fully bonded using traditional pour and roll techniques.

  • Size (l x w): 10 x 1 m.
  • Thickness: 3 mm.
  • Weight: 3.2 kg/m².

- Flexiphalte High Performance:

Polymer-modified membrane reinforced with a 50 g/m² glass-fibre mat, with talc on the upper surface and sanded finish on the underside. The membrane is for use as an alternative to a traditional underlay and is fully bonded using traditional pour and roll methods.

  • Size (l x w): 10 x 1 m.
  • Thickness: 2.5 mm.
  • Weight: 3.05 kg/m².
