Flexi-Beam Plus Sports Floor

Flexi-Beam Plus Sports Floor

Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

DYNAMIK Sport

An area elastic system which can be packed and levelled under the elastic beams to accommodate a variety of sport synthetic finishes including vinyl, linoleum, polyurethane and rubber.

Jump to:
+44 (0)117 3015120 www.dynamiksportsfloors.co.uk
Description

The DYNAMIK Flexi-Beam Plus system is a sprung area elastic sports floor. It incorporates elastic beams which support a counter floor and load distribution panel to accommodate a range of solid synthetic finishes including Sport Vinyl, Sport Linoleum, Sport Polyurethane and Sport Rubber.

It can be packed and levelled to take out variations in the sub floor, thus removing the need for a levelling screed. The structure of the Flexi-Beam Plus system allows for underfloor heating and insulation to be incorporated between the beams.

With a range of solid synthetic finishes it is ideal for both sport and non-sport activities.

Benefits:

  • Meets the requirements of EN 14904.
  • Sport England compliant.
  • Packed and levelled construction.
  • Suited to both sport and non-sport activities.
  • Durable and easy to maintain.
  • Underfloor heating compatible.
  • Low maintenance costs.
  • 25 year warranty.

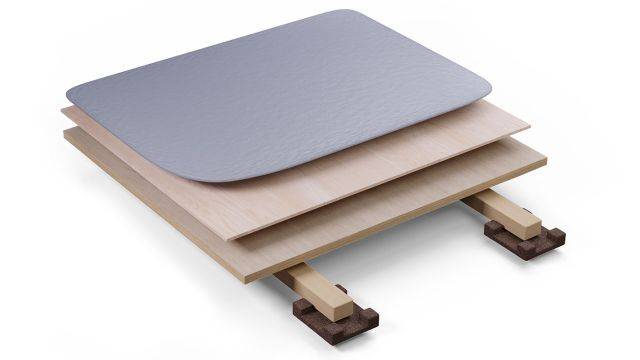

System includes:

  • Playing surface (as specified).
  • 6 mm load distribution board- plywood.
  • 18 mm counter floor - plywood.
  • 27 mm elastic Flexi-beam - plywood.
  • 10 mm sports cradle. Thickness of cradles/ beams can vary dependent on void depth up to 120 mm. For a greater void than 120 mm, cradle-base packers can be used.
  • Levelling shims (to suit void).
  • 61 mm minimum construction height (excluding levelling shims and playing surface).

Related products:

Can be used in conjunction with DYNAMIK's Acoustic Sports Wall Panel and Solid Sports Wall Panel products (each specified separately).

General information
Uniclass 2015
Ss_30_20_90_95 Wood block flooring systemsPrimary
CAWS

K11/295 Floating floor system

K21/111 Wood floating floor

K21/130 Battened wood floating floor

K21/140 Battened wood laminate flooring

M12/10 Resin flooring

M12/110 Resin flooring

M50/150 Sheeting

M50/20 Sheeting

Specification data - Wood block flooring systems
Product Reference

Flexi-Beam Plus Sports Floor

Accessories

None

Apparatus covers/ frames

Damp proof membrane

Giant Carpet Tile Floor Protection

Hockey skirting

Movement/ expansion joints

Solid skirting

Sports line marking

Ventilated skirting

Standard product features

Technical properties (to BS EN 14904):

  • Shock absorption: 40–75%.
  • Vertical deformation: 1.8–5.0 mm.
  • Ball rebound: >90%.
  • Slip resistance: 80–110.
  • Rolling load: 1500 N.

Literature
Third party certifications
  • Sport England Compliant: BS EN 14904
