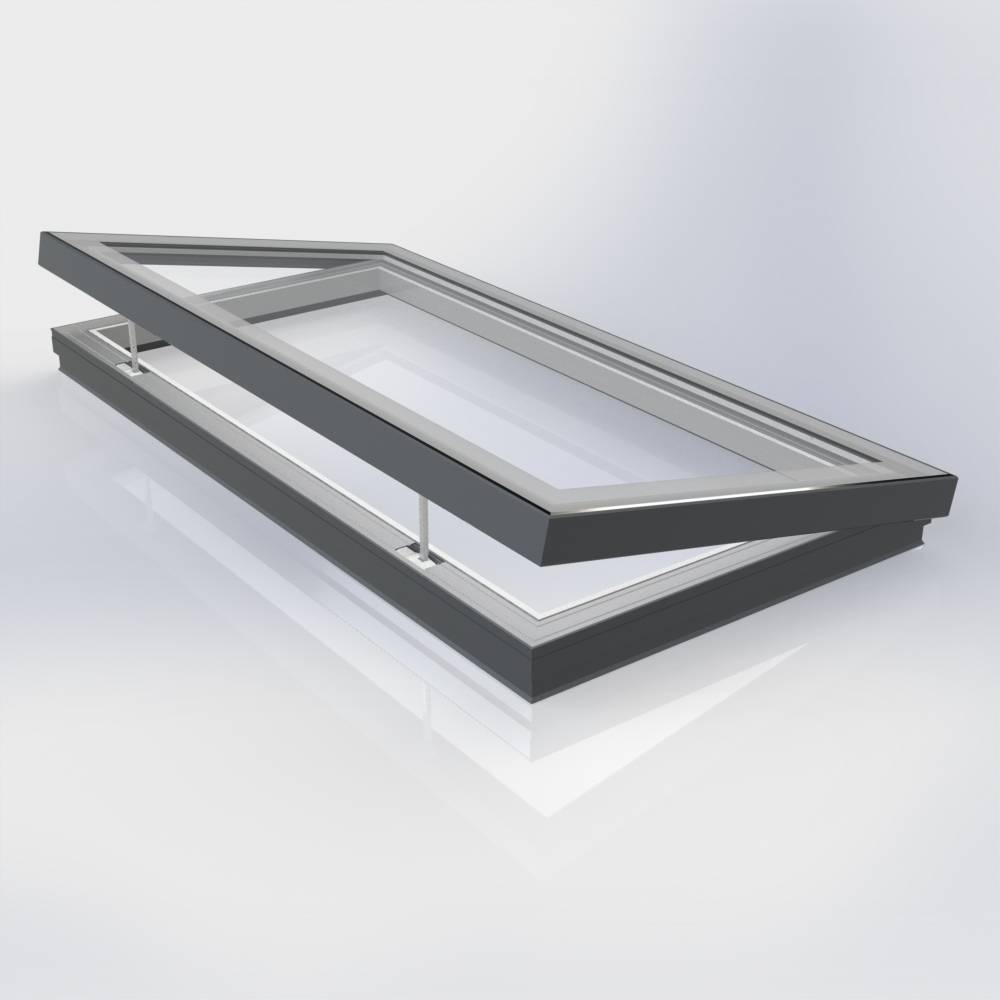

Flatglass Hinged

Description

Electric Hinged
Roofglaze's electric hinged Flatglass rooflights are operated by fully concealed 24v or 230v chain actuators. Minimum kerb span: 500 mm.

Maximum standard kerb sizes for electric hinged rooflights:

  • Double glazed
  • Square: up to 1.8 m x 1.8 m²
  • Rectangular: up to 1.2 m x 2.7 m or 3.3 m²
  • Larger sizes require multiple, synchronised actuators and specialist refurb planning

Manual Hinged
Roofglaze's manual hinged Flatglass rooflights are operated by a worm gear spindle.

Maximum standard kerb sizes for manual hinged rooflights:

  • Double glazed
  • Square: up to 1.7 x 1.7 m
  • Rectangular: up to 1.5 x 2 m or 3m²
  • A double spindle is required for units over 1.4 m long.

General information

Finish

Polyester Powder Coat

Material

6063 T6 Aluminium

Shape

Square

Size

90 x 1000 x 1000 mm Kerb

1000 x 1000 mm Kerb

Uniclass 2015

Pr_30_59_72_31 Framed rooflightsPrimary

Digital objects

Platform Compatible Version Certified to
IFC
-

4

2.1
Revit
-

4

2.1
Download now from NBS National BIM Library
