Description

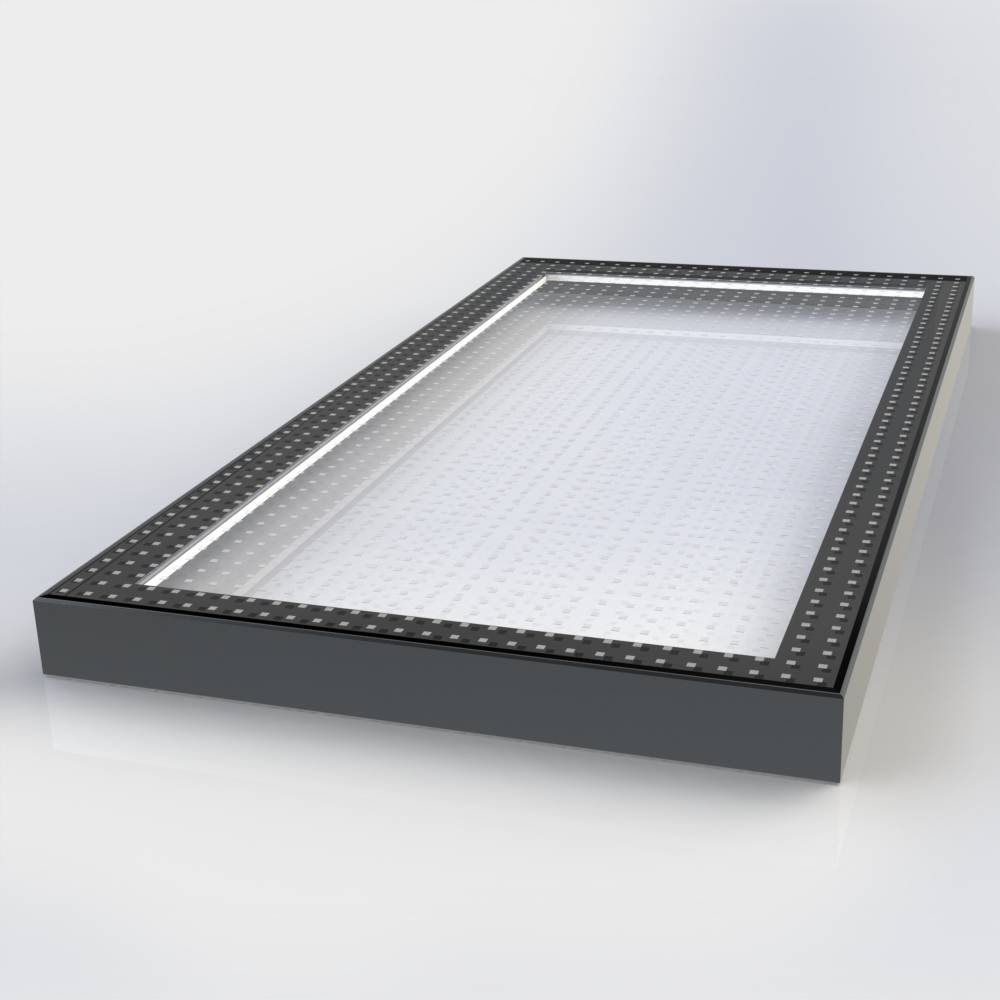

Roofglaze's Flatglass rooflights can be supplied to walk-on specification, for roof terraces and internal applications. They provide attractive and creative solutions for introducing daylight into buildings.

Designed to the current British and European Standards (BS EN 1991-1-1), they have the capacity to withstand a uniformly distributed load of 1.5kN/m2, or a concentrated load of 2.0 kN. Higher loads can be accommodated via special order.

Our walk-on specification rooflights are available in a range of standard kerb sizes:
Single pane - up to 1.2 x 3 m or 3.6 m², larger sizes are to special order. Multi-pane - up to 2.4 m slope span, unlimited length with bays at up to 1.2 m centres.

General information
Finish

Polyester Powder Coat

Material

6063 T6 Aluminium

Shape

Square

Size

1000 x 1000 mm Kerb

Uniclass 2015
Framed rooflights (Pr_30_59_72_31)Primary
Digital objects
PlatformCompatibleVersionCertified to
IFC
- 4 2.1
Revit
- 4 2.1
Download now from NBS National BIM Library
