Flat Sheet Soffit
Verified by manufacturer 2 months ago
ISO 9001 Quality Management
Certificate type

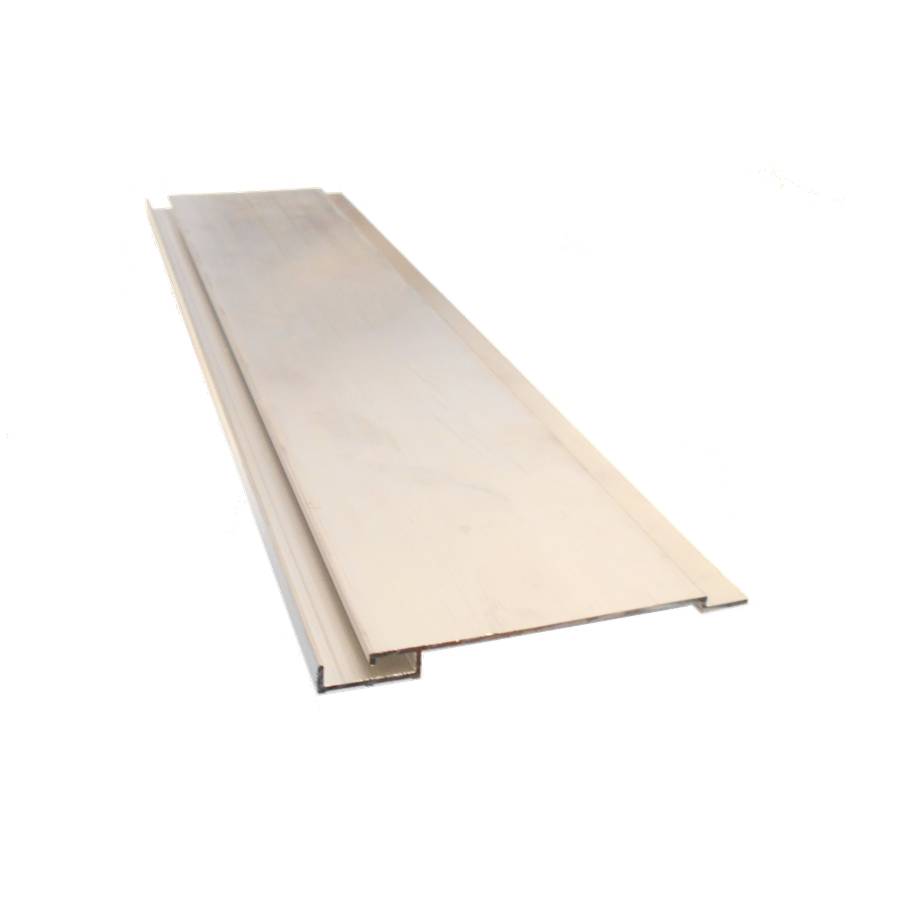

Aluminium flat sheet soffit.
Application
Soffit applications.
Description
‘Eclipse’ Soffit systems are suitable for both internal and external applications with two standard widths giving three effective widths of 90, 100 and 125 mm. The 125 mm wide plank is designed to give a tongue and groove effect whilst the 100 mm wide plank can give either a butt joint finish at 90 mm wide or a delicate shadowline at 10 mm wide. There is also a full range of trims and sections available to suit almost any application.
General information
Color | Black |
Finish | Satin Powder-coated |
Material | Aluminium |
Shape | Rectangle |
Length | 3000 mm |
Width | 90 mm 100 mm 125 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | R10/13 Combined fascia, soffit and gutter G20/99 Fascias/ barges/ soffits G20/950 Fascias/ barges/ soffits R10/321 Combined fascia, soffit and gutter |
Specification data - Aluminium combined fascias, soffits and gutters
Form | Fascia and soffit. |
Soffits | |
Profile | Flat sheet. |
Size | 90 mm.100 mm.125 mm. |
Finish | Powder coated. |
Colour | RAL 9005 Jet Black Satin.Manufacturer guidanceAll other RAL and BS colours available upon request. Insert requirements. |
Integral accessories | EJOT fixings.None. |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Manufacturing plant location | |
Material | Aluminium |
Expected Life | 25 year |
