Flat Lock Tiles (Roofing)

Application

For use on pitched roofs >25°.

Description

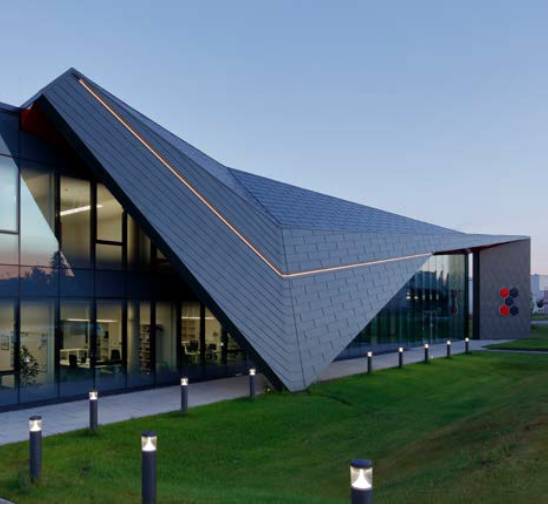

RHEINZINK flat lock tiles are intended for use on all roofs. The flat lock tiles are available both as a roof system and as a facade system.


Features and benefits:

  • Individual roof covering through variable tile sizes.
  • High degree of design freedom, even on unconventional roof forms.
  • Cost-effective assembly through high level of prefabrication.
  • Durable and environmentally friendly roofing material.
  • Cradle to Cradle Certified® Bronze (CLASSIC and prePATINA).
  • EN 15804 EPD (CLASSIC and prePATINA).

General information

Color

Black

Blue

Brown

Gold

Green

Show more

Finish

Pre-PATINA, GRANUM, PRISMO and CLASSIC surfaces.

-

Material

Zinc

Shape

Rectangle

Square

Rhombus

Trapezium

Kite

Show more

Length

Flatlock tiles are custom-produced for every property in the required construction widths and lengths.

  • Construction widths up to 600 mm.
  • Construction length up to 3000 mm (optimum ≤ 2000 mm).
  • Larger dimensions available on request.

600 mm

800 mm

1000 mm

1200 mm

Bespoke

Width

Flatlock tiles are custom-produced for every property in the required construction widths and lengths.

  • Construction widths up to 600 mm.
  • Construction length up to 3000 mm (optimum ≤ 2000 mm).
  • Larger dimensions available on request.

333 mm

400 mm

500 mm

600 mm

Bespoke

Show more

Height

0.7 mm

0.8 mm

1.0 mm

WarrantyDescription

30 year

30-year guarantee.

Uniclass

Pr_25_71_51_99 Zinc standard temper alloy stripsPrimary

CAWS

H74/110 Zinc sheet fully supported roof covering

Specification data - Zinc standard temper alloy strips

Alloy

Zinc-titanium-copper.

Standards

-

Sheet, strip and plate

To EN 14783 and EN 988.

Width

333 mm.

400 mm.

500 mm.

600 mm.

Custom.

Flatlock tiles are custom-produced for every property in the required construction widths and lengths. Construction widths up to 600 mm, with larger dimensions available on request. Insert requirements.

Finish

CLASSIC bright rolled.

GRANUM basalte.

GRANUM skygrey.

PRISMO black.

PRISMO blue.

PRISMO brown.

PRISMO gold.

PRISMO green.

PRISMO red.

prePATINA blue-grey.

prePATINA graphite-grey.

Thickness

0.7 mm.

0.8 mm.

1.0 mm.

Reaction to fire

-

External face

To EN 13501-1, Class A1.

CLASSIC, GRANUM and prePATINA finishes.

To EN 13501-1, Class A2.

PRISMO finishes.

TileLength

600 mm.

800 mm.

1000 mm.

1200 mm.

Custom.

Flatlock tiles are custom-produced for every property in the required construction widths and lengths. Construction length up to 3000 mm (optimum ≤ 2000 mm) with larger dimensions available on request. Insert requirements.

Preformed components

Eaves.

Hip.

Ridge.

Verge.

Vertical joint.

Show more

Third-party certification

Cradle to Cradle Certified® Bronze and EN 15804 EPD (CLASSIC and prePATINA).

Environmental information

Contains Red List materials

No

Country of material origin

Germany

Country of product manufacture

Germany

Recyclability

100%

Digital objects

Platform Compatible Version Certified to
Revit
-

1

2.1
IFC
-

1

2.1
Download now from NBS National BIM Library
