Flat Lined Panel Radiator Collection

Name: Flat Lined Panel Radiator Collection
Brand: Towelrads
SKU: doeNRRhA1MaKWQboYWN125

Verified by manufacturer 2 months ago

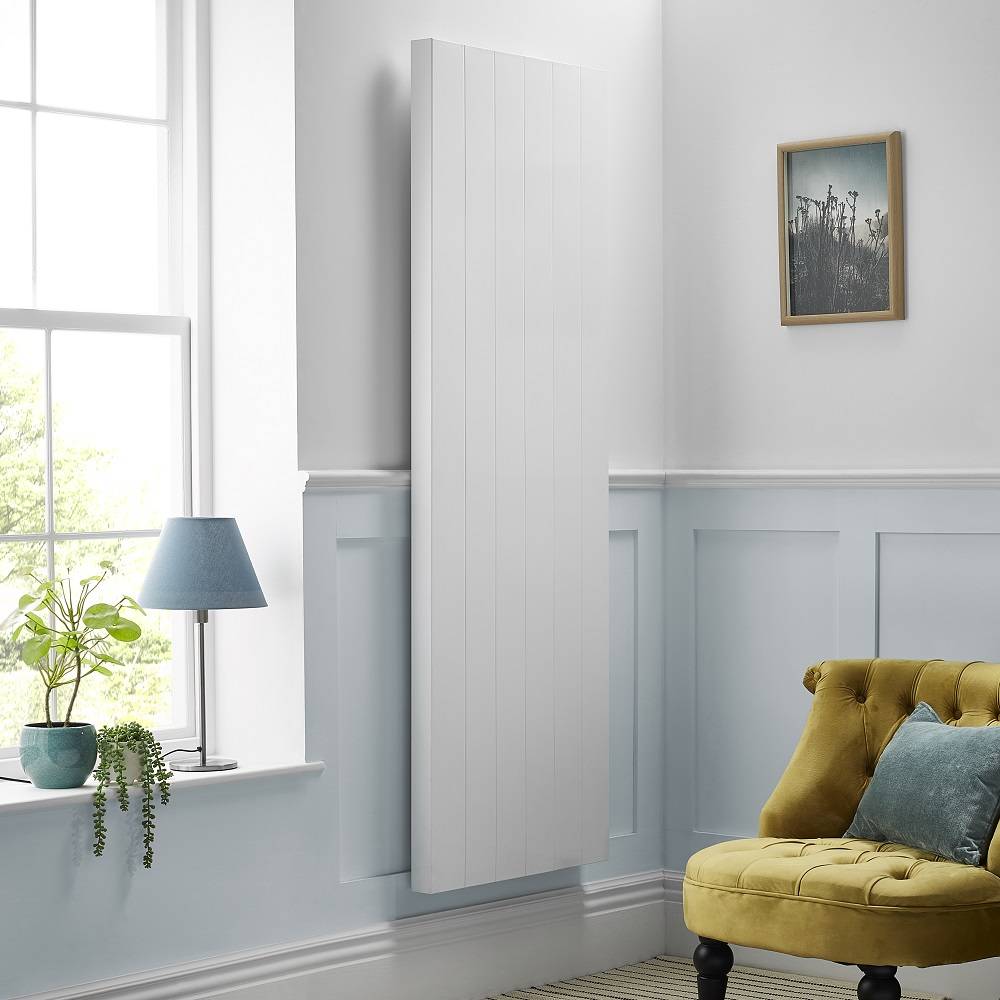

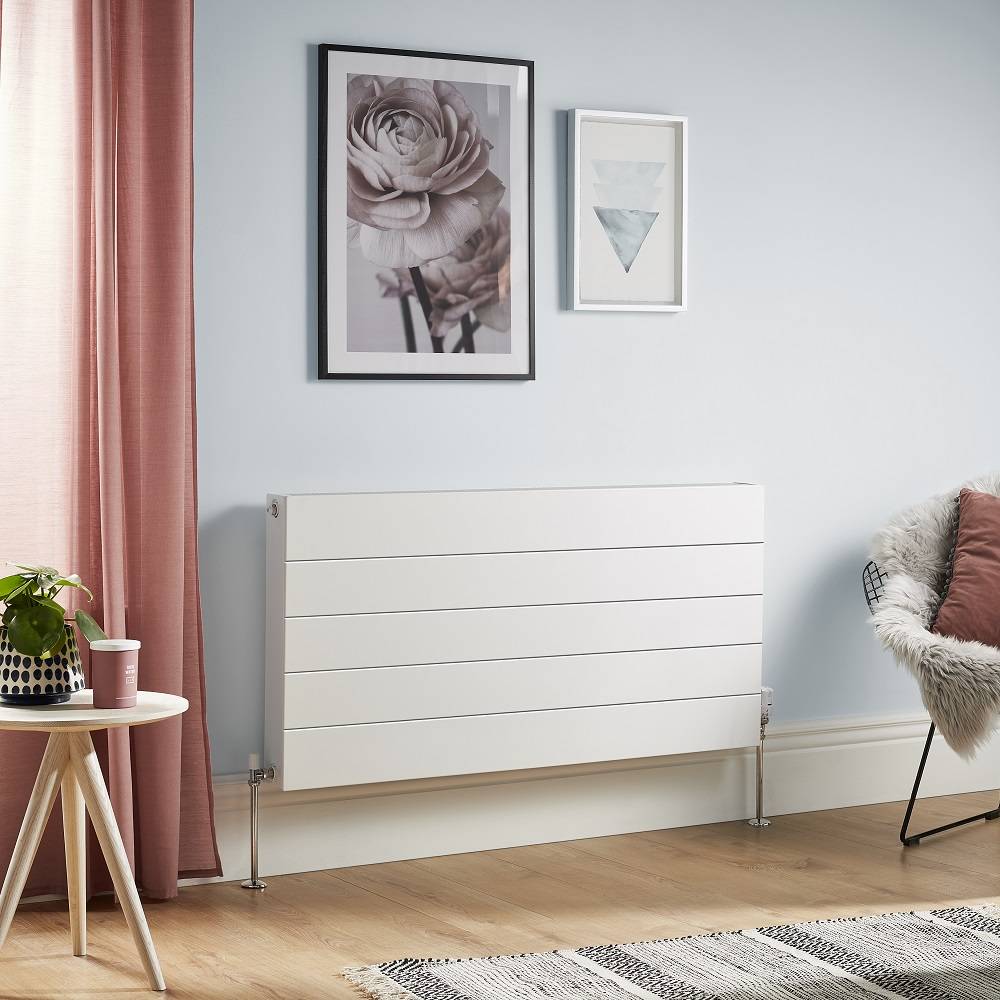

Flat Lined Panel – P10

Towelrads

Flat lined panel radiator.

Jump to:

BOS

+44 (0) 1628 568 532 Website

Application

Suitable for any room or office.

Description

The Flat Lined Panel collection is a modern addition to the flat panel range, with a horizontal lined effect design. It maintains all the product benefits of the flat panel range but with a softer aesthetic.

Features and benefits:

Withstands external corrosion for twice as long as standard finishes.
Alternative sizes available in Type 11 and Type 22. T22 Vertical Options available upon request.
Steel radiator finished in white (RAL 9016).
Other RAL colours are available.
Manufactured to EN 442 standards.

General information

Color	White Guidance for specification option: RAL 9016. Other Guidance for specification option: Other RAL colours are available.
Finish	Gloss
Material	Steel
Shape	Rectangle Guidance for specification option: Vertical and horizontal options.
Length	400 mm 500 mm 600 mm
Height	1600 mm 1800 mm 2000 mm 2200 mm
Warranty description	Ten year

Uniclass	Pr_70_60_36_73 RadiatorsPrimary
CAWS	T90/465 Radiators T90/465 Radiators

Specification data - Radiators

Standards	To BS EN 442.
Radiator type	Single flat panel.
Output	Dependent on size.

Product Reference	Flat Lined Panel – P10
Height	1600 mm. 1800 mm. 2000 mm. 2200 mm.
Length	400 mm. 500 mm. 600 mm.
Colour	White. Guidance for specification option: RAL 9016. Special order. Guidance for specification option: Insert RAL colour requirement.
MaximumWorkingPressure	10 bar.
Working temperature	110°C (maximum).
