Application

Suitable for internal applications.

Description

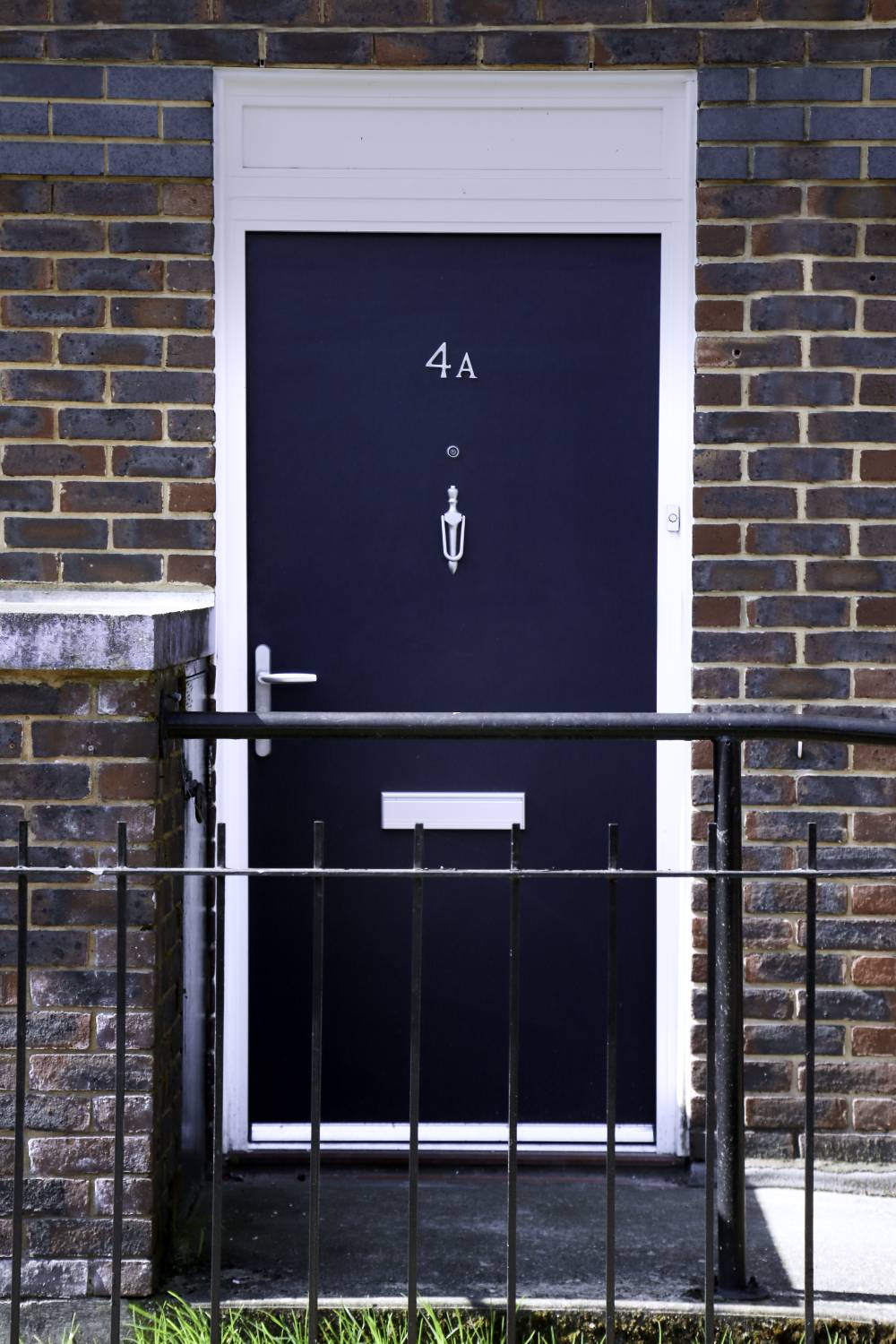

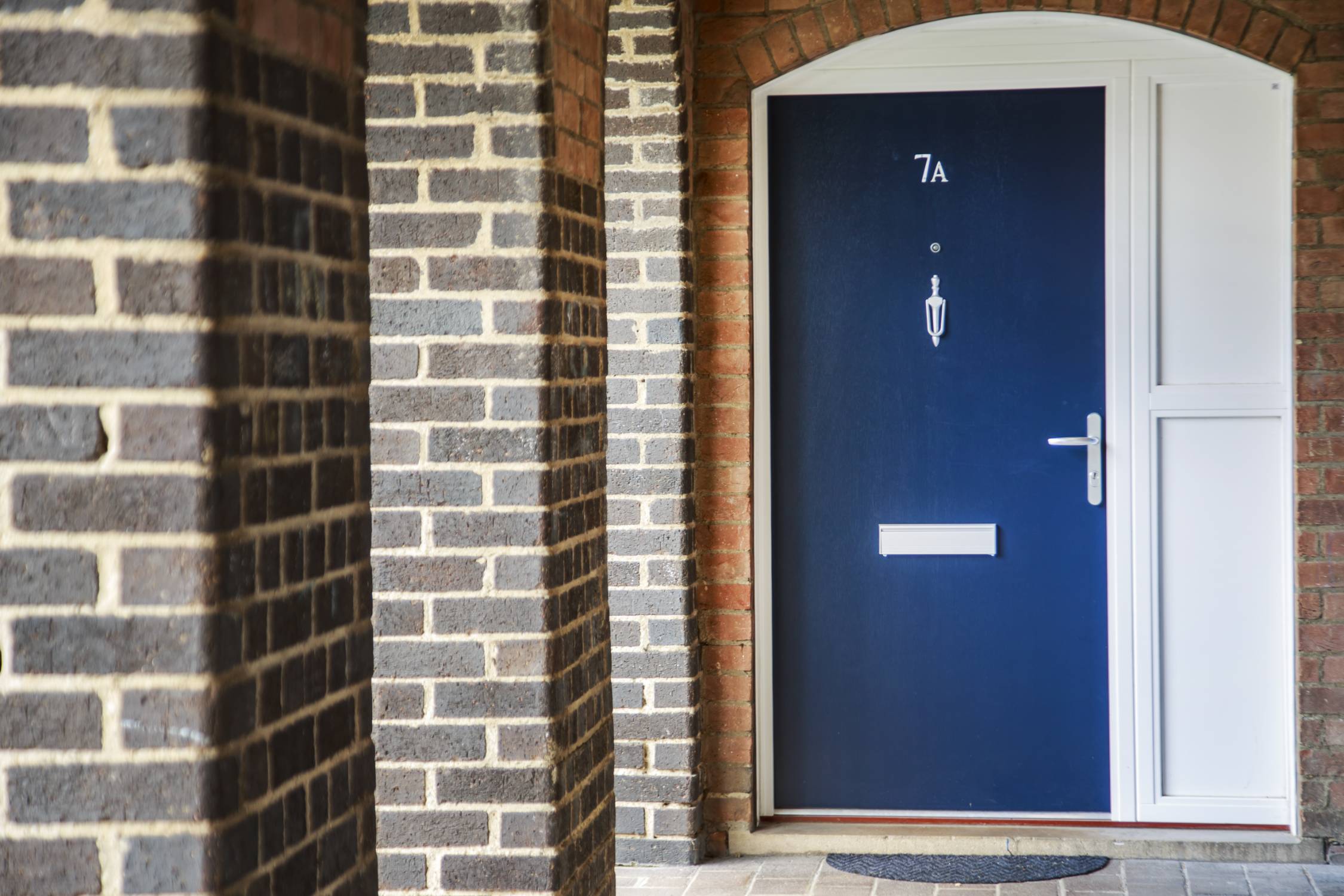

The Safer Homes Internal Flat Entrance timber doorsets are designed for high performance and long term durability. Having specialised in fire doorset design for almost 30 years, we draw on this expertise to produce doorsets supported by a large library of test evidence.

This multi-performance range is extensively primary tested to:

EN1634-1 for Fire Resistance

EN1634-3 for Smoke Leakage

PAS 24 for Enhanced Security

EN ISO 10077 for Thermal Transmittance

EN ISO 10140-2 for Acoustics

BS 6375-2/3 for Operation and Strength

The range is tailored to size to meet Part M requirements and is independently third-party certified through the UKAS certification body, BlueSky Certification, for triple certification (enhanced security, fire resistance, and smoke control) and Secured by Design approved.

Features and benefits include:

  • Complete finished doorsets
  • FD30S classification
  • Full test data & certification overview available
  • Timber engineered construction, 54 mm doorset designed by Gerda Security Products to provide optimum performance
  • Extensive rigorous testing with a wide range of primary fire and smoke control tests to latest European standards (manufacturer-owned, not third party cascaded primary tests), offering the specifier a wide choice of options
  • Offers excellent stability and longevity; supplied pre-hung and first-class factory-finished
  • Building regulation compliant for fire resistance, smoke control, enhanced security, acoustics, thermal transmittance (separating a conditioned area from an unconditioned area)
  • Tested to BS6375-2/3 for doorset durability and strength
  • Tailored to size to meet ADM requirements with each doorset having its unique identification code
  • G-Smart™ (in-built digital traceability for survey applications through to manufacture)
  • A wide range of glazed and solid styles
  • Timber engineered construction offers high quality with an exceptional strength-to-weight ratio
  • Finished in a tri-coat water-based paint system with low VOCs with a wide choice of RAL colours
  • Option of laminate finishes
  • Formally recognised and promoted by Secured by Design (the official police security initiative)

Gerda Security Products is committed to comprehensive doorset design - owning all designs in-house - to ensure that every performance criterion meets building regulation requirements while driving innovation for better living environments. Each design is extensively tested, contributing to a substantial library of primary-owned test evidence that supports the wider built environment.

General information

Color

Blue

Grey

Green

White

Red

Show more

Finish

Painted

Laminated

Glazed

Material

Timber

Wood

Plywood

Glass

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Ten year

Uniclass

Pr_30_59_24_97 Wood doorsetsPrimary

CAWS

L20/55 Doorsets

L20/430 Wood doorsets

L20/420 Wood doorsets

L20/410 Wood doorsets

SKU Code

GS073-3C3

Specification data - Wood doorsets

Classification data

Standard

Internal fire-rated doorset to EN 1634-1.

Configuration

Single-leaf, single-action.

Doorset size

-

Manufacturer guidance

Door sizes are adaptive to meet Part M of building requirements.

Consult manufacturer for details and insert size requirements.

Performance

-

Fire resistance

-

Integrity

To BS EN 1634-1, E 30 minutes.

Smoke leakage

To BS EN 1634-3, Sa.

Acoustic performance

To BS EN ISO 10140-2, sound reduction index Rw 29 dB minimum.

Guidance for specification option:

  • Flush: 30 dB.
  • With patterned styles (based on the most onerous style): 30 dB.
  • Glazed with patterned style glazing (fire integrity and full fire insulation): 32 dB.

Strength and durability

-

Manufacturer guidance

Consult manufacturer for details and insert requirements.

Thermal

1.5 W/m²K.

Guidance for specification option:

Solid and glazed styles.

Intruder resistance

-

Minimum requirement

To PAS 24.
Secured by Design certification.

Application

Both sides.

Conformity

Certification by accredited third-party certification body. Type testing not permitted.

Accessibility

In accordance with BS 8300-2.

Frame

-

Material

Hardwood.

Species

Oak.
Ash.
Sapele.
Engineered timber.

Threshold

Hardwood.
Aluminium low profile.
Aluminium slimline (for mobility requirements).

Perimeter seals or inserts

Not required.
Stainless steel 32 mm rain deflector.
Dropdown smoke seal.

Finish

Full paint factory finish.

Guidance for specification option:

  • Tri-coat water-based paint system.
  • Flexible and highly durable microporous protective film.

Laminated.

Guidance for specification option:

  • Optional laminated finishes.
  • Consult manufacturer for details and insert requirements.

Colour

-

Manufacturer guidance

Consult manufacturer for details and insert requirements.

External

White.
Other.

Guidance for specification option:

Consult manufacturer for details and insert requirements.

Internal

As external.

Installation fasteners

-

Manufacturer guidance

Consult manufacturer for details and insert requirements.

Frame accessories

19 mm integral door stop with draught seal.
16 mm integral door stop with draught seal.

Door leaf

-

Thickness

54 mm.

Core

Solid core.

Guidance for specification option:

Polymer-based door core.

Panel details

Aire.
Colne.
Dee.
Derwent.
Esk.
Fowey.
Galven.
Lark.
Lymn.
Medway.
Mersey.
Nene.
Orwell.
Prosper.
Ribble.
Rivelin.
Severn.
Stour.
Tamar.
Teign.
Trent.
Waveney.
Wharfe.
Winster.

Manufacturer guidance

  • Glazed and un-glazed options.
  • Raised moulding styles for heritage properties available in Derwent, Stour, Waveney and Winster.
  • Consult manufacturer's literature for details.

Facings

Plywood.

Species

Hardwood.

Lippings

Lipped with hardwood of 640 kg/m³ density.

Perimeter seals

Not required.
Dropdown smoke seal.

Finish

Full paint factory finish.

Guidance for specification option:

  • Tri-coat water-based paint system.
  • Flexible and highly durable microporous protective film.

Laminated.

Guidance for specification option:

  • Optional laminated finishes.
  • Consult manufacturer for details and insert requirements.

Colour

-

External

Steel blue.
Anthracite grey.
Moss green.
Traffic white.
Carmine red.
RAL colour.

Guidance for specification option:

Available in all RAL colours.

Consult manufacturer and insert requirements.

Manufacturer guidance

Available in five standard finishes or any RAL colour.

Internal

As external.
Steel blue.
Anthracite grey.
Moss green.
Traffic white.
Carmine red.
RAL colour.

Guidance for specification option:

Available in all RAL colours.

Consult manufacturer and insert requirements.

Glazing

-

Type

Not required.

Guidance for specification option:

Dependent on selected door style (panel details). Consult manufacturer's literature for details.

EW 30 clear double glazing units in accordance with BS EN 356 P1 A.
EW 30 obscure double glazing units in accordance with BS EN 356 P1 A.
EI 30 clear double glazing units in accordance with BS EN 356 P1 A.
EI 30 obscure double glazing units in accordance with BS EN 356 P1 A.

Manufacturer guidance

  • All glazing options comply with the safety standards (part N/ K) to BS EN 12600.
  • Fire glazing within argon-filled insulated glass unit (IGU).
  • Certified to BS EN 356 P1 A to meet latest Approved Document Q building regulation.
  • Consult manufacturer for details and insert requirements.

Manifestation

None.

Beading

-

Type

External.

Material

Hardwood.

Fixing

-

Manufacturer guidance

Consult manufacturer for details and insert requirements.

Door accessories

Not required.
Letterplate TS008 standard.
Letterplate TS008 slimline.

Planted stops

-

Wood species

Not required.
Oak.
Ash.
Seaple.
Engineered hardwood.

Finish

Full paint finish.

Colour

-

Manufacturer guidance

Consult manufacturer for details and insert requirements.

Hardware

Door closer cam action, transom.
Door closer cam action, leaf.
Door closer concealed overhead action.
SmartSound closer (non-wired).
Electromechanical swing door opener for Equality Act and BS 8300 requirements.
Infrared safety sensors.
Door closer electromagnetic freeswing.
Face fixed door closer.
Magnetic hold open device.
Stainless steel CE marked hinges to EN 1935.
Heavy duty stainless steel CE marked hinges to EN 1935.

Manufacturer guidance

Consult manufacturer/ manufacturer's literature for details.

Architraves

-

Material

PVC, 5 mm minimum thickness.
Timber, 15 mm thickness.
MDF, 15 mm thickness.

Finish

-

Manufacturer guidance

Consult manufacturer for details and insert requirements or omit.

Colour

-

External

-

Manufacturer guidance

Consult manufacturer for details and insert requirements.

Internal

-

Manufacturer guidance

Consult manufacturer for details and insert requirements.

Preservative treatment

-

Manufacturer guidance

Consult manufacturer for details and insert requirements or omit.

Accessories

Door chain.

Guidance for specification option:

Standard.

Knocker, slimline weighty design.

Guidance for specification option:

Standard.

Viewer (one off).

Guidance for specification option:

Standard.

Numerals/ letters.

Guidance for specification option:

Standard - tailored to requirements.

Ring video doorbell.

Guidance for specification option:

Optional.

Viewer (two off).

Guidance for specification option:

Optional.

Push/ kick plates.

Guidance for specification option:

Optional.

Magnetic hold open device.

Guidance for specification option:

Optional.

PVC finger guard.

Guidance for specification option:

Optional.

Standard for Safer Homes with Care Assist.

Manufacturer guidance

Consult manufacturer's literature for standard and optional product accessories and insert requirements.

Locking

Multipoint locking system.
Multipoint lock with automatic locking.
Multipoint lock with automatic locking and assisted opening.

Manufacturer guidance

  • All hardware is matching in satin chrome finish.
  • All successfully tested as part of the PAS 24 tests.
  • Locking options are able to accommodate multiple cylinders.
  • Consult manufacturer/ manufacturer's literature for details.

Handles

-

Manufacturer guidance

Consult manufacturer for handle set options and insert requirements.

Over/ side panels

-

Manufacturer guidance

  • A wide range of options available; including glazed and solid.
  • Consult manufacturer for details and insert requirements or omit.

Sustainability data

Country of product manufacture

United Kingdom

Manufacturing plant location

Material

Timber
Wood
Plywood
Glass
