Description

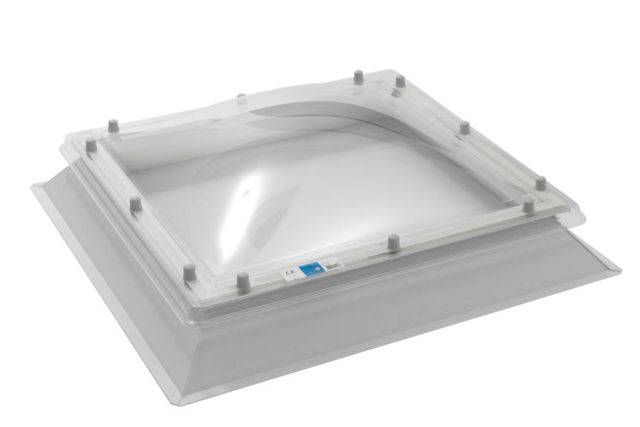

Available as a manual or electric opening ventilation skylight, or fixed rooflight. The triple layer glazing offers U-values of 1.8 W/m²K. Thermally broken upstand manufactured from PVC ensures a strong thermal performance and resilience to condensation formation. Other options available.

General information
Size

600 x 600

As standard.

600 x 900

600 x 1200

800 x 800

900 x 900

900 x 1200

1000 x 1000

1000 x 1500

1000 x 2000

1000 x 2400

1000 x 2500

1000 x 3000

1200 x 1200

1200 x 1800

1200 x 2400

1200 x 2500

1250 x 1250

1250 x 2500

1500 x 1500

1500 x 1800

1500 x 2400

1500 x 2500

1500 x 3000

1800 x 1800

1800 x 2400

1800 x 2500

2000 x 2000

Color

White kerb

Features

Various layer options

Shape

Rectangular

WarrantyDescription

5 years

Uniclass 2015
Framed rooflights (Pr_30_59_72_31)Primary
Specification data - Framed rooflights
Product Reference

SD.FX/VN Rooflights

Size

600 x 600

As standard.

600 x 900

600 x 1200

800 x 800

900 x 900

900 x 1200

1000 x 1000

1000 x 1500

1000 x 2000

1000 x 2400

1000 x 2500

1000 x 3000

1200 x 1200

1200 x 1800

1200 x 2400

1200 x 2500

1250 x 1250

1250 x 2500

1500 x 1500

1500 x 1800

1500 x 2400

1500 x 2500

1500 x 3000

1800 x 1800

1800 x 2400

1800 x 2500

2000 x 2000

Type

Fixed

As standard.

Manual ventilation with spindle

Ventilation with 300 mm electric opener

Ventilation with chain drive motor

Kerb

GRP 150 mm

GRP 300 mm

GRP 500 mm

PVC 150 mm

As standard.

PVC 300 mm

Glazing

Quad layer polycarbonate

1.5 W/m²K.

Surespan HeatStop

Reflects infrared heat 1.8 W/m²K.

Thermally insulated

0.83 W/m²K.

Triple layer polycarbonate

1.8 W/m²K as standard.

Accessories

None

Blackout blinds

Fall protection

Intruder protection

Rooflight blinds

Digital objects
PlatformCompatibleVersionCertified to
IFC
IFC2X3 3 1.3
Revit
Revit 2016 4 2.0
Download now from NBS National BIM Library
