Fixed Head Adjustable Decking Pedestal - RDF

Name: Fixed Head Adjustable Decking Pedestal - RDF
Brand: RYNO
SKU: fbVnZbaADjZH8bevsuBuRr

Verified by manufacturer 4 months ago

RYNO

Adjustable decking pedestal with fixed head.

Jump to:

BOS

+44 (0)203 967 3500 Website

Application

Roof areas, terraces, balconies, green roofs.

Structural podium decks.

Communal/ public areas.

Walkways.

Patio overlays/ renovations.

Gardens.

Description

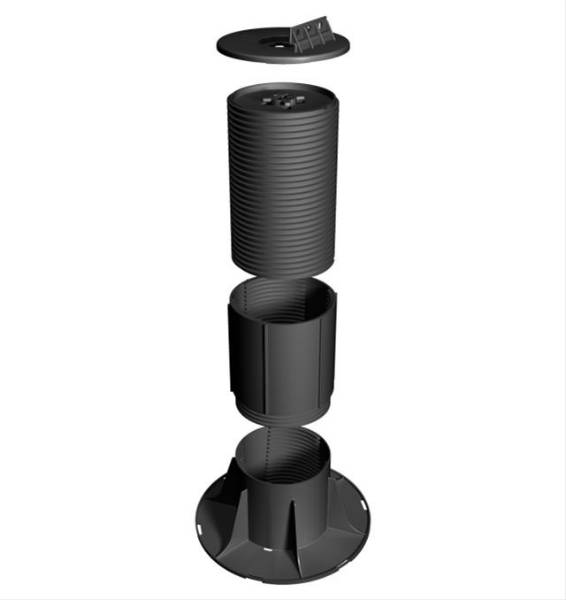

Fixed-head adjustable decking pedestal designed to support all conventional decking and paving systems on completely level surfaces. Its 22–550 mm height range makes it suitable for areas with problematic height restrictions, as well as areas where greater height build up is required.

Features and benefits:

Joists of up to 80 mm width can be used and are fixed through a heavy-duty locator bracket.
Height extension collar which adds 126 mm of incremental height build-up, up to 500 mm.
Threaded column allows millimetre perfect adjustment.
Quick to install.
High loading capability ensuring stability of decking area.
Wide base evenly spreads load, protecting membranes.
Resistant to mould, algae, alkali, bitumen, UV.

General information

Color	Black
Material	Polypropylene Guidance for specification option: Recyclable, UV resistant.
Shape	Circle
Width	200 mm
Warranty description	Ten year

Uniclass	Pr_20_85_47_22 Decking and paving pedestalsPrimary
CAWS	K11/295 Floating floor system Q37/460 Support pedestals Q55/110 Deck Q55/395 Support pedestals

Specification data - Decking and paving pedestals

Pedestal type	Adjustable. Guidance for specification option: Fixed head.
Grade	1000 kg.
Material	Polypropylene.
Adjustment	22-35 mm. Guidance for specification option: RDF-1. 35–55 mm. Guidance for specification option: RDF-2. 55–95 mm. Guidance for specification option: RDF-3. 95–165 mm. Guidance for specification option: RDF-4. 165–235 mm. Guidance for specification option: RDF-5. 200–270 mm. Guidance for specification option: RDF-6. 270–240 mm. Guidance for specification option: RDF-7. 305–375 mm. Guidance for specification option: RDF-8. 365–445 mm. Guidance for specification option: RDF-9. 410–480 mm. Guidance for specification option: RDF-10. 470–550 mm. Guidance for specification option: RDF-11. Manufacturer guidance Specify combinations of pedestals as required to suit uneven ground.
Accessories	None. Base rubber shock pad. Guidance for specification option: Installed to enhance acoustic properties, or where membrane requires additional protection.

Base diameter	200 mm.
Head diameter	120 mm.
Bearing capacity	≤80 mm.
Working temperature	-30–120°C.

Sustainability data

Contains Red List materials	No
Country of material origin	Europe
Country of product manufacture	Europe
Recyclability	Recyclable Manufacturer guidance UV resistant polypropylene (PP) (recyclable).
