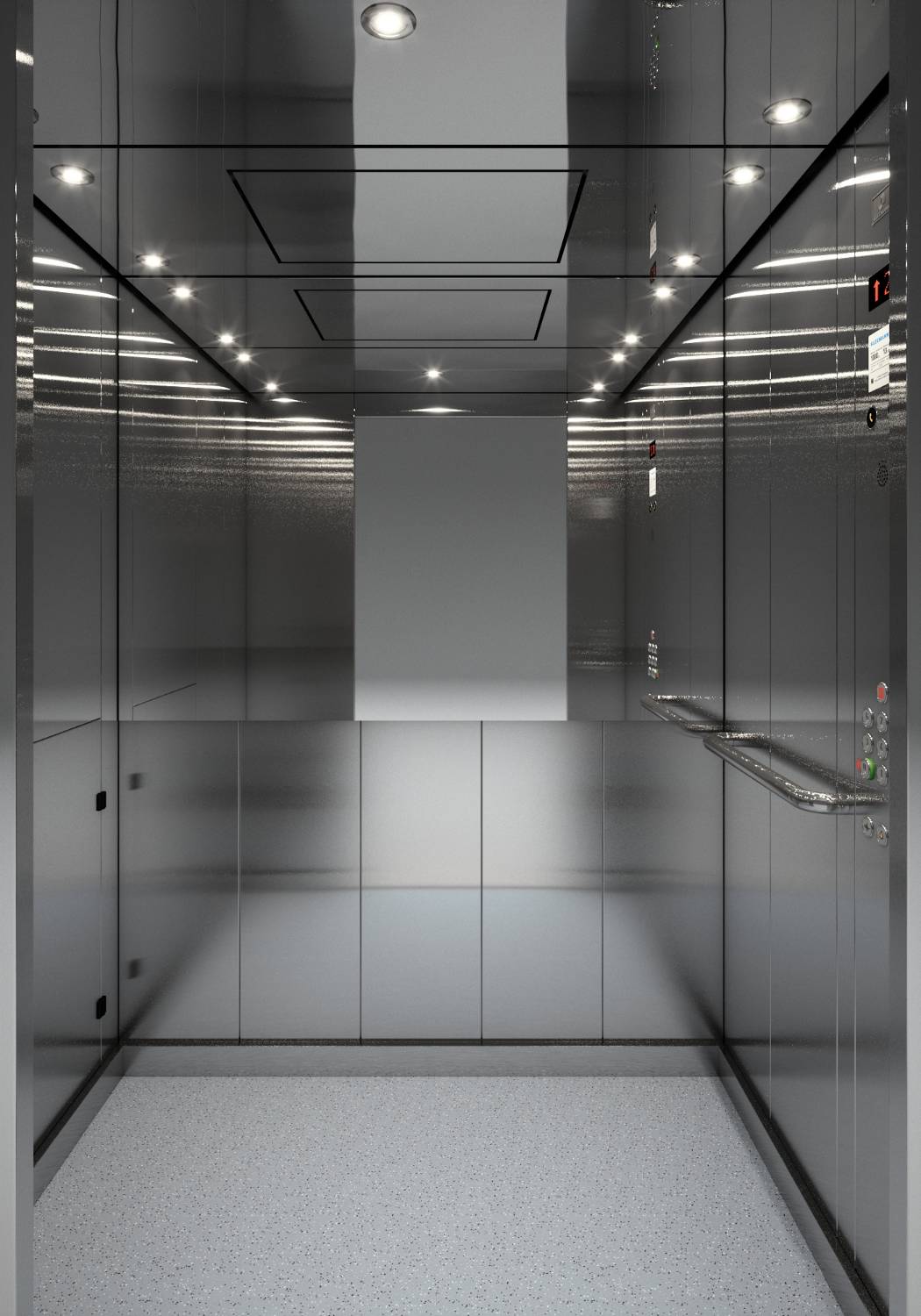

Firefighting Lift

Verified by manufacturer 17 days ago

SL630 Vulcan (eight person/ 630 kg)

Sheridan Lifts Variant:
Third party certifications:
  • CHAS

    CHAS

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • Constructionline Gold

    Constructionline Gold

    Certificate type

  • Alcumus SafeContractor

    Alcumus SafeContractor

    Certificate type

  • smas WORKSAFE

    smas WORKSAFE

    Certificate type

  • Constructionline

    Constructionline

    Certificate type

Range of passenger lifts compliant with EN 81-72.

Jump to:
0161 203 6299 Website

Application

Passenger lift where firefighting (EN 81-72) compliance is required.

Description

Range of passenger lifts compliant with EN 81-72.


Features and benefits:

  • 630, 800 and 1000 kg loading available (8, 10 and 13 passengers respectively).
  • Travel up to 65 m/ 18 floors.
  • Automatic opening.
  • Machine room-less (MRL).
  • Variable voltage variable frequency lift drive; 630 and 800 kg models are gearless).
  • Contract speed: 1.0–1.6 m/s.
  • Design service available.
  • Standard, anti-vandal and evacuation models also available, specified separately.


Compliance:

  • EN 81-20.
  • EN 81-28.
  • EN 81-50.
  • EN 81-58.
  • EN 81-70.
  • EN 81-72.

General information

Length

1400 mm

2100 mm

Manufacturer guidance

Car internal dimensions.

Width

1100 mm

1300 mm

Manufacturer guidance

Car internal dimensions.

Uniclass

Ss_80_50_60_26 Electric passenger and goods-passenger lift systemsPrimary

Specification data - Electric passenger and goods-passenger lift systems

System performance

To EN 81-20; EN 81-28; EN 81-50; EN 81-58; EN 70 plus EN 81-72.

Lift type

Passenger lift, firefighting.

Drive space

Machine room-less (MRL).

Lift components

As below plus firefighting hatch and ladder to EN 81-72.

Electrical supplies to firefighters' and evacuation lifts

-

Primary source

Manufacturer's standard.

Secondary source

-

Manufacturer guidance

Consult manufacturer for options and insert requirements or omit.

Door arrangement

Single entrance (front only).

Opposite front and rear entrances.

Front and side entrances (adjacent).

Traction drive

Gearless.

Drive position

MRL.

Speed control

Variable voltage variable frequency.

Control of lift drive

Manufacturer's standard.

Roping

-

Type

Manufacturer's standard.

Arrangement

Manufacturer's standard.

Factor

Manufacturer's standard.

Compensation

Manufacturer's standard.

Lift shaft and machine room cabling and containment

-

Cable type

Manufacturer's standard.

Containment

Manufacturer's standard.

Rewireable installation

Manufacturer's standard.

Concealed installation

Required.

Electrical identification

Manufacturer's standard.

Capacity

Eight person (630 kg).

Clear opening

900 x 2000 mm.

Manufacturer guidance

Car entrance type: Automatic two-panel side opening.

Car size / Capacity (w x d)

1100 x 1400 mm.

Car

-

Manufacturer guidance

Insert height requirement, up to 2400 mm.

Shaft type

-

Manufacturer guidance

Consult manufacturer for options and insert requirements.

Shaft

-

Manufacturer guidance

Insert requirements and drawing/ schedule reference.

  • Pit depth (minimum): 1250 mm.
  • Headroom (minimum): 3400 mm (to the underside of the lifting facility).
  • Car well (minimum): 1700 x 1800 mm.

Walls

-

Manufacturer guidance

Consult manufacturer for options and insert requirements.

Flooring

-

Manufacturer guidance

Consult manufacturer for options and insert requirements.

Ceiling

-

Manufacturer guidance

Consult manufacturer for options and insert requirements.

Lighting

-

Manufacturer guidance

Consult manufacturer for options and insert requirements.

Handrail

-

Manufacturer guidance

Consult manufacturer for options and insert requirements or omit.

Mirror

-

Manufacturer guidance

Consult manufacturer for options and insert requirements or omit.

Car control buttons

Round.

Landing buttons

Round.

Panel configuration

-

Manufacturer guidance

Consult manufacturer for options and insert requirements.

Control panel finish

-

Manufacturer guidance

Consult manufacturer for options and insert requirements.

Landing display

-

Manufacturer guidance

Consult manufacturer for options and insert requirements.
