Frameless cladding system offering up to two hours fire protection for structural steel.

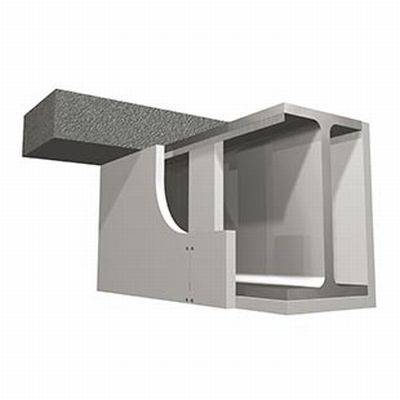

A structural steel, frameless cladding system that offers up to 2 hours fire protection to universal column and beam sections and many joist sections, portal frames and castellated beam sections. It can be used in any type of building where an encasement is required to structural steelwork.
The Glasroc FireCase s lining provides a smooth, robust surface, and can be left unfinished if required. The boards, however, can be plastered or painted and the surface can be tiled using conventional tile adhesive without pre-treatment.
Partitions and wall linings can be fixed directly to the Glasroc FireCase s cladding as long as:
Where these criteria are not met, the partition framing must be suitably fixed to the structural steel section through the Glasroc FireCase s cladding. Where the partition abuts the web of the structural steel, a suitable steel nogging must be provided.
Where steel section web dimensions exceed 600 mm, additional support may be required for the cladding – contact the British Gypsum Drywall Academy Advice Centre for guidance.
Not suitable for use in areas subjected to continuous damp or humid conditions.
|Extent of protection to structural members|
Four sided protection to steel columns
Three sided protection to steel columns incorporating steel angles
Three sided protection to steel beams incorporating steel angles
Three sided protection to steel columns and beams incorporating Glasroc FireCase s soldiers
Sizes and spacing of intermediate backing strips/ noggings/ metal angles and fixings as recommended by British Gypsum
15 mm Glasroc F FireCase
20 mm Glasroc F FireCase
25 mm Glasroc F FireCase
30 mm Glasroc F FireCase
35 mm Glasroc F FireCase – 20 mm plus 15 mm
40 mm Glasroc F FireCase – 20 mm plus 20 mm
45 mm Glasroc F FireCase – 25 mm plus 20 mm
50 mm Glasroc F FireCase – 25 mm plus 25 mm
Gyproc Impluse staples
Gyproc Firecase Screws – ___ mm long
Taped seamless finish
Skim coat plaster finish
To receive ceramic tiles
Rigid beads/ stops
Extent of protection to structural members:
